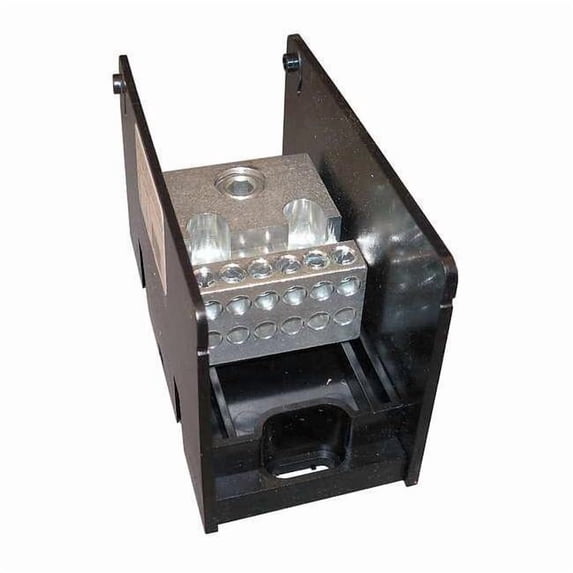

Hero image 0 of Mersen Power Distr Block,Al,1000V AC/DC MPDB69151, 0 of 1

Mersen Power Distr Block,Al,1000V AC/DC MPDB69151

(No ratings yet)

Key item features

Body/Insulating Material:GFPC
Hex/Screw Size & Type (Primary):11/16-16 x .88
Hex/Screw Size & Type (Secondary):5/16-24 x .38
Hex/Screw Size & Type (Primary):11/16-16 x .88
Hex/Screw Size & Type (Secondary):5/16-24 x .38
Hole Diameter (Primary):0.75 in
Hole Diameter (Secondary):0.27 in
Housing Color:Black
Housing Material:GFPC
Includes:Polycarbonate Safety Covers
Number of Openings per Pole (Primary):1
Number of Poles:1
Power Distribution Block Design:Open
Primary Connections/Pole:1
Primary Wire Range (AWG):6 AWG to 350 MCM
Primary Wire Range:6 AWG to 350 kcmil
Product Height:3.55 in
Product Length:5.7 in
Product Width:2.73 in
Rated voltage AC UL:1000 V
Rated voltage DC UL:1000 V
RoHS Compliant:Yes
Standards:CSA Class 6228-01, UL 1953
Terminal Material:Aluminum
Torque Rating (Primary):350-#6 275
Torque Rating (Secondary):#4-#8 40; #10-#14 35
UL 94 Flammability Rating:V-0
Voltage Rating:600V AC/DC
Width:2.73 in
Wire Range (Primary):350-#6
Wire Range (Secondary):#4-#14

Specs

Brand
Mersen
Dimensions
3.55 x 2.73 x 4.00 in
Color
Multi
Count per pack
1
Weight
6 lb
Has written warranty
No

Current price is Now $99.72

You save $12.06

was $111.78

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives by Fri, May 29

Sold and shipped by The Hardware Online Specialist

4.537126325940212 stars out of 5, based on 1037 seller reviews(4.5)

Report an issue with this seller

Free 30-day returns

More seller options (1)

Starting from $99.71

About this item

Product details

Power Distribution Block, For Conductor Material Aluminum, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 6 AWG, For Line Copper Wire Size - Maximum 350 kcmil, Load Connections/Pole 12, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 4 AWG, Maximum Current - Copper Conductor 310 A, Maximum Voltage 1,000 V AC/DC, Mounting Type Surface Mount, Number of Poles 1, Overall Depth 3.55 in, Overall Length 5.7 in, Overall Width 2.73 in

Body/Insulating Material:GFPC
Hex/Screw Size & Type (Primary):11/16-16 x .88
Hex/Screw Size & Type (Secondary):5/16-24 x .38
Hex/Screw Size & Type (Primary):11/16-16 x .88
Hex/Screw Size & Type (Secondary):5/16-24 x .38
Hole Diameter (Primary):0.75 in
Hole Diameter (Secondary):0.27 in
Housing Color:Black
Housing Material:GFPC
Includes:Polycarbonate Safety Covers
Number of Openings per Pole (Primary):1
Number of Poles:1
Power Distribution Block Design:Open
Primary Connections/Pole:1
Primary Wire Range (AWG):6 AWG to 350 MCM
Primary Wire Range:6 AWG to 350 kcmil
Product Height:3.55 in
Product Length:5.7 in
Product Width:2.73 in
Rated voltage AC UL:1000 V
Rated voltage DC UL:1000 V
RoHS Compliant:Yes
Standards:CSA Class 6228-01, UL 1953
Terminal Material:Aluminum
Torque Rating (Primary):350-#6 275
Torque Rating (Secondary):#4-#8 40; #10-#14 35
UL 94 Flammability Rating:V-0
Voltage Rating:600V AC/DC
Width:2.73 in
Wire Range (Primary):350-#6
Wire Range (Secondary):#4-#14

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Brand

Mersen

Dimensions

3.55 x 2.73 x 4.00 in

Color

Multi

Accessories

Polycarbonate Safety Covers

Warranty

Warranty information

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
