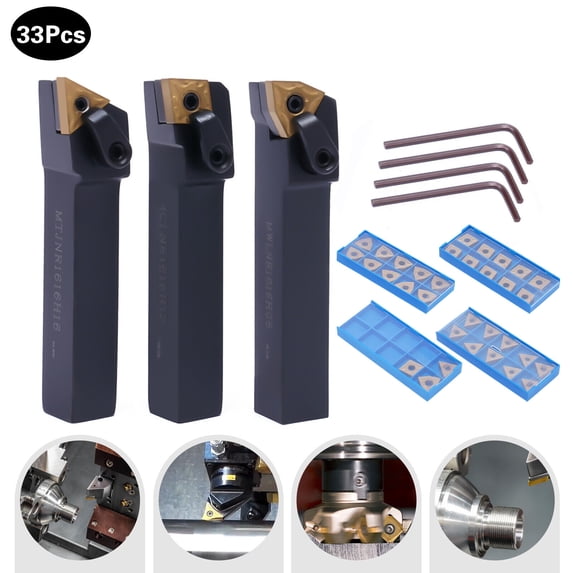

33 Pieces Lathe Indexable Carbide Turning Tool Holder Bit Set MTJNR1616H16
Key item features
- Good Customer Service: Communication is the best way to solve problems. If you encounter any problem after purchase, please contact us in time before opening or unpacking the box. We will do our best to solve the problem for you.
- Transparent Box Cover: The transparent storage box cover can make the internal insert blade model clear at a glance, thus making it easier to take.
- Hex Key: The four hex keys included in the package can help you replace the insert blade faster.
- It is suitable for lathe to process metal parts.
Specs
How do you want your item?
About this item
Product details
33 Pieces Lathe Indexable Carbide Turning Tool Holder Bit Set MTJNR1616H16 New
Description
Fine processing cannot be achieved without a good tool. This product is made of carbide and tungsten steel, providing high hardness and good wear resistance. 33 insert blades and 3 holders provide more options for your machining, so you don't need to worry about the lack of replacement insert blades. It will be your powerful assistant for machining steel parts.
Key Features
High-quality Material: The tool holders and insert blades are made of high-quality cemented carbide and tungsten steel with PVD coating, making the product have high hardness, low friction coefficient and good wear resistance.
Easy to Use: The simple product structure makes it unnecessary for complicated assembly steps. You just need to insert the blade into the holder to start using them.
Easy to Clean: The smooth product surface and simple product structure make it easy to clean. You can easily wipe off the dust and stains on the surface with a rag.
Sufficient Quantity: The product package contains 33 insert blades and 3 holders, which are sufficient and easy to replace.
Easy to Store: The four plastic storage boxes can store the inserts in different grids separately so that they are not worn and orderly.
Strong Compatibility: These inserts can be compatible with three types of holders: MWLNR1616H08, MCLNR1616H12 and MTJNR1616H16 to meet your various work needs.
High Precision: The delicate and compact insert blade has a smooth and sharp edge after fine processing, providing you with more high-precision processing.
Specification
Color: Gold, Black
Process: PVD Coating
Turning Tool Holder Model: MWLNR1616H08, MCLNR1616H12, MTJNR1616H16
Cutting Direction: Right Hand
Holder Material: Carbide and Tungsten Steel
Insert Material: Cemented Carbide
Gross Weight: 1kg/ 2.2 lbs
Net Weight: 0.8kg/ 1.76 lbs
Package Size: 16*12*5cm/ 6.3*4.72*1.97in
MTJNR1616H16:
Shank Diameter: 16*16 mm/0.63*0.63in
Overall Length: 100 mm/4 in
Main Direction: 93º
Shim: ST 1603
Pin: MCT513
Clamp: HL 1814
Screw: MCS625
Hex Key: L2.0 ,L3.0
Insert: TNMG 331
MWLNR1616H08:
Shank Diameter: 16*16 mm/0.63*0.63in
Overall Length: 100 mm/4 in
Main Direction: 95º
Shim: SW 0804
Pin: MCT617
Clamp: HL1814
Screw: MCS625
Hex Key: L2.5 , L3.0
Insert: WNMG 431
MCLNR1616H12:
Shank Diameter: 16*16 mm/0.63*0.63in
Overall Length: 100 mm/4 in
Main Direction: 95º
Shim: ST 1603
Pin: MCT513
Clamp: HL1814
Screw: MCS625
Hex Key: L2.0 , L3.0
Insert: TNMG 331
Package Included
3 x Lathe Indexable Carbide Turning Tool Holders
33 x Metal Indexable Carbide Turning Insert Blades
4 x Hex Keys
7 x Storage Boxes
