Hero image 0 of 4 Port DVI USB KVM Switch, 0 of 1

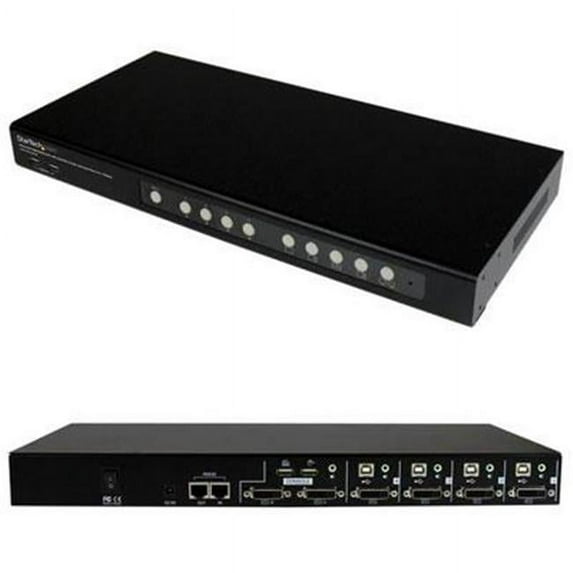

4 Port DVI USB KVM Switch
(No ratings yet)
Key item features
The 4-Port DVI KVM Switch with Quad-View Display lets you control 4 systems using a single peripheral set, with dual DVI console connections and multiple picture-in-picture display modes.
Features- Several display modes including: Quad-View, PAP, PIP and Full-View
- Supports HD resolutions up to 1920x1200
- Includes KVM Cables (DVI / USB / Audio)
- Integrated 2-port USB 2.0 hub
- Rack-mountable 1U design
- Front panel push-button and hot-key computer selection support
- 3.5mm stereo audio support
- Item Weight - 5.47 lbs.
- Audio - Yes
- Daisy-Chain - Yes
- KVM Ports - 4
- Multi-Monitor - No
- PC Interface - USB
- PC Video Type - DVI
- Rack-Mountable - Yes
- U Height - 1U
- Console Interface(s) - 2 - DVI-I (29 pin) Female, 2 - USB A (4 pin) Female, 1 - 3.5 mm Mini-Jack (3 Position) Female
- Host Connectors - 1 - DVI-I (29 pin) Female, 1 - USB B (4 pin) Female, 1 - 3.5 mm Mini-Jack (3 Position) Female
- Other Interface(s) - 2 - USB A (4 pin) Female, 2 - RJ-45 Female
- IP Control - No
- Maximum Cascaded Computers - 32
- Maximum Digital Resolutions - 1920x1200
- Maximum Number of Users - 1
- Port Selection Support - Push Button, Hotkeys, and OSD (On Screen Display)
- OS Compatibility - OS independent; No software or drivers required
- LED Indicators - 4 - PC Selection indicators, 4 - Display Mode indicators
- Center Tip Polarity - Positive
- Input Current - 1.8 A
- Input Voltage - 100 ~ 240 AC
- Output Current - 5 A
- Output Voltage - 12 DC
- Plug Type - M
- Power Source - AC Adapter Included
- Humidity - 0~90% RH (Non-Condensing)
- - SKU: ZX9ABND377
Specs
BrandEZGeneration
Weight3.77
Current price is USD$1,357.86
Price when purchased online
Out of stock
How do you want your item?
Out of stock
About this item
Product details
The 4-Port DVI KVM Switch with Quad-View Display lets you control 4 systems using a single peripheral set, with dual DVI console connections and multiple picture-in-picture display modes.
Features- Several display modes including: Quad-View, PAP, PIP and Full-View
- Supports HD resolutions up to 1920x1200
- Includes KVM Cables (DVI / USB / Audio)
- Integrated 2-port USB 2.0 hub
- Rack-mountable 1U design
- Front panel push-button and hot-key computer selection support
- 3.5mm stereo audio support
- Item Weight - 5.47 lbs.
- Audio - Yes
- Daisy-Chain - Yes
- KVM Ports - 4
- Multi-Monitor - No
- PC Interface - USB
- PC Video Type - DVI
- Rack-Mountable - Yes
- U Height - 1U
- Console Interface(s) - 2 - DVI-I (29 pin) Female, 2 - USB A (4 pin) Female, 1 - 3.5 mm Mini-Jack (3 Position) Female
- Host Connectors - 1 - DVI-I (29 pin) Female, 1 - USB B (4 pin) Female, 1 - 3.5 mm Mini-Jack (3 Position) Female
- Other Interface(s) - 2 - USB A (4 pin) Female, 2 - RJ-45 Female
- IP Control - No
- Maximum Cascaded Computers - 32
- Maximum Digital Resolutions - 1920x1200
- Maximum Number of Users - 1
- Port Selection Support - Push Button, Hotkeys, and OSD (On Screen Display)
- OS Compatibility - OS independent; No software or drivers required
- LED Indicators - 4 - PC Selection indicators, 4 - Display Mode indicators
- Center Tip Polarity - Positive
- Input Current - 1.8 A
- Input Voltage - 100 ~ 240 AC
- Output Current - 5 A
- Output Voltage - 12 DC
- Plug Type - M
- Power Source - AC Adapter Included
- Humidity - 0~90% RH (Non-Condensing)
- Operating Temperature - 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
The 4-Port DVI KVM Switch with Quad-View Display lets you control 4 systems using a single peripheral set, with dual DVI console connections and multiple picture-in-picture display modes.
Features- Several display modes including: Quad-View, PAP, PIP and Full-View
- Supports HD resolutions up to 1920x1200
- Includes KVM Cables (DVI / USB / Audio)
- Integrated 2-port USB 2.0 hub
- Rack-mountable 1U design
- Front panel push-button and hot-key computer selection support
- 3.5mm stereo audio support
- Item Weight - 5.47 lbs.
- Audio - Yes
- Daisy-Chain - Yes
- KVM Ports - 4
- Multi-Monitor - No
- PC Interface - USB
- PC Video Type - DVI
- Rack-Mountable - Yes
- U Height - 1U
- Console Interface(s) - 2 - DVI-I (29 pin) Female, 2 - USB A (4 pin) Female, 1 - 3.5 mm Mini-Jack (3 Position) Female
- Host Connectors - 1 - DVI-I (29 pin) Female, 1 - USB B (4 pin) Female, 1 - 3.5 mm Mini-Jack (3 Position) Female
- Other Interface(s) - 2 - USB A (4 pin) Female, 2 - RJ-45 Female
- IP Control - No
- Maximum Cascaded Computers - 32
- Maximum Digital Resolutions - 1920x1200
- Maximum Number of Users - 1
- Port Selection Support - Push Button, Hotkeys, and OSD (On Screen Display)
- OS Compatibility - OS independent; No software or drivers required
- LED Indicators - 4 - PC Selection indicators, 4 - Display Mode indicators
- Center Tip Polarity - Positive
- Input Current - 1.8 A
- Input Voltage - 100 ~ 240 AC
- Output Current - 5 A
- Output Voltage - 12 DC
- Plug Type - M
- Power Source - AC Adapter Included
- Humidity - 0~90% RH (Non-Condensing)
- - SKU: ZX9ABND377
