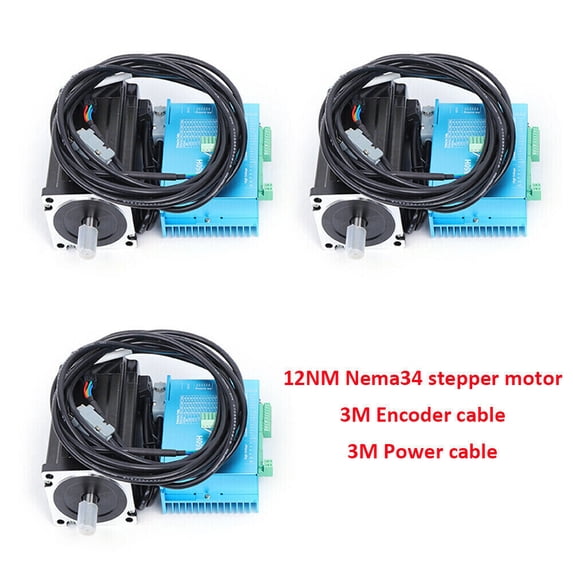

NEW 3 Axis Nema 34 12Nm Closed Loop Stepper Hybrid Servo Motor Driver Kit

Specification:
Driver Model: HBS86H
Voltage: AC20-80V/DC24-100V
Phase current: 8A/Pha (peak current)
Subdivision: 2-256 subdivision Maximum 51200 steps / lap
Processor: 32-bit DSP digital
Pulse voltage: 5V-24V signal compatible
Response frequency: up to 200KHz
Pulse mode: single pulse (default) double pulse (software adjustable)
Cooling Method: fan cooling
Motor Model: 86HBS120
Phase Current: 5.6A/Pha
Torque: 12N.m
Shaft Diameter: 14mm
Shaft Length: 40mm
Step Angle:1.8°
Step Angle accuracy: ±5%
Surface Temperature: 80℃ or less (rated current)
Motor Line: 3m
Encoder Line: 3m

Features:
HBS86H adopts the latest dedicated motor control DSP chip and vector closed-loop control technology to completely overcome the problem of open-loop stepping motor lost step, and at the same time significantly improve the high-speed performance of the motor, reduce motor heating and reduce motor vibration, improve machining speed and accuracy, and reduce Machine energy consumption. When the motor is continuously overloaded, the driver will output an alarm signal in time, which has the same reliability as the AC servo system. HBS86H is equipped with 86 series closed-loop stepping motors, which is convenient for traditional stepping system upgrades. The cost is only 50% of the AC servo system.

Package Include:
3x HBS86H driver
3x 86HBS120 motor
3x 3m motor line
3x 3m encoder line
