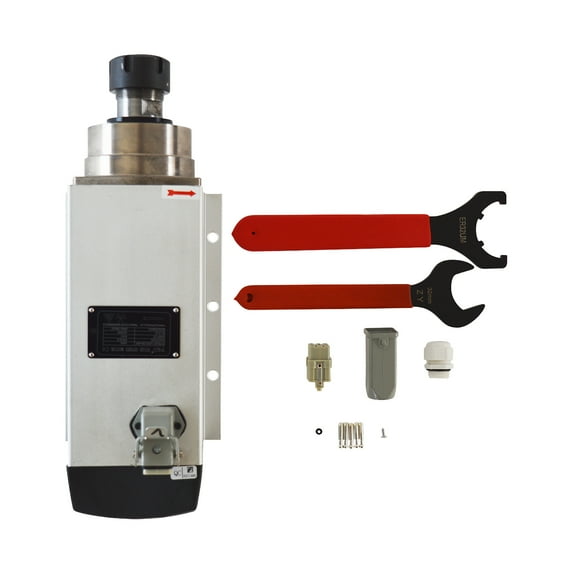

EQCOTWEA Square Spindle Motor 220V with Flange for Material Engraving 4.5KW

PARAMETERS:
Voltage: 220V
Power: 4.5kw(6HP)
Current: 20.45A
Operating Frequency: 300Hz
Collet Nut: ER32
Clamping Range: 0.118"-0.787"(3mm-20mm)[Standard with 6mm collet, if you need other sizes please contact us]
Clamping Diameter of Collet: 0.236"(6mm)
Motor Speed: 18000rpm
Cone Hole Beat: 2UM
Cooling Mode: Fan Cooling
Lubrication Mode: Grease Lubrication
Fuselage Material: Pure Aluminium
Product Size: 14.8"*5.4"*6.1"(37.5cm*13.7cm*15.5cm)
Net weight: 29.1LB(13.2kg)

ITEMS INCLUDED: 053288
EQCOTWEA Square Spindle Motor 220V with Flange for Material Engraving
Spindle Motor *1
Fork Wrench *1
Collet Wrench *1
NOTE: Spindle motor must be equipped with frequency converter.Set up frequency converter correctly according to machine requirement. The item is not included frequency converter.

Matters Need Attention：
Must match the drive spindle chosen correctly according to the electric spindle nameplate good debugging power, voltage and frequency.
Set the frequency converter should be set command channel, and then set the display channel, and finally set the parameters. When setting parameters, be sure that the reference frequency, the frequency of the three highest rated frequency and consistency.
The spindle is generally clockwise in the wrong direction, the drive can change settings or swap any two rotating wire the inverter output UVW terminal on.
In general, water-cooled spindle surface temperature and ambient temperature greater than 20 degrees, the heat can be considered a spindle; when air-cooled spindle surface temperature greater than ambient temperature of 30 degrees, can be identified as the main heat seriously, immediately shut down cooling, a check.
