Hero image 0 of Flint & Walling Booster Pump,3 HP,1 Phase, 230V AC CJ103201, 0 of 1

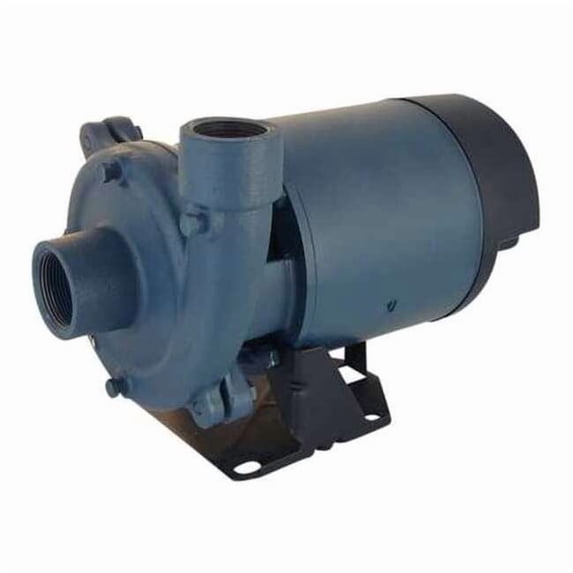

Flint & Walling Booster Pump,3 HP,1 Phase, 230V AC CJ103201

(No ratings yet)

Key item features

Manufacturer Warranty Length:1 yr
Manufacturers Warranty Length:1 yr
Max. Case Pressure:100 psi
Max. Pressure - Pumps:45 psi
Max. Pressure:45 psi
Maximum Feet of Head:105 ft of head
Maximum Flow Rate:80 gpm
Maximum Media Temperature:200 Degrees F
Maximum RPM:3,450 RPM
Minimum Flow Rate:1.5 gpm
Motor Type:ODP
Mounting Orientation:Horizontal
Nameplate Voltage:230V AC
Nominal Voltage:115/230V AC
NSF Certifications for Food and Drinking Water:NSF 372
Phase - Pumps:1
Phase:Single
Power Source:Corded Electric
Pressure Boost - Maximum:45 psi
Pressure Boost (Maximum):45 psi
Priming:Manual
Pump Casing Material:Cast Iron
Pump Housing Material:Cast Iron
Pump Technology:Centrifugal
Pumping Application:City Water Mains, Private Water Systems
Revolutions Per Minute - Maximum:3,450 RPM
Voltage - Pumps:115/230V AC
Voltage:115/230
Wetted Material:416 Stainless Steel, Brass, Bromine, Buna-N, Cast Iron, Silicon Carbide
Wetted Materials:Brass,CI,416 SS,Buna N,Carbon,Silicon Carbide,BR
Width:8 1/4 in

Specs

Gallons per minute
110 GPM
Horsepower
2 HP
Plumbing pump type
Booster Pump
Power type
Electric
Brand
Flint & Walling
Volts
230 V

Current price is $1,601.39

Price when purchased online

Free shipping
Free 30-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

3-Year Plan - $59.00

4-Year Plan - $77.00

How do you want your item?

Ships to

Arrives by Wed, May 20

Sold and shipped by SIM Supply Inc

4.337220762155059 stars out of 5, based on 6088 seller reviews(4.3)

Report an issue with this seller

Free 30-day returns

About this item

Product details

Booster Pump, Phase Single, Pump Housing Material Cast Iron, Motor Enclosure Open Dripproof, Horsepower 3 hp, Nameplate Voltage 230V AC, Flow Rate @ 10 psi 110 gpm, Flow Rate @ 20 psi 86 gpm, Flow Rate @ 30 psi 77 gpm, Flow Rate @ 40 psi 57 gpm, Shut Off Pressure (Maximum) 45 psi, Compatible Intake Pipe Size 1 1/2 in, Compatible Discharge Pipe Size 1 1/4 in, Intake Type NPT, Mounting Orientation Horizontal, For Use With Potable Systems No, Amps 13.5 A, Case Pressure (Maximum) 100 psi

Manufacturer Warranty Length:1 yr
Manufacturers Warranty Length:1 yr
Max. Case Pressure:100 psi
Max. Pressure - Pumps:45 psi
Max. Pressure:45 psi
Maximum Feet of Head:105 ft of head
Maximum Flow Rate:80 gpm
Maximum Media Temperature:200 Degrees F
Maximum RPM:3,450 RPM
Minimum Flow Rate:1.5 gpm
Motor Type:ODP
Mounting Orientation:Horizontal
Nameplate Voltage:230V AC
Nominal Voltage:115/230V AC
NSF Certifications for Food and Drinking Water:NSF 372
Phase - Pumps:1
Phase:Single
Power Source:Corded Electric
Pressure Boost - Maximum:45 psi
Pressure Boost (Maximum):45 psi
Priming:Manual
Pump Casing Material:Cast Iron
Pump Housing Material:Cast Iron
Pump Technology:Centrifugal
Pumping Application:City Water Mains, Private Water Systems
Revolutions Per Minute - Maximum:3,450 RPM
Voltage - Pumps:115/230V AC
Voltage:115/230
Wetted Material:416 Stainless Steel, Brass, Bromine, Buna-N, Cast Iron, Silicon Carbide
Wetted Materials:Brass,CI,416 SS,Buna N,Carbon,Silicon Carbide,BR
Width:8 1/4 in

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Gallons per minute

110 GPM

Horsepower

2 HP

Plumbing pump type

Booster Pump

Power type

Electric

Warranty

Warranty information

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
