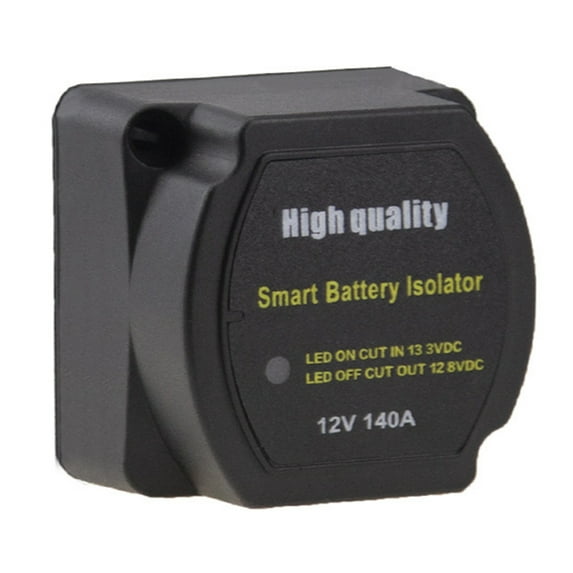

Dual Battery Isolator Kit 12V 140A IP65 Waterproof Split Charge Relay Automatic Car Battery Relay with Surge Protection Car Accessories for Truck SUV ATV UTV Boat

Parts List:
1x Dual Battery Isolator
2 x Long Screw
2 x Short Screw
1 x Gasket

Highlight description:
[Dual Battery Isolator] Dual battery isolator can charge both batteries at the same time and then isolate them from each other when the vehicle is turned off, ensuring that your starter battery is always charged and ready.

[Voltage Sensitive Relay] The dual battery isolator kit features 12V 140A voltage sensitive relay isolator, voltage sensitive relay will cut in preset voltage to ensure your primary battery is always charged and ready to start your car.

[IP65 Waterproof] Car battery relay is waterproof up to IP65, which makes it can be used even in dusty, wet and unexpected extreme weather environments. The shell is made of premium ABS, anti-impact, strong and durable.

[Compact Size] The dual battery isolator has compact size, about 68 x 52 x 68mm/2.68 x 2.05 x 2.68 inch. A perfect fit under the hood to get close to your dual batteries. Compact size also makes it easy to put in your tool bags.

[Wide Application] Split charge relay is suitable for most 12V 4WD marine, truck, caravan, SUV ATV UTV, etc. The package includes all the parts needed for complete installation, easy to install.

Detailed description:
Specification:
Product name: Dual Battery Isolator
Material: ABS
Size: 68 x 52 x 68mm/2.68 x 2.05 x 2.68 inch
Continuous current: 80-100A
Instantaneous current: 125A
Consumption current - Charge: 240mA
Current consumption - standby: 8mA
Disengagement delay: 5-10 seconds
Recommended fuse: 80Amp
Power stud: M6 copper screw nut
Surge protection: built-in
Application: most 12V 4WD marine, truck, caravan, SUV ATV UTV, etc.

Note：
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
2. Please allow slight dimension difference due to different manual measurement. Thank you for your understanding.
