Great question—people use these terms interchangeably, but they’re different.

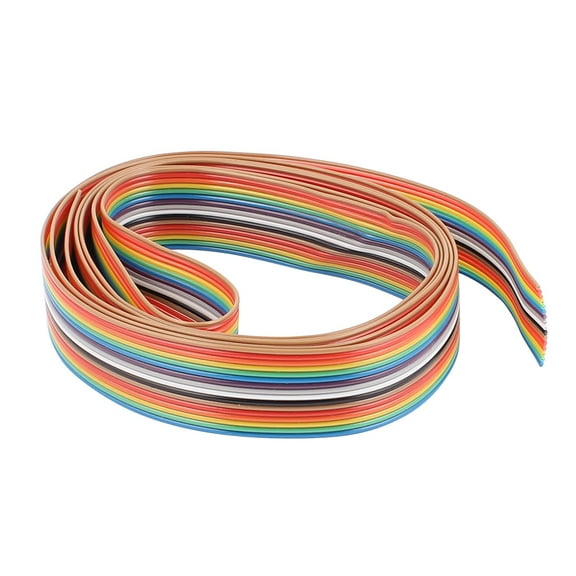

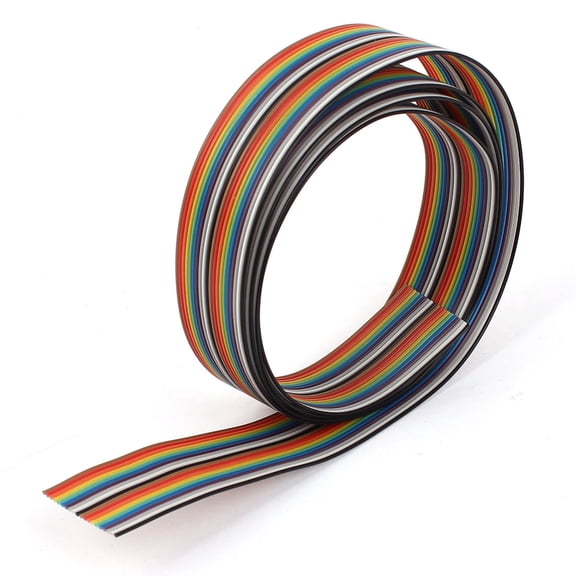

• Ribbon cables (IDC style): These are multiple insulated wires bonded side-by-side, often in a flat, multicolored “rainbow.” They’re a bit thicker and typically used with header/IDC connectors. Common pitches include around 1.27 mm.
• Flex cables (FFC/FPC): These are ultra-thin conductors laminated on a flexible film. You’ll see specs like pin count (e.g., 6–60 pins), pitch (e.g., 0.5 mm, 1.0 mm, 1.25 mm), length, and orientation (A/B type or forward/reverse). They typically mate with ZIF/LIF-style connectors in devices like displays and laptops.

Choosing tip: Match your device’s pin count, pitch, length, and contact orientation listed in the product specs before ordering.

It depends on the cable style and your application. Flat flex (FFC/FPC) is designed to bend and route in tight spaces, while multicolored ribbon jumpers are better for gentle curves.

• Use smooth curves: Avoid sharp creases or hard folds that can stress conductors.
• Allow slack: A slightly longer cable can make a gentler bend possible.
• Avoid twisting: Keep the cable flat as it routes to the connector.
• Support the bend: Light strain relief or low-tack tape can reduce movement at connectors.
• Check your device: If there’s a hinge or constant motion, look for product specs that fit the space and movement, and follow your device maker’s guidance.

These practices can help, but suitability varies by cable construction and use conditions.

Flat flexible cables (FFC/FPC) are built to be thin and pliable, making them handy for tight, low-profile runs inside electronics.

• Thin profile: Options on this page show fine pitches (like 0.5 mm) and slim laminates that fit narrow gaps and low-clearance areas.
• Tight routing: They handle smooth bends around corners better than bulkier wire bundles, which can help in small enclosures.
• Orientation choices: A/B type and forward/reverse options help align contacts without twisting the cable.
• Length variety: From short jumpers to longer runs, lengths let you create gentle curves instead of sharp folds.

The actual flexibility you’ll get depends on pitch, thickness, length, and how the cable is installed. Aim for smooth curves rather than creases.

If a traditional multicolored ribbon isn’t a fit, you’ve got options:

• Flat flexible cables (FFC/FPC): Ultra-thin and low-profile, with various pin counts, pitches, and contact orientations. Useful when space is tight or you need a flat run to a ZIF/LIF connector.
• Discrete wire or round bundles: Better for environments where mechanical robustness is a priority. They take more space but can be easier to route through circular openings.
• Board-to-board connectors: When two PCBs are close, a direct connector can reduce cabling altogether.

On this page, you’ll find many FFC/FPC options that can replace bulkier wiring in compact builds. Compare specs like pins, pitch, and length to fit your setup.

Start with your connector, then match the cable:

1. Pin count: Count the contacts on your device’s connector and match that number exactly.
2. Pitch: Measure center-to-center spacing of the contacts (common pitches include 0.5 mm, 1.0 mm, 1.25 mm). Pick a cable with the same pitch.
3. Orientation: Look for A/B type or forward/reverse so the contact side faces correctly at both ends.
4. Length: Choose a length that allows a smooth, gentle route—avoid sharp bends.
5. Connector style: Make sure your device uses a compatible ZIF/LIF socket style.

On product pages, use the specs and filters to narrow by pin count, pitch, and length. When in doubt, check your device documentation for exact connector details.
