Gauge blocks are essential tools in precision measurement because they provide highly accurate reference lengths. Made from hardened steel or alloy, these blocks can be stacked to create a precise length for calibrating and inspecting measuring instruments like micrometers and calipers. Their accuracy helps machinists and engineers maintain tight tolerances in manufacturing processes. Using gauge blocks ensures consistency and reliability in measurements, which is crucial for quality control in industrial and scientific applications.

Gauge blocks stick together due to a phenomenon called 'wringing.' This happens when two ultra-flat, polished surfaces come into contact, creating a thin layer of air and molecular attraction between them. The blocks adhere tightly without any adhesive, which helps maintain precise lengths when stacked. Proper cleaning and handling are important to ensure the blocks wring correctly and avoid dirt or oil interfering with this effect.

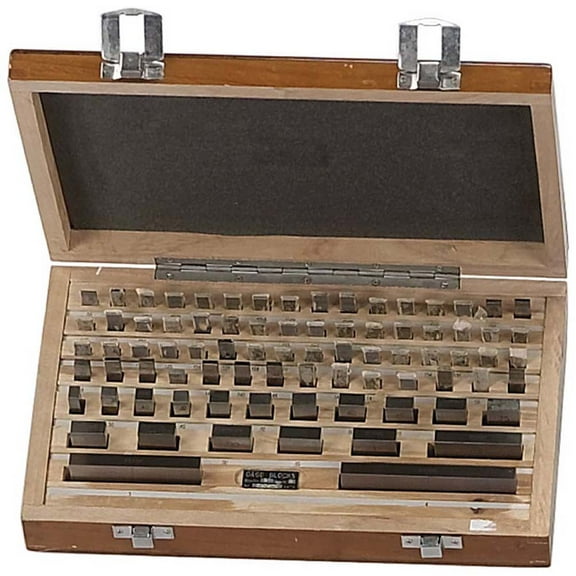

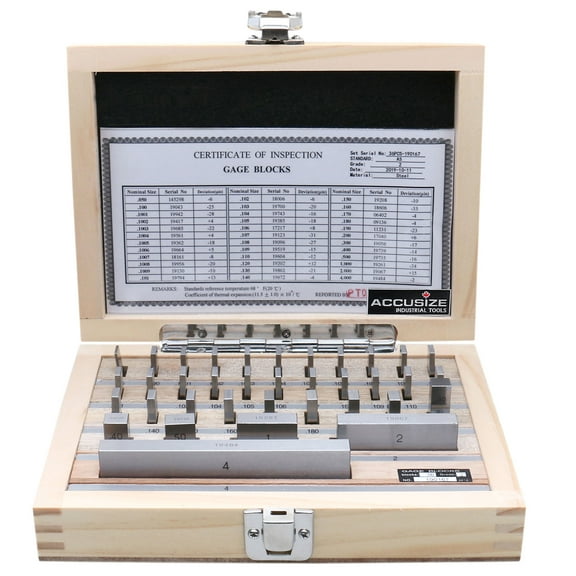

Choosing the right size of gauge blocks depends on the measurement range you need. Gauge blocks come in sets with various thicknesses, commonly including 1, 2, and 3-inch blocks or metric equivalents. Consider the sizes that will allow you to combine blocks to reach the lengths you frequently measure. Also, think about the grade of precision required for your tasks, as higher-grade blocks offer tighter tolerances. Selecting a set with holes can be helpful for easy handling and storage.

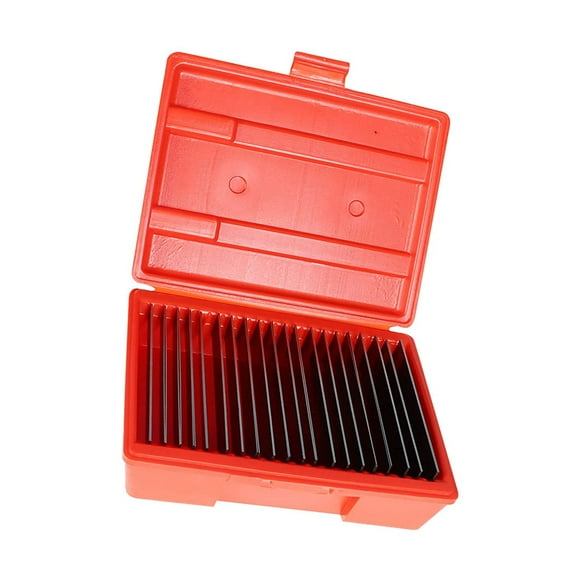

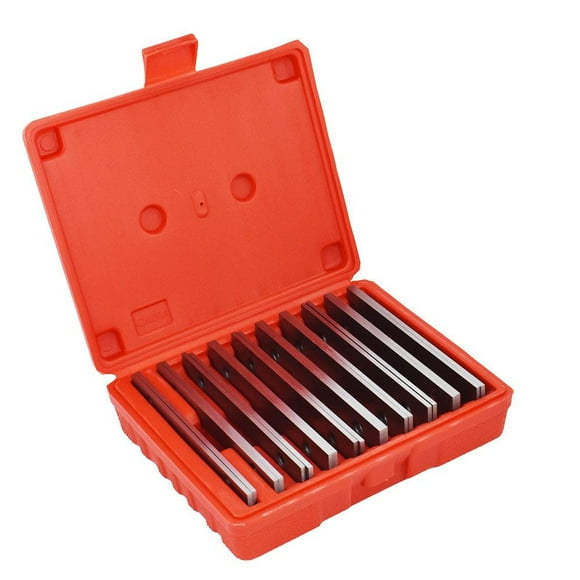

Proper care and storage of gauge blocks are key to maintaining their accuracy. Always handle them with clean, dry hands or gloves to avoid oils and dirt. After use, clean the blocks with a lint-free cloth and a suitable cleaning solution to remove any contaminants. Store them in a protective case, ideally with individual slots or holes to prevent damage and corrosion. Keeping them in a stable environment away from moisture and extreme temperatures will help preserve their precision over time.

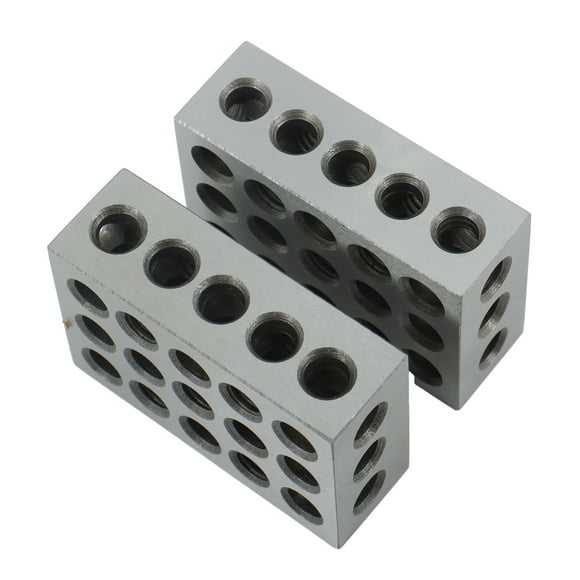

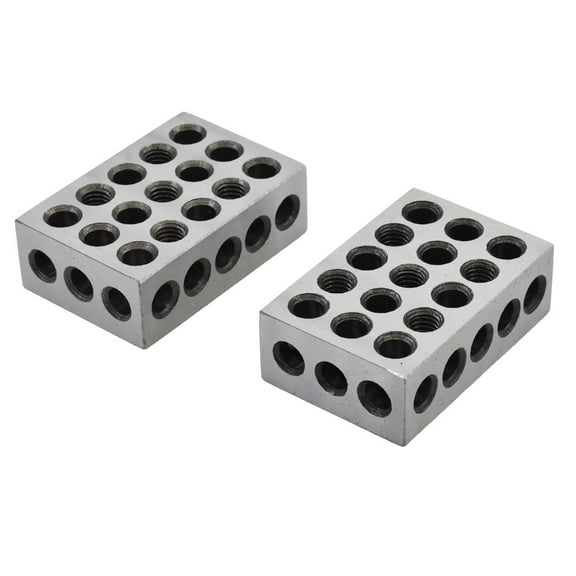

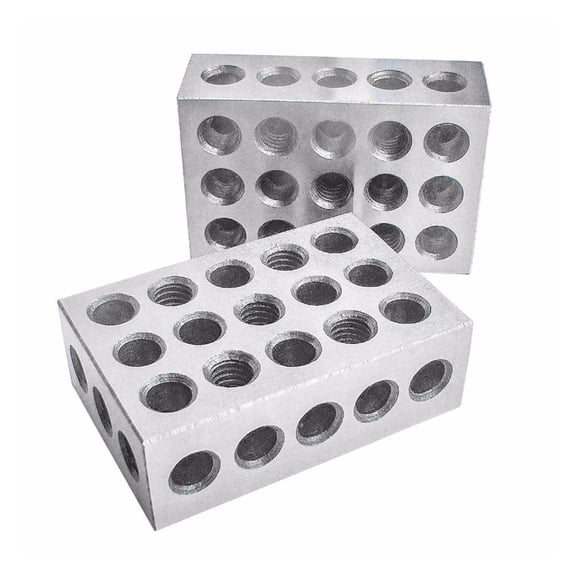

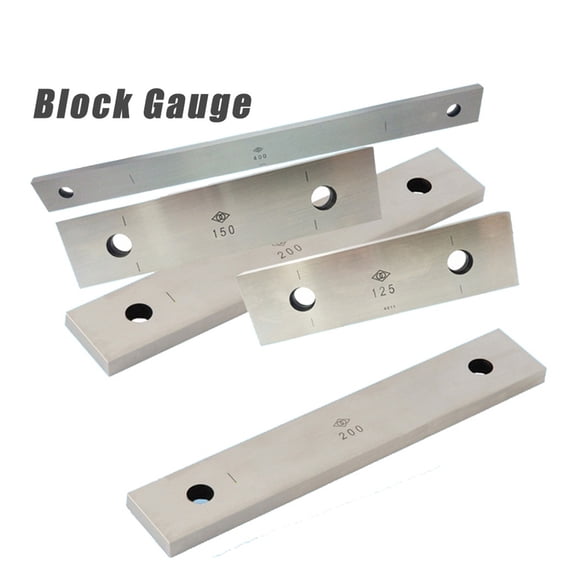

Holes in gauge blocks serve practical purposes. They make it easier to handle the blocks, especially when wringing them together or separating them without causing damage. The holes also allow for secure storage in cases or racks designed to hold the blocks firmly in place. Additionally, holes can reduce the block's weight slightly, which may be beneficial when using larger sets. This design feature helps improve usability and longevity of the gauge blocks.
