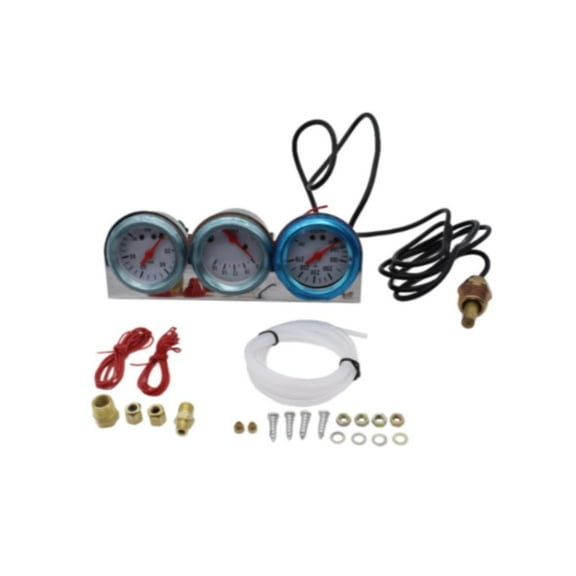

Installing a 3-in-1 gauge that measures oil pressure, voltage, and temperature involves several steps:

1. Gather tools: You‚'ll need basic hand tools, wiring connectors, and possibly a drill for mounting.
2. Disconnect battery: Always disconnect your vehicle's battery before starting electrical work.
3. Mount the gauge: Choose a visible spot on your dashboard or console and securely mount the gauge.
4. Connect sensors: Attach the oil pressure sensor, temperature sensor, and voltage wires according to the gauge's wiring diagram.
5. Connect power and ground: Wire the gauge to a switched power source and a good ground point.
6. Test: Reconnect the battery and start the engine to verify the gauge readings are working properly.

If you're not comfortable with vehicle electrical systems, consider professional installation to ensure safety and accuracy.

Oil pressure readings can vary depending on your vehicle, but generally:

• At idle: Oil pressure typically ranges from 10 to 30 PSI.
• At normal driving speeds: It usually falls between 30 to 60 PSI.
• High RPMs: Pressure may increase slightly but should remain steady.

Consult your vehicle's manual for specific pressure ranges. Consistently low or high readings could indicate an issue with your oil system or gauge sensor, so monitoring these values helps maintain engine health.

Signs your oil pressure gauge might be faulty include:

• Fluctuating or erratic readings: Gauge needle jumps or swings wildly without engine changes.
• Constant low or high readings: Gauge stuck at one extreme regardless of engine status.
• No response: Gauge doesn't move when engine is started.

To troubleshoot, check wiring connections for damage or looseness, inspect the sensor for faults, and consider testing the gauge with a multimeter. If problems persist, replacing the gauge or sensor may be necessary.

Mechanical and digital oil pressure gauges differ mainly in how they measure and display pressure:

• Mechanical gauges use a direct physical connection, like a Bourdon tube, to move the needle based on pressure changes. They don't require electrical power and offer a traditional analog display.
• Digital gauges use electronic sensors to convert pressure into electrical signals, showing readings on an LCD or LED screen. They often provide more precise measurements and additional features like alarms or multiple readings in one unit.

Choosing between them depends on your preference for style, accuracy, and additional functions.

Yes, in many cases you can replace the oil pressure sensor separately without changing the entire gauge kit. Sensors can wear out or fail over time, causing inaccurate readings.

• Make sure to get a sensor compatible with your specific gauge model and vehicle.
• Replacement usually involves disconnecting the old sensor from the engine block and wiring, then installing the new one in the same location.
• After replacement, verify the gauge reads correctly during engine operation.

If you're unsure about compatibility or installation, consulting a professional mechanic or the gauge manufacturer's instructions can help ensure proper replacement.
