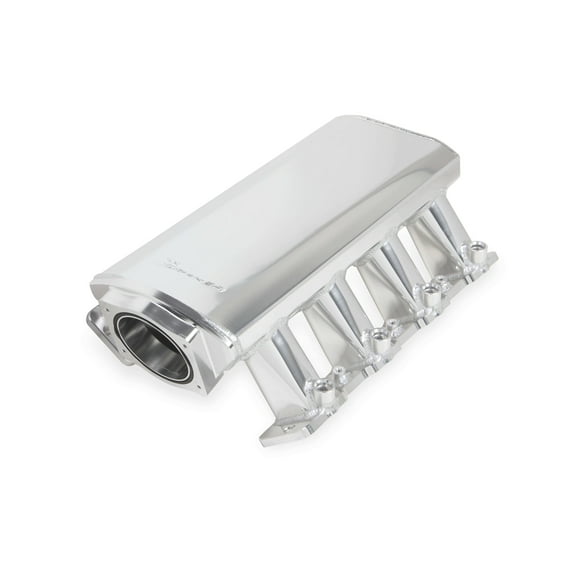

Holley Sniper EFI 830041-1 Sniper EFI Sheet Metal Fabricated Intake Manifold

Sheet Metal Fabricated Intake Manifold LS7 102mm Throttle Body opening + Fuel Rail Kit Silver with Sniper EFI logo;

Fabricated from 1/8 inch 6061 aluminum sheetmetal in a black finish with Sniper EFI Logo on the top. Designed for a single front mount style throttle body up to 102mm and EV1 style injectors. With 4.921 in (125mm) runner length and an ample plenum, this manifold has a power band of 2500-7000 RPM. Suitable for naturally aspirated and forced induction applications. Front height is 7.362 inch front and rear 6.850. Has provisions for (3) 1/8 in-28BSPT & (1) 1/4 in-19BSPT vacuum ports on the underside and has a MAP sensor provision on the rear of the plenum. Includes manifold, o-ring intake gaskets, intake manifold bolts and washers, vacuum fittings, fuel rails, fuel rail fittings, crossover line, fuel rail stands, stand hardware, and instructions. Can be used with factory MAP sensor #12592525 or Sniper #870021 Please note that this intake is designed for use with factory cylinder heads, some aftermarket heads may result in port misalignment;
