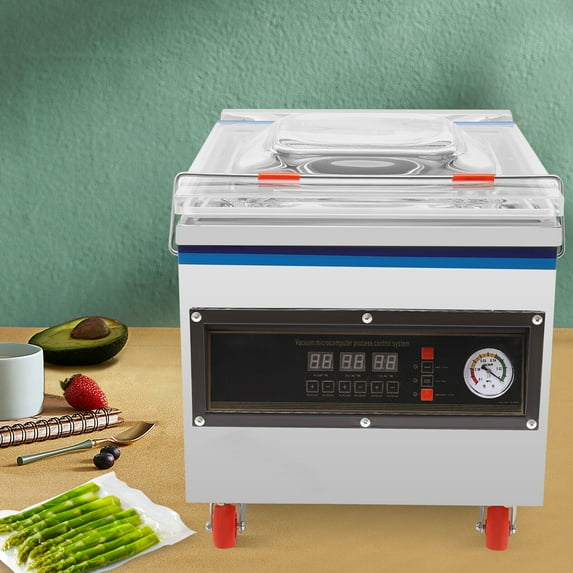

DZ- 320 Electric Vacuum Packing Machine Chamber Sealer Packing Machine 800W

Are you still worried about the difficulty of storing food? Then don't miss our vacuum packaging machine, it can handle various types of food, vacuum them, extend their shelf life, reduce the speed of oxidation and decay, and make your life healthier. It is suitable for vacuum packaging snacks, fruits, pickles, daily use, tea shops, braised food stores, fresh food stores, bakeries, dry goods stores, factory assembly lines, supermarkets, and shopping malls. It applies to glossy bags, grain bags, kraft paper bags, tin foil bags, and yin and yang bags.

How to Use

1. Connect the electricity.

2. Set vacuum time, sealing time, and cooling time through the panel.

3. Put the materials needed to be vacuumed into the vacuum bag and put it into the vacuum chamber.

4. Press the lid for 1-2 seconds, if it is not sucked automatically, lift your hands and press again.

5. The lid will lift automatically when the cooling process is finished.

Specification

Model: ZK-320

Color: Silver

Material: Stainless Steel, Acrylic

Process: Mirror Treatment, Welding, Polishing, Spray Painting

Vacuum Pump Type: 2L Pure Copper Vacuum Pump

Power Type: Corded Electric

Plug Type: US Standard

Voltage: 110V

Power: 360W

Sealing Width: 8mm/0.315in, 10mm/0.39in

Vacuum Time: 1-99s (Depending On the Thickness of the Material)

Recommended Vacuum Time: 15-35s

Sealing Time: 0.1-9.9s (Depending On the Thickness of the Material)

Recommended Sealing Time: 1.5-2.5s

Cooling Time: 0.1-9.9s (Depending On the Thickness of the Material)

Recommended Cooling Time: 5s Fixed

Chamber Size: 34*32*7cm/13.39*12.6*2.76in

Heating Sealing Bar Length: 32cm/12.6in

Product Size: 38*48*43cm/14.96*18.9*16.93in

Package Size: 43*55*40cm/16.93*21.65*15.75in

Gross Weight: 29kg/63.93lbs

Package Included

1 * Vacuum Packing Machine

Several * Sealing Bags

1 * High Temperature Cloth

1 * Heating Coil

1 * English Manual

Notes

1. Please read the operating manual completely before use. And pay particular attention to the safety instructions included.

2. Before use, please open the back of the machine and remove the small black cap on the exhaust pipe. The vacuum pump needs to be filled with engine oil or hydraulic oil, and the oil level should reach half of the vacuum pump oil window. Vacuum oil needs to be changed about once every six months.

3. Please note that there is a certain difference in actual effectiveness and freshness of food compared to temperature. Fresh fruits and vegetables have a breathing effect, and vacuum packaging may cause bag swelling.

4. Please ensure that the bag seal is flat and does not overlap or have wrinkles when using. This product is not suitable for mesh bags and angled bags. It is possible to vacuum materials containing oil and water, as well as powdered materials, but not liquids.

5. Please do not fasten the buckle during use, otherwise, it may cause damage to the heating strip of the vacuum chamber

6. Please note that the longer the vacuum time, the stronger the suction. The cooling time is ideally fixed at 5 seconds, please do not change it arbitrarily.

7. If inflation is required, please prepare your air compressor. If nitrogen needs to be filled, only one nitrogen cylinder is needed, without the need for an additional air compressor.

8. Please note that the vacuum oil needs to be replaced every six months or so. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
