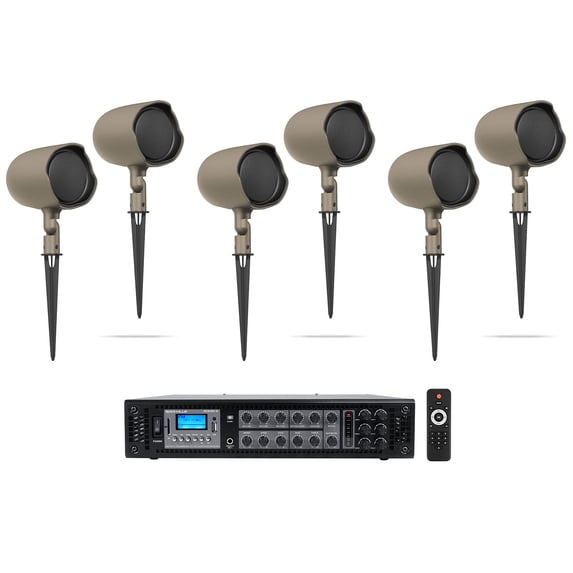

(6) JBL GSF3-TN 6.5" Landscape Ground Stake/Wall 70v Commercial Speakers+Amp
Key item features
- Package Includes: (3) Pair JBI GSF3-TN 3" Landscape Ground Stake or Wall Mount 70v Commercial Speaker. (1) Rockville RCS180-6 180 Watt 6 Zone 70v Commercial/Restaurant Amplifier/Bluetooth. Features: Transducers: 83 mm (3") woofer with polypropylene cone and 25 mm (1") voice coil on Kapton voice coil former; 20 mm (0.8 in) titanium dome tweeter with neodymium magnet assembly and Kapton voice coil former. Frequency Range: 74 Hz - 20 kHz
- Power Handling (at 8? setting): 30W continuous pink noise, 60W continuous program. IP66 rated against water and dust ingress. Multi-tap 15W transformer is switchable for 8O direct operation or use in 70V/100V distributed systems. Bottom drip hole provides drainage for drivers. Pairs well with JBI GSB8 and GSB12 in-ground landscape subwoofers. Aimable via adjustable hinge. Includes ground stake and L-bracket for surface mounting
- Includes tap selector located on bottom of speaker, away from water incursion. Available in hunter green or tan finish. Specifications: Frequency Range (-10dB): 74 Hz - 20 kHz. Frequency Response (+/-3 dB): 120 Hz - 15 kHz. Power Rating: 60 W Continuous Program (2 hrs), 30 W (120 W Peak), Continuous Pink Noise (2 hrs), 20 W (80 W Peak), Continuous Pink Noise (100 hrs). Sensitivity: 84 dB (43 Hz - 110 Hz). Maximum SPL: 103 dB peak (95 dB continuous, 2 hr) @ 1m. Coverage Pattern: 90° conical
- Nominal Impedance: 8 ? (at 8? tap). Transformer Taps: 70V: 15 W, 7.5 W, 3.75 W, 100V: 15 W, 7.5 W. Drivers: 83 mm (3 in) woofer, polypropylene cone 25 mm (1 in) voice coil on Kaptonâ„¢ voice coil former, 20 mm (0.8 in) titanium dome, Neodymium magnet assembly, Kaptonâ„¢ voice coil former. Terminals: Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG). Enclosure Material: Polycarbonate + ABS, UL94V-0 flammability rated
- Color: Hunter Green RAL 6018, or Tan RAL7004. Dimensions: Cabinet 132 mm diameter x 167 mm deep (5.2 x 6.6 in). Assembly height 289 mm (11.4 in) with L-bracket base (at 90°) and 430 (17.0 in) with ground stake base. Net Weight: 1.7 kg (3.8 lbs). Included Accessories: (1) Ground Stake Bracket; (1) L-Bracket. Directivity Factor (Q): 7.9. Directivity Index (dB): 9 dB. Includes: Amplifier. Remote. Rack mount ears. Power Cable. FM Radio antenna. Owner's manual. Warranty. Applications: Restaurant
Specs
- Home speaker & subwoofer typeWall Mount Speakers
- Recommended locationOutdoor
- BrandJBL
- ColorGreen
- WirelessN
- Woofer size3 in
- Free shipping
Free 30-day returns
How do you want your item?
About this item
Product details
Package Includes:
(3) Pair JBL GSF3-TN 3" Landscape Ground Stake or Wall Mount 70v Commercial Speaker
(1) Rockville RCS180-6 180 Watt 6 Zone 70v Commercial/Restaurant Amplifier/Bluetooth
Features:
Transducers: 83 mm (3") woofer with polypropylene cone and 25 mm (1") voice coil on Kapton voice coil former; 20 mm (0.8 in) titanium dome tweeter with neodymium magnet assembly and Kapton voice coil former.
Frequency Range: 74 Hz - 20 kHz
Power Handling (at 8Ω setting): 30W continuous pink noise, 60W continuous program
IP66 rated against water and dust ingress
Multi-tap 15W transformer is switchable for 8Ω direct operation or use in 70V/100V distributed systems
Bottom drip hole provides drainage for drivers
Pairs well with JBL GSB8 and GSB12 in-ground landscape subwoofers
Aimable via adjustable hinge
Includes ground stake and L-bracket for surface mounting
Includes tap selector located on bottom of speaker, away from water incursion
Available in hunter green or tan finish
How to Set up Your RCS Series of Amplifiers:
Video of RCS180-6:
Features:
Rockville RCS180-6350 Watt commercial/restaurant amplifier 19" rack mountable (removable rack brackets) digital hybrid amplifier/receiver
Capable of 70 volt, 100 volt, 8ohm, and 4 ohm
70/100 volt RMS Power: 184 Watts
4-16 ohm binding post speaker output
6-Zones of speaker outputs - each zone has a separate volume control
70 and 100 volt binding post outputs for single zone playback of all 180 watts
Built in Bluetooth audio streaming
FM radio tuner
USB input to play audio stored on a thumb drive (32gb max)
SD card slot to play music stored on an SD Card (32gb max)
Separate volume control for MIC1, MIC2, MIC3, MP3, LINE1, LINE 2, and MP3
Echo control for the mic inputs with speed and repeat adjustments
Built in clipping limiter to protect the amp and speakers
BASS and Treble control
Detachable euro-block speaker output terminals for easy installation
Chime button for making announcements
Top quality aluminum panel with industrial grade knobs
5 segments signal level indication
Built in cooling system keeps component cool at all times
- Package Includes: (3) Pair JBI GSF3-TN 3" Landscape Ground Stake or Wall Mount 70v Commercial Speaker. (1) Rockville RCS180-6 180 Watt 6 Zone 70v Commercial/Restaurant Amplifier/Bluetooth. Features: Transducers: 83 mm (3") woofer with polypropylene cone and 25 mm (1") voice coil on Kapton voice coil former; 20 mm (0.8 in) titanium dome tweeter with neodymium magnet assembly and Kapton voice coil former. Frequency Range: 74 Hz - 20 kHz
- Power Handling (at 8? setting): 30W continuous pink noise, 60W continuous program. IP66 rated against water and dust ingress. Multi-tap 15W transformer is switchable for 8O direct operation or use in 70V/100V distributed systems. Bottom drip hole provides drainage for drivers. Pairs well with JBI GSB8 and GSB12 in-ground landscape subwoofers. Aimable via adjustable hinge. Includes ground stake and L-bracket for surface mounting
- Includes tap selector located on bottom of speaker, away from water incursion. Available in hunter green or tan finish. Specifications: Frequency Range (-10dB): 74 Hz - 20 kHz. Frequency Response (+/-3 dB): 120 Hz - 15 kHz. Power Rating: 60 W Continuous Program (2 hrs), 30 W (120 W Peak), Continuous Pink Noise (2 hrs), 20 W (80 W Peak), Continuous Pink Noise (100 hrs). Sensitivity: 84 dB (43 Hz - 110 Hz). Maximum SPL: 103 dB peak (95 dB continuous, 2 hr) @ 1m. Coverage Pattern: 90° conical
- Nominal Impedance: 8 ? (at 8? tap). Transformer Taps: 70V: 15 W, 7.5 W, 3.75 W, 100V: 15 W, 7.5 W. Drivers: 83 mm (3 in) woofer, polypropylene cone 25 mm (1 in) voice coil on Kaptonâ„¢ voice coil former, 20 mm (0.8 in) titanium dome, Neodymium magnet assembly, Kaptonâ„¢ voice coil former. Terminals: Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG). Enclosure Material: Polycarbonate + ABS, UL94V-0 flammability rated
- Color: Hunter Green RAL 6018, or Tan RAL7004. Dimensions: Cabinet 132 mm diameter x 167 mm deep (5.2 x 6.6 in). Assembly height 289 mm (11.4 in) with L-bracket base (at 90°) and 430 (17.0 in) with ground stake base. Net Weight: 1.7 kg (3.8 lbs). Included Accessories: (1) Ground Stake Bracket; (1) L-Bracket. Directivity Factor (Q): 7.9. Directivity Index (dB): 9 dB. Includes: Amplifier. Remote. Rack mount ears. Power Cable. FM Radio antenna. Owner's manual. Warranty. Applications: Restaurant
