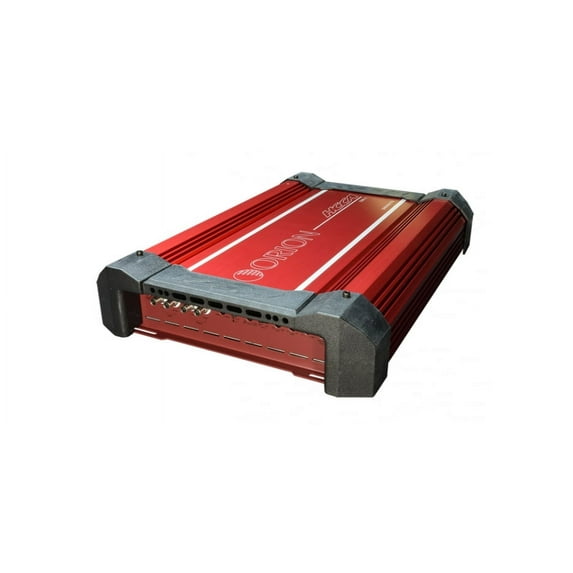

Orion HCCA1500.2 3000W MAX 2 Channel Class A/B HCCA Series Amplifier

Class-AB Amplification - Experience the synergy of Class-AB amplification, combining the efficiency of Class B and the sound quality of Class A for an audio experience that resonates deeply.
1500 Watts RMS - Immerse yourself in a world of exceptional audio with 1500 Watts RMS, delivering powerful and precise sound performance.
Precision Audio Control - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
Customized Bass Enhancement - Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
Advanced Protection Measures - Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring lasting durability.
Compact and Stylish Design - The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.
Engineered Excellence - Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.

All MOSFET Power Supply
Remote Gain Control
Heavy Gauge Direct-Wire High Current Power and Speaker Terminals
Electronic Crossover Network
Bass Boost Circuitry
Tri-Mode Capable
High-Pass/Low-Pass Filter Control
Power and Protection LED Indicators
Soft Turn-on/Turn-off
Balanced Input (CMRR)
Fault and Protection Monitoring
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 500W
- RMS WATTS @ 2 Ohms @ 0.5% THD+N: 2 x 750W
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 1 x 1,500W

 POWER TERMINAL MANAGEMENT
  Positive Terminals: 1 x 0 AWG.
  Negative Terminals: 1 x 4 AWG.
  Remote Turn-ON Signal: 10 AWG.
  Speaker Output Terminals: 10 AWG.

- Frequency Response 10Hz to 35kHz +/- 1 dB
