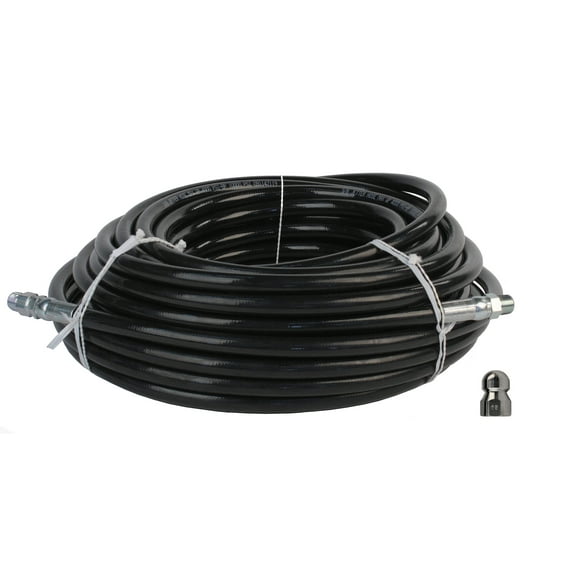

Schieffer 1/4" x 100' 4400 PSI Thermoplastic Sewer Jetter Hose & 12.0 Nozzle

Schieffer 1/4in. x 100ft. 4400 PSI Thermoplastic Sewer Jetter Hose & 12.0 Orifice Button Nose Nozzle Kit Includes:

• Schieffer 1/4" x 100' Sewer Jetter Hose
• 1/4" Stainless Steel Button Nose Sewer Jetter Nozzle 12.0 Orifice

Thermoplastic sewer jetter hose made in the USA for all types of medium and high-pressure jetting applications. Schieffer Sewer Jetter hose uses a reinforcement construction composed of one extra strong layer of textile braid. Schieffer uses a single pass with a twenty-four carrier braider vs two passes with a sixteen carrier braider like most of the competition. Covering the hose in a single pass keeps the layers of braiding closer and tighter together creating a stronger hose than other competitor's hoses using a two-pass process, that is not as tightly wound. Hose Construction

• Inner Tube: Thermoplastic polyester tube
• Reinforcement: One layer 1/4" high tenacity polyester textile braid that is chemically bonded
• Cover: Black thermoplastic polyurethane that is oil, weather, ozone, and abrasion resistant
• Temperature Range: -40°F / +160°F

Hose Specifications:

• Hose Length: 100'
• Hose Connection: 1/4" MPT (swivel) x 1/4" MPT (solid)
• Hose Size: DN 06 - Dash -04
• Hose I.D: .28" (7mm)
• Hose O.D: .53" (13.7mm)
• Working Pressure: 4400 PSI - 303 Bar
• Proof Pressure: 5500 PSI - 380 Bar
• Burst Pressure: 11000 PSI - 760 Bar
• Bend Radius (MIN): 3.94" (100mm)

Schieffer Quality Guarantee: Schieffer is an ISO 9001:2008 certified in 2012, The company continues to implement and embrace the most modern practices of quality and continuous process improvement. Each batch is quality tested to meet or exceed expectations because of the following:

• Qualify all fittings
• Burst test hoses
• Leak test assemblies to confirm proper crimp
• Pin test each crimp to confirm proper internal crimp
• Full-Time Quality Control Dept that contributes to our overall performance

Stainless Steel Button Nose 1/4" Female 12.0 Orifice Laser Fixed Sewer Jetter Nozzle 5000 PSI

• Laserjet Nozzle Button Nose
• 1 front jet at 0° that clears blockages
• 3 rear jets at 33° flush out debris loosened by the front jet
• 1/4" Female Fitting - Fits 1/4" NPT male sewer jetter hose fittings
• 12.0 Orifice
• 5000 PSI Max Pressure
• Handles water up to 310° F
• Durable High Strength Stainless Steel

WARNING! This product may expose you to chemicals including nickel_metallic, 1_3_butadiene, ceramic_fiber_airborne_particles_respirable_size, and tetrafluoroethylene which are known to the state of California to cause cancer as well as reproductive and developmental harm.
