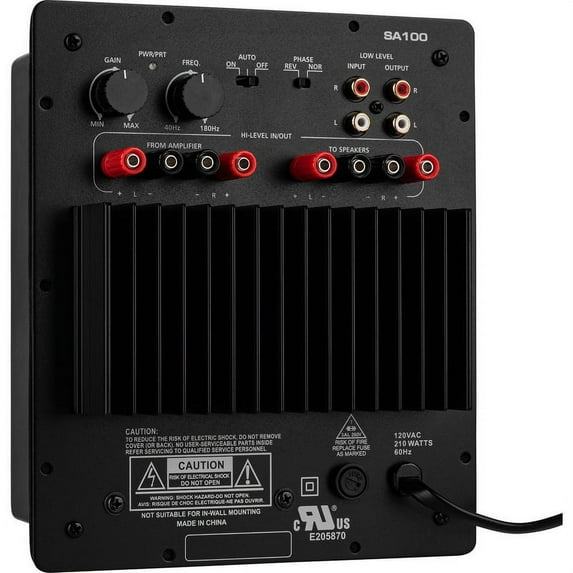

Dayton Audio SA100 100W Subwoofer Plate Amplifier

Manufacturer Part Number: SA100

This Dayton Audio SA100 100 watt subwoofer amplifier with adjustable crossover, high and low level inputs, auto on/off and phase reversal switch is perfect for building your own powered subwoofer. This plate amp offers very stable operation, with full overload protection.

We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.

Key Features:

• Low distortion audiophile sound
• Adjustable low pass crossover
• High and low level inputs/outputs
• Auto On/Off
• Phase reversal switch
• 75 watts RMS @ 8 ohms, 100 watts RMS @ 4 ohms
• S/N Ratio: 90 dB (A-weighted)

Dayton Audio SA100 100W Subwoofer Plate Amplifier

Small but mighty! The Dayton Audio SA100 high performance subwoofer plate amp module packs big-amp features into a compact chassis that is ideal for installation into cabinets that can't accommodate bulky old-style amps. We made it small, but included everything that you need to connect the amp to your system and get maximum performance. Input/output connections are through your choice of either line level RCA connectors, or speaker level banana jacks. A stereo input signal is summed to mono and sent to the internal low pass crossover, which is selectable from 40 to 180 Hz; the input gain sensitivity is fully adjustable as well.

The SA100 also includes a phase reverse switch, which helps you to achieve the best acoustical match with the rest of your speakers. An Auto On/Off switch keeps the amp standing by, waiting for an input signal to turn it on. A large surface area heat sink is combined with internal overload, thermal, and short circuit protection so that you can expect years of reliable operation.

Specifications: Measured power output: 75 watts RMS into 8 ohms @ 0.1% THD, 100 watts RMS into 4 ohms @ 0.2% THD Signal to noise ratio: 90 dB (A-weighted) Dimensions: 7-1/2" W x 8-11/16" H x 4-3/4" D Enclosure cutout: 6-1/2" W x 7-1/2" H Power requirements: 120 VAC, 60 Hz, 210 watts Net weight: 7.6 lbs.

With a Dayton Audio 5 year warranty, it's more than a guarantee, it's a promise. We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.

Product Details

BrandDayton AudioModelSA100Part Number300-802UPC844632015946Unit of MeasureEachWeight8.55
