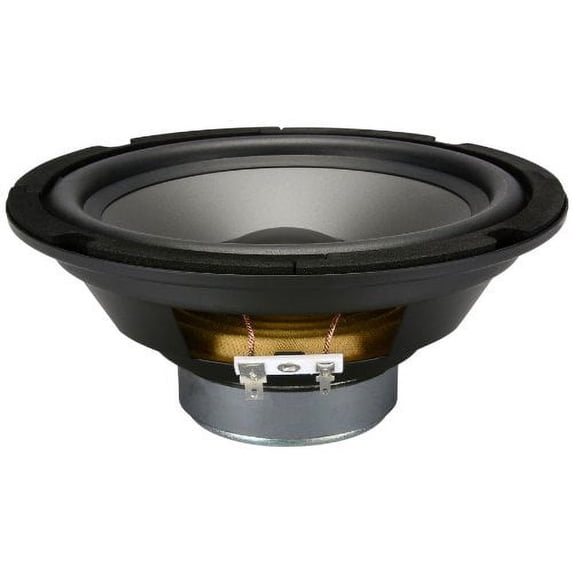

Speaker 6-1/2 Poly Cone Midbass Woofer 4 Ohm

This buyout 6-1/2" woofer is the perfect replacement for worn, tired sealed bookshelf speakers. The extended frequency response allows it to mate well with tweeters without a low pass filter. Save nearly 60% off the original retail price through this Parts Express exclusive buyout.

Key Features:

• Smooth, natural response doesn't require a low-pass filter
• Decent Xmax for good bass response
• Designed for use in sealed cabinets
• Save nearly 60% off the original retail price!

6-1/2" Poly Cone Midbass Woofer 4 Ohm

This durable 6-1/2" poly cone woofer with rubber surround is designed to work best in small, sealed bookshelf-style cabinets. The damped poly cone creates smooth sound from 45 Hz all the way up to 3,000 Hz and is easy to integrate with many different tweeters, and the 4 ohm impedance extracts more current from an amplifier for twice the output (3 dB increase), when compared to a similar 8 ohm speaker.

A 1" voice coil is combined with an aluminum former for a power handling rating of 30 watts RMS and 60 watts max, and the "Q" of the motor is such that solid bass performance can be achieved in cabinets as small as 0.25 cubic feet, with an f3 of 63 Hz (with a 1/4 pound of acoustic fill).

Save over 50% off the original price through this exclusive factory buyout.

Product Details

BrandFactory BuyoutsPart Number299-609UPC848864006864Unit of MeasureEachWeight1.8

Product Specifications

Nominal Diameter6-1/2"Bolt Circle Diameter6.125Power Handling (RMS)30 WattsPower Handling (MAX)60 WattsImpedance4ΩFrequency Response50 to 6,000HzSensitivity88.3dB 2.83V/1mVoice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)52HzDC Resistance (Re)3.37ΩVoice Coil Inductance (Le)0.48mHMechanical Q (Qms)2.99Electromagnetic Q (Qes)1.4Total Q (Qts)0.95Compliance Equivalent Volume (Vas)0.65ft³Maximum Linear Excursion (Xmax)3.5mm

Materials of Construction

Cone MaterialPolySurround MaterialRubberVoice Coil Wire MaterialCopperVoice Coil FormerAluminumBasket / Frame MaterialSteelMagnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.5"Baffle Cutout Diameter5.625"Depth2.875"# Mounting Holes4

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

Sealed Volume1.53ft³Sealed F349HzVented Volume3.64ft³Vented F330Hz
