Simrad NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N ... [000-13336-001]

(No ratings yet)

Key item features

  • Simrad NAC-3 Core Pack 000-13336-001

  • Simrad NAC-3 High-current Core Pack

    Model: 000-13336-001
    UPC: 9420024155646

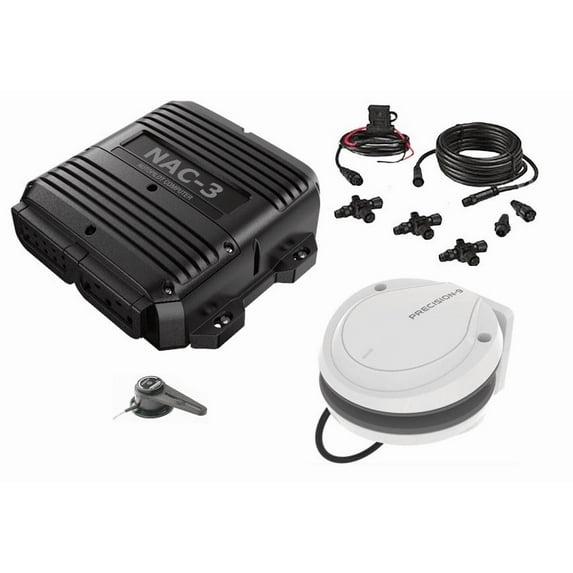

    NAC-3 Autopilot Core Pack: Comprising of the high-current NAC-3 autopilot computer, Precision-9 compass and RF-25 rudder feedback unit.

    The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10 metres (33 feet) or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).

    Specifications
    Operating temperature 0 to +55°C
    protection IPX7
    Electrical
    Power supply 12/24vDC
    Reversible motor control of rudder Max continious load 30A, peak 50A for 1s
    On/off solenoid control of rudder 12/24V DC, common, load range 10mA to 10A, off current <1mA
    Engage output for bypass/clutch 12/24V DC, min 10mA, max 3A
    Rudder angle, frequency input 15V, 1.4 to 5kHz, resol. 20Hz/° OR NMEA2000
    NFU port/stbd input and mode indicator output External open/close contact, common ret, contact current max 30mA
    Mode input External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA
    External alarm output for buzzer/relay Max 100mA, voltage level as local supply
    Networking
    NMEA 0183 1 in 1 out
    NMEA2000 1 Micro C

    What's in the Box:
    • NAC-3 Autopilot Computer
    • PRECISION-9 COMPASS
    • RF25N NMEA2000
    • N2k Backbone Starter Kit
  • 000-13336-001
Current price is $2,549.00
Price when purchased online
  • Free shipping
  • Free 30-day returns

How do you want your item?

How do you want your item?
Columbus, 43215
Arrives by Tue, Feb 10
|
Sold and shipped by ProAnglersChoice
4.545454545454546 stars out of 5, based on 11 seller reviews(4.5)
Report an issue with this seller
Free 30-day returns

About this item

Product details

Specifications

Warranty

Compare with similar items

Comparison Overview:
Product

Viewing this item

Simrad NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N ... [000-13336-001]
Simrad NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N ... [000-13336-001]
current price $2,549.00
Simrad NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N ... [000-13336-001]
Furuno NavPilot 300/PG Autopilot System w/PG700 Sensor [NAVPILOT 300/PG]
Furuno NavPilot 300/PG Autopilot System w/PG700 Sensor [NAVPILOT 300/PG]
current price $2,595.00
Furuno NavPilot 300/PG Autopilot System w/PG700 Sensor [NAVPILOT 300/PG]
Simrad NAC-2 Low Current Boat Autopilot with N2KEXT-2RD Cable
Simrad NAC-2 Low Current Boat Autopilot with N2KEXT-2RD Cable
current price $987.00
Simrad NAC-2 Low Current Boat Autopilot with N2KEXT-2RD Cable
Navico NAC-1 Outboard Hydralic Autopilot Pack
Navico NAC-1 Outboard Hydralic Autopilot Pack
current price $1,249.00
Navico NAC-1 Outboard Hydralic Autopilot Pack
5 out of 5 Stars. 1 reviews
Raymarine T70152 Ev-100 Wheel Evolution Autopilot
Raymarine T70152 Ev-100 Wheel Evolution Autopilot
current price $1,979.99
Raymarine T70152 Ev-100 Wheel Evolution Autopilot
Simrad OP12 Autopilot Controller [000-13287-001]
Simrad OP12 Autopilot Controller [000-13287-001]
current price $346.99
Simrad OP12 Autopilot Controller [000-13287-001]

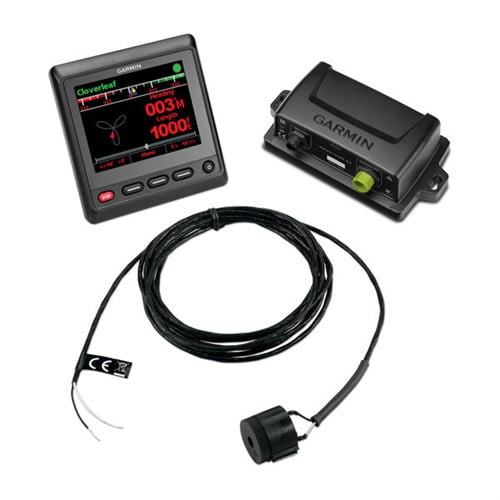

Garmin Reactor 40 Autopilot Steer-By-Wire Standard with GHC50 Control
