Ram Mounts Boat Fishfinder Mount RAP-B-101-LO12 | Hook2 Size B

Boat part number 7501513 is a new fishfinder mount from Ram Mounts, part number RAP-B-101-LO12 . Commonly used on G3 boats. May be used on other boats.

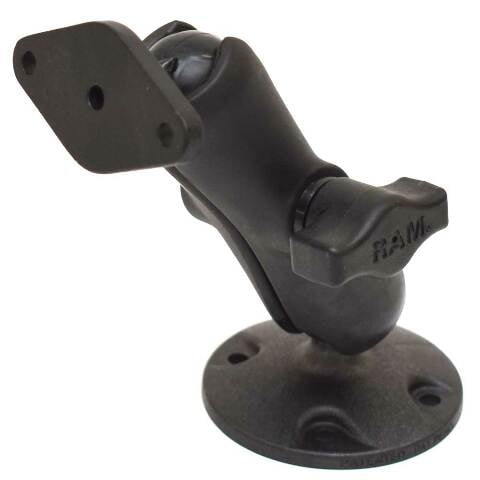

Designed for light duty salt water use, this B size (1”) composite drill-down mount for the Lowrance Hook2 allows users to swap out the factory mounting solution with a RAM® Mounts solution. Simply attach the included adapter to the Lowrance Hook² and you're ready to connect the double socket arm and round base. Made of high strength composite, this mount is designed to keep your Hook2 secure and stable in the rugged marine environments.

This fishfinder mount is constructed out of black composite, and measures approximately 5 1/4" H x 2 7/8" W x 2 1/2" D overall. Mounts with (4) 3/16" dia. holes set apart 1 1/8" x 1 1/2" center to center.

Per the manufacturer, this mount is designed for Lowrance Hook2-4x, 5 and Reveal model fishfinders.

Specifications:

• Part Manufacturer: Ram Mounts
• Part Number: RAP-B-101-LO12
• UPC: 793442956126
• Material: Composite
• Color: Black
• Ball Size: 1" (B-Size)
• Overall Dimensions: 5 1/4" H x 2 7/8" W x 2 1/2" D
• Mounts: (4) 3/16" Dia. Holes Set Apart 1 1/8" x 1 1/2" CTC

Sold as seen in pictures. Customers please note every computer shows colors differently.
All measurements are approximate.
Hardware included.
Instruction / installation manual not included.
