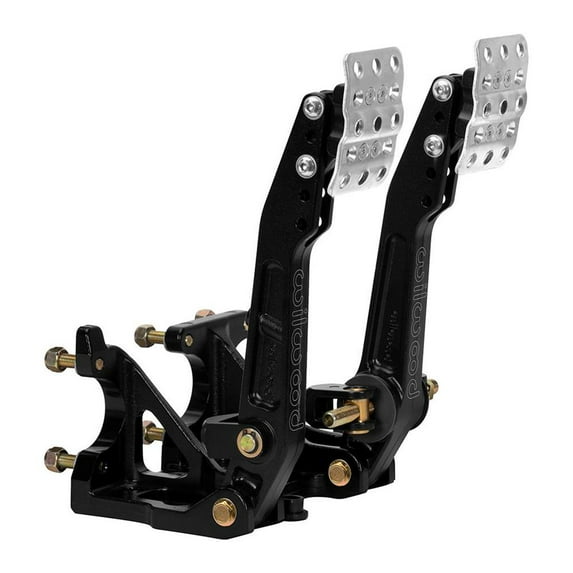

Wilwood 340-16606 Fordward Facing Floor Mount Brake/Clutch Pedal

Name: Wilwood 340-16606 Fordward Facing Floor Mount Brake/Clutch Pedal
Brand: Wilwood
SKU: 1134578376
Price: 377.45 USD
Availability: InStock

(No ratings yet)

Check if this fits your vehicle

Key item features

Adjustable Ratio: The pedal head vertically adjusts to provide a 4.75, 5.25, or 5.75:1 ratio, allowing for more feel or reduced pedal effort.
Integrated Master Cylinders: This assembly accommodates a clutch and two brake master cylinders, with an adjustable balance bar for front to rear brake bias fine-tuning.
Customizable Pedal Pads: Non-skid waffled pedal pads can be laterally adjusted from 3.75 to 5.75 inches on center to suit driver preference.
Durable Construction: Pedals feature a lightweight aluminum frame combined with high-strength, reinforced I-beam style forged pedal arms.
Precise Balance Bar: The balance bar includes a positive detent stop every full turn to maintain adjustment and can be locked with a jam nut or used with an optional remote knob.
Optimized Pushrod: A pin and clevis pushrod attachment system ensures minimal misalignment for bind-free operation throughout the entire range of travel.
Master Cylinder Compatibility: This pedal assembly is designed to accept three Wilwood 2.25 inch vertical mount flange single outlet master cylinders.

Generated by AI

Specs

Vehicle make
Ford
Vehicle model
340-16606
Vehicle fitment type
Universal
Material
Aluminum
Brand
Wilwood
Features
Adjustable

Current price is $377.45

Price when purchased online

Free shipping
Free 90-day returns

How do you want your item?

Columbus, 43215

Arrives by Sat, Feb 14

Sold and shipped by Walmart.com

Free 90-day returns

This item is gift eligible

More seller options (1)

Starting from $377.45

Compare with similar items

Comparison Overview:
Product	Viewing this item Wilwood 340-16606 Fordward Facing Floor Mount Brake/Clutch Pedal current price $377.45 Wilwood 340-16606 Fordward Facing Floor Mount Brake/Clutch Pedal	Wilwood 340-16606 Adjustable 4.75-5.75 Ratio Floor Mount Brake & Clutch Pedals current price $377.44 Wilwood 340-16606 Adjustable 4.75-5.75 Ratio Floor Mount Brake & Clutch Pedals	Wilwood 340-15078 Floor Mount Tru-Bar Aluminum 6:1 Ratio Brake Pedal Assembly current price $386.22 Wilwood 340-15078 Floor Mount Tru-Bar Aluminum 6:1 Ratio Brake Pedal Assembly	Wilwood 120-16981-RD EPB Electronic Parking Brake Caliper, Left-Hand, Red, 0.438" - 0.625" Disc current price $381.12 Wilwood 120-16981-RD EPB Electronic Parking Brake Caliper, Left-Hand, Red, 0.438" - 0.625" Disc	Wilwood Dual Pedal Assy Adj Fw Swing Offset Clutch current price Now $327.07, Was $344.80 Wilwood Dual Pedal Assy Adj Fw Swing Offset Clutch	Wilwood 340-13834 7:1 Brake/Clutch Pedal w/260-3378 MC, 1 Inch current price $224.99 Wilwood 340-13834 7:1 Brake/Clutch Pedal w/260-3378 MC, 1 Inch	Wilwood 340-16387 Adjustable Reverse Swing Mount Brake Pedal with 5.5-6.25:1 Ratio current price $251.60 Wilwood 340-16387 Adjustable Reverse Swing Mount Brake Pedal with 5.5-6.25:1 Ratio	Wilwood Bolt Kit Caliper Mnt 3/8-24 current price Now $17.43, Was $27.36 Wilwood Bolt Kit Caliper Mnt 3/8-24	Wilwood 340-13837 Adjustable Brake Pedal, Reverse Swing Mount, 5.1:1 current price $214.49 Wilwood 340-13837 Adjustable Brake Pedal, Reverse Swing Mount, 5.1:1	Wilwood 340-16380 Adjustable 6.25-7:1 Ratio Tru-Bar Swing Mount Brake Pedal current price $464.74 Wilwood 340-16380 Adjustable 6.25-7:1 Ratio Tru-Bar Swing Mount Brake Pedal

Comparison Chart:
Vehicle fitment type	UniversalWilwood 340-16606 Fordward Facing Floor Mount Brake/Clutch Pedal	UniversalWilwood 340-16606 Adjustable 4.75-5.75 Ratio Floor Mount Brake & Clutch Pedals	UniversalWilwood 340-15078 Floor Mount Tru-Bar Aluminum 6:1 Ratio Brake Pedal Assembly	UniversalWilwood 120-16981-RD EPB Electronic Parking Brake Caliper, Left-Hand, Red, 0.438" - 0.625" Disc	SpecificWilwood Dual Pedal Assy Adj Fw Swing Offset Clutch	SpecificWilwood 340-13834 7:1 Brake/Clutch Pedal w/260-3378 MC, 1 Inch	UniversalWilwood 340-16387 Adjustable Reverse Swing Mount Brake Pedal with 5.5-6.25:1 Ratio	SpecificWilwood Bolt Kit Caliper Mnt 3/8-24	UniversalWilwood 340-13837 Adjustable Brake Pedal, Reverse Swing Mount, 5.1:1	UniversalWilwood 340-16380 Adjustable 6.25-7:1 Ratio Tru-Bar Swing Mount Brake Pedal
Vehicle type	Motor VehicleWilwood 340-16606 Fordward Facing Floor Mount Brake/Clutch Pedal	CarWilwood 340-16606 Adjustable 4.75-5.75 Ratio Floor Mount Brake & Clutch Pedals	CarWilwood 340-15078 Floor Mount Tru-Bar Aluminum 6:1 Ratio Brake Pedal Assembly	CarWilwood 120-16981-RD EPB Electronic Parking Brake Caliper, Left-Hand, Red, 0.438" - 0.625" Disc	CarWilwood Dual Pedal Assy Adj Fw Swing Offset Clutch	Motor VehicleWilwood 340-13834 7:1 Brake/Clutch Pedal w/260-3378 MC, 1 Inch	CarWilwood 340-16387 Adjustable Reverse Swing Mount Brake Pedal with 5.5-6.25:1 Ratio	CarWilwood Bolt Kit Caliper Mnt 3/8-24	CarWilwood 340-13837 Adjustable Brake Pedal, Reverse Swing Mount, 5.1:1	CarWilwood 340-16380 Adjustable 6.25-7:1 Ratio Tru-Bar Swing Mount Brake Pedal
Has written warranty	NoWilwood 340-16606 Fordward Facing Floor Mount Brake/Clutch Pedal	Yes - Warranty TextWilwood 340-16606 Adjustable 4.75-5.75 Ratio Floor Mount Brake & Clutch Pedals	Yes - Warranty TextWilwood 340-15078 Floor Mount Tru-Bar Aluminum 6:1 Ratio Brake Pedal Assembly	Yes - Warranty TextWilwood 120-16981-RD EPB Electronic Parking Brake Caliper, Left-Hand, Red, 0.438" - 0.625" Disc	NoWilwood Dual Pedal Assy Adj Fw Swing Offset Clutch	NoWilwood 340-13834 7:1 Brake/Clutch Pedal w/260-3378 MC, 1 Inch	Yes - Warranty TextWilwood 340-16387 Adjustable Reverse Swing Mount Brake Pedal with 5.5-6.25:1 Ratio	NoWilwood Bolt Kit Caliper Mnt 3/8-24	Yes - Warranty TextWilwood 340-13837 Adjustable Brake Pedal, Reverse Swing Mount, 5.1:1	-Wilwood 340-16380 Adjustable 6.25-7:1 Ratio Tru-Bar Swing Mount Brake Pedal
Color	BlackWilwood 340-16606 Fordward Facing Floor Mount Brake/Clutch Pedal	BlackWilwood 340-16606 Adjustable 4.75-5.75 Ratio Floor Mount Brake & Clutch Pedals	BlackWilwood 340-15078 Floor Mount Tru-Bar Aluminum 6:1 Ratio Brake Pedal Assembly	RedWilwood 120-16981-RD EPB Electronic Parking Brake Caliper, Left-Hand, Red, 0.438" - 0.625" Disc	Multi-colorWilwood Dual Pedal Assy Adj Fw Swing Offset Clutch	BlackWilwood 340-13834 7:1 Brake/Clutch Pedal w/260-3378 MC, 1 Inch	BlackWilwood 340-16387 Adjustable Reverse Swing Mount Brake Pedal with 5.5-6.25:1 Ratio	UnknownWilwood Bolt Kit Caliper Mnt 3/8-24	BlackWilwood 340-13837 Adjustable Brake Pedal, Reverse Swing Mount, 5.1:1	BlackWilwood 340-16380 Adjustable 6.25-7:1 Ratio Tru-Bar Swing Mount Brake Pedal

Now hiding additional rows in the Table

About this item

Product details

Floor Mount Brake and Clutch Pedal-Adj Ratio Adjustable ratio balance bar brake pedal, in a floor mount brake and clutch pedal assembly. Pedal head adjusts vertically to provide a 4.75, 5.25, or 5.75:1 ratio for more feel or less pedal effort. A clutch and two brake master cylinders mount to the assembly, with an adjustable balance bar providing front to rear brake bias fine tuning. The non-skid waffled pedal pads can be laterally adjusted to be from 3.75 to 5.75 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts three Wilwood 2.25 inch vertical mount flange single outlet master cylinders.

Adjustable ratio balance bar brake pedal, in a floor mount brake and clutch pedal assembly
Pedal head adjusts vertically to provide a 4.75, 5.25, or 5.75:1 ratio for more feel or less pedal effort
A clutch and two brake master cylinders mount to the assembly, with an adjustable balance bar providing front to rear brake bias adjustment
The non-skid waffled pedal pads can be laterally adjusted to be from 3.75 to 5.75 inches on center for driver preference
The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms
New
Dual Pedal Assy Adj Floor Mnt
New

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Vehicle make

Ford

Vehicle model

340-16606

Vehicle fitment type

Universal

Brake system replacement part & hardware type

Floor Mount Brake and Clutch Pedal

Warranty

Warranty information

1 Year
