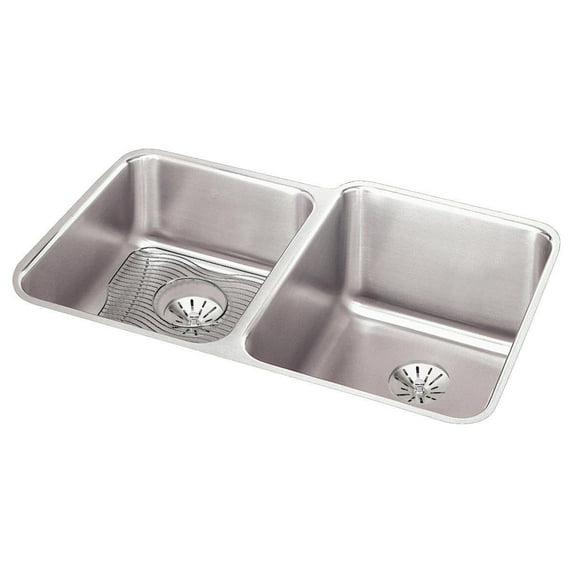

Elkay ELUH3120LPDBG Lustertone 31.25 x 20.5 x 9-7/8" 2-Bowl Undermount Kitchen Sink Kit, Perfect Drain

An Elkay Lustertone sink looks as great on day 3,000 as it does on day one. Our signature finish is handcrafted with a rich, uniform grain that adds to the beauty of the sink. Light scratches, which occur with everyday use, naturally blend into the finish with time.

Product Features

• PERFECT DRAIN: Edgeless drain eliminates the gap around the drain for a cleaner, more hygienic sink; food and gunk go right down the drain.
• LUSTERTONE FINISH: Durable, handcrafted finish looks as great on day 3,000 as on day one. Light scratches naturally blend into sink finish with time.
• UNDERMOUNT INSTALLATION: Sink is installed beneath the countertop creating a seamless appearance between the sink and the countertop.
• 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
• QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
• OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
• LARGE CAPACITY: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean.
• EXTRA DEEP BOWLS: High-capacity bowls offer more room inside for stacking dishes, filling stockpots, and handling large baking sheets and roasters.
• TWO BOWLS, DIFFERENT SIZES: Use bowls independently; wash dishes on one side, while keeping the other bowl available for smaller tasks.
• KIT INCLUDES: ELUH3120LPD sink, one LKWOBG1418SS bottom grid, two LKPD1 Perfect Drains and strainers.
• Perfect Drain

Technical Specifications

• Length: 31.25"; Width: 20.5"; Height: 9.875"
• Sink Depth: 9.875"
• Style: Traditional
• Material: Stainless Steel
• Finish: Lustertone
• Intended Use: Residential/Multi-Family
• ADA: No
• Installation Type: Undermount, Sink Kits
• Mounting Hardware: Undermount brackets sold separately
• Template Included: Yes
• Recommended Installation Hardware: LKUCLIP8 (2 packages required)
• Number of Bowls: 2
• Bowl 1 Length: 13.5"; Bowl 1 Width: 16"; Bowl 1 Depth: 7.875"
• Drain Size (Bowl 1): 3.375"
• Bowl 2 Length: 14"; Bowl 2 Width: 18"; Bowl 2 Depth: 9.875"
• Drain Size (Bowl 2): 3.375"
• Soundproofing: Sides and Bottom pads
• Minimum Cabinet Size: 36"
• Included Parts: LKWOBG1418SS, LKPD1
• Optional Soap Dispenser: LKGT1054
• Optional Grid: LKWOBG1316SS (small bowl)
• Optional Cutting Board: CBS1418*, CB1613*, CB1713*, CBS1316*
• Optional Rinsing Basket: LKWRB1418SS, LKWERBSS, LKWRB1316SS
• Optional Drain: LKPDVR18B, LKDS99, LKDS35
• Optional Faucet: LKGT1041, LKGT2041
• Gauge: 18
• Base Material: 304
• Code Compliance: ASME A112.19.3/CSA B45.4, BUY AMERICAN ACT, ASME A112.18.2/CSA B125.2ASME A112.18.2/CSA B125.2
