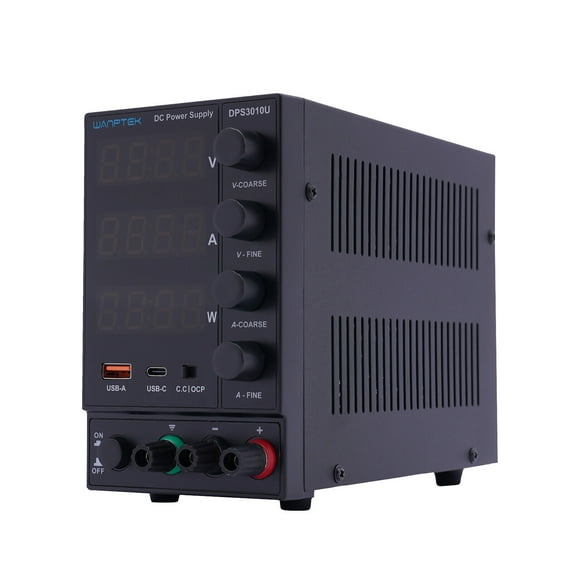

WANPTEK DPS3010U DC Power Supply 300W 0-10A 0-30V Switch Adjustable Digital 110V

Product description:

DPS series products are a three-window four-bit high-precision switching DC regulated power supply , which can display voltage , current and power at the same time . Products are widely used in mobile phone maintenance , computer maintenance , school and production line use , its output voltage and output current can be continuously adjusted between 0 and nominal value .

Power supply stability and ripple coefficient are very good, with USB fast charging function and perfect short circuit protection circuit . It is small in size , beautiful in design , convenient in operation , and can work long hours at full load It is loved by the vast number of users .

Specifications：

Model: DPS3010U

Output voltage: 0-30V for 3010U

Output current: 0-10A for 3010U

Output power: 300W for 3010U

Auxiliary output: USB Quick Chang 18w, Supports multiple quick charging protocols

Input voltage: AC110V, 60HZ

Working TEMP 0-40℃ ; Humidity : 80 % RH

Storage TEMP -10-70℃ ; Humidity : < 70 % RH

C.V: Voltage stability ≤0.1 % + 3mv; Load stability≤0.1 % + 3mv; Ripple noise :≤20mvrms （ Effective value ）

C.C：Current stability ≤0.1 % + 3MA； Load stability≤ 0. 2 % + 3MA； Ripple noise : ≤5mArms （Effective value）

Protection mode：Current limiting protection / short circuit alarm stop output and self-recovery

Display: Four-digit digital tube , three-window display

Accuracy : 0 . 5 % + 3digit

Resolution :Voltage 0.01V; current 0.001A

Product size: L225mm x W90mm x H145mm

Weight: 1.8kg

Fuse: 2A for DPS305U/3A forDPS3010U/3A forDPS605U

Operation instructions:

There are two modes of power output : constant voltage output ( C V ) and constant current output ( C C ) . The output mode is determined by the voltage and current values set by the user and the load that the user receives . The output voltage or current value of the power supply will not exceed the voltage and current value set by the user. In the constant voltage mode , the output voltage is equal to the voltage set by the user. In constant current mode, the output current value is equal to the current value set by the user.

Voltage Regulation

1. Adjust the voltage roughly to the required voltage value , the fine-tune the knob to the required specific voltage value
2. In general , the current knob can be adjusted to the maximum , and then the load can be connected for use

Current regulation

When the user needs to adjust the limiting current output

1. firstly , adjust the voltage to about 5-10V , then short-circuit the positive and negative arials with wires ( short-circuit alarm needs to be set to C C position )
2. Adjust the current to roughly adjust the knob to the required current value , and then fine-tune the knob to the required specific current value
3. After disconnecting the short-circuit conductor and adjusting the required voltage by voltage regulation " method , the connection load can be used

Packing List

1 x whole machine

1x Power cord

1x Output Load Line

1x Instructions
