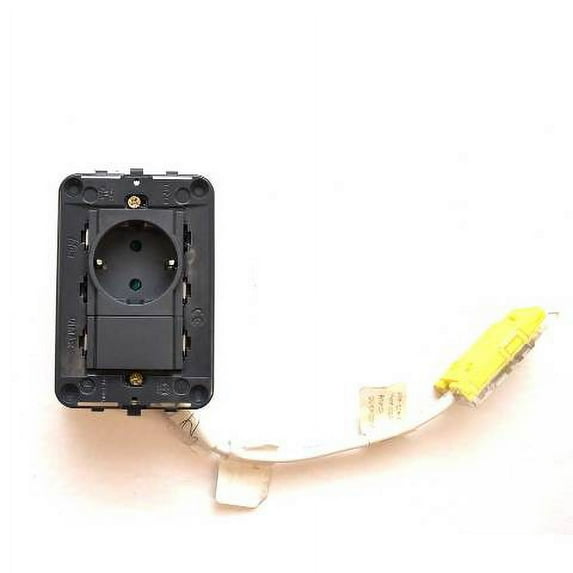

Boat part number 1092721 is a new flush mount French SICURY outlet socket from Vimar, part number 63080 . Commonly used on Rinker Boats, part number 2230120 , but may be used on other boats.
Manufacturer calls this a 2P+E 16 A 250 V~ SICURY socket outlet, French standard, with locking device for the insertion of special purpose plugs, gray - 2 modules.
This pre-assembled French outlet constructed out of dark gray plastic housing and measures approximately 4 1/2" W x 3" H x 2 1/8" D overall. It has (1) 3-spade Molex connection and a nominal rating of 250V.
Specifications:
- Boat Manufacturer: Rinker
- Part Number: 2230120
- Part Manufacturer: Vimar
- Class Group: Domestic Switching Devices
- Model: French Norm NF
- Part Number: 63080
- Nominal Current: 16A
- Nominal Voltage: 250V
- Outlet Rating: 220V
- Halogen Free: Yes
- Frequency: 50 - 60 HZ
- Mounting: Flush Mount
- Color: Gray / Black
- Material: Plastic
- Overall Dimensions: 4 1/2" W x 3" H x 2 1/8" D
Sold as seen in pictures. Customers please note every computer shows colors differently. All measurements are approximate.
Hardware and instruction / installation manual not included.
