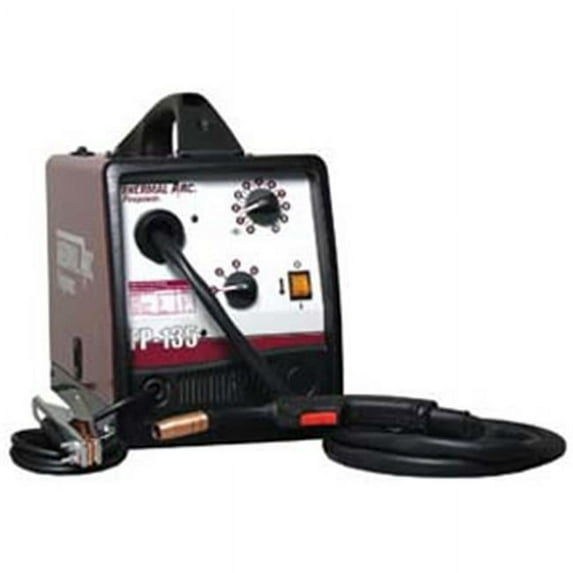

Victor 135 Amp Wire Feed Welder Fp135

The new portable FP 135 dual purpose wire welder delivers a very versatile and effective welding performance. With its simple operation and key set up chart even the novice can achieve high quality, professional results. This system features a quick change internal polarity adjustment to change between MIG (GMAW) and flux cored (FCAW) welding. Designed to operate from a standard household outlet and delivers a high maximum output of 135 amps. The ready to weld system comes complete with Tweco gun, return cable & clamp, input power cord & plug, spool of flux cored wire and an operating manual. FP 135‘s high output and duty cycle makes this a great all round package. Optional cart also available.

• Maximum output 135 Amp.
• Duty cycle @ 104°F 40% @ 90 Amp at 18V.
• Current range 20-135 Amp.
• Number of voltage settings 4.
• Maximum plate thickness 1/4 in. (6mm).
• Wire diameter range .023 - .035 in. (0.6 - 0.9mm).
• Dimensions (HxWxD) 12.75 x9.75 x17.35 in. (375x250x440mm).
• Item Weight - 56 lbs.
• Flow Gage Included, Voltage 120.
