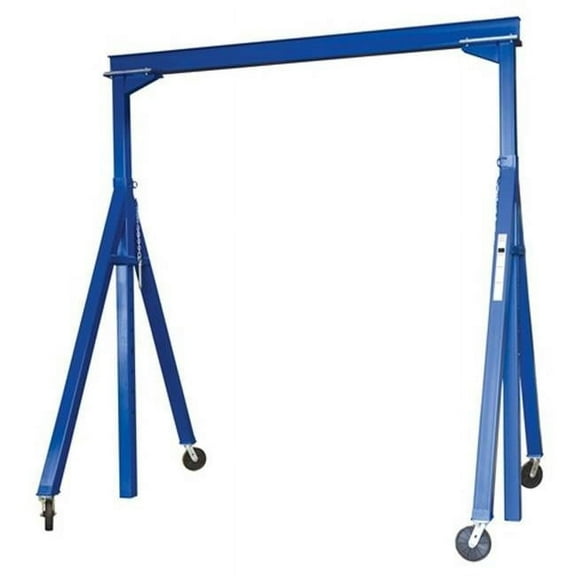

Vestil AHSN-6-10-12-VG 6000 lbs 10 x 12 ft. Steel Knock-Down Adjustable Height Gantry Crane with V-Groove Ductile Casters - Blue

The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. Height is adjustable in 6" increments. Do not move units while loaded. A painted blue finish protects the unit from. Designed for semi-permanent or permanent applications.

• Knockdown unit, assembly required
• Heavy-duty welded steel construction for long lasting use
• Beam length allows for use with items, both large and small
• All units comply with applicable CMAA and ANSI specifications

• Base Length (in.): 119.75
• Base Width (in.): 76.25
• Beam Height (in.): 8.125
• Beam Length (in.): 120
• Capacity (lbs): 6000
• Caster Diameter (in.): 8
• Caster Material: Ductile Steel
• Caster Width (in.): 3
• Casters Swivel with Brakes (Qty): 4
• Color: Blue
• Color / Finish: Blue
• Flange Width (in.): 4
• Frame Material: Steel
• Increment Height Adjustment (in.): 6
• Maximum Clearance (in.): 145
• Maximum Overall Height (in.): 153.44
• Minimum Clearance (in.): 91
• Number of Casters / Wheels: 4
• Size: 76.25" W x 120" L x 153.4375" H
• Uniform Capacity (lbs): 6000
• Usable Beam Length (in.): 89.75
• Wheel Diameter (in.): 8
• Wheel Material: Ductile Steel
• Wheel Width (in.): 3
