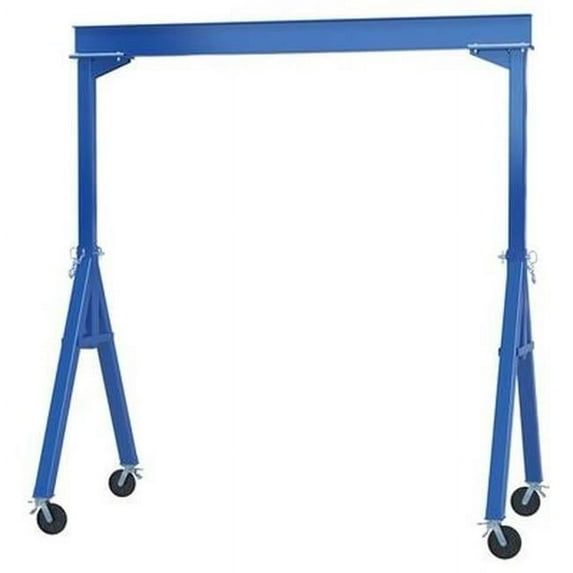

Vestil FHS-4-15-TLC 4000 lbs 15 ft. Steel Fixed Gantry Crane with Total Locking Glass Filled Nylon Casters - Blue

The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware. Unit comes standard with total locking casters. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.

• Sleek painted finish
• Heavy-duty welded steel construction for long lasting use
• Beam length allows for use with items, both large and small
• All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications

• Base Length (in.): 169.25
• Base Width (in.): 64.5
• Beam Height (in.): 8.125
• Beam Length (in.): 180
• Capacity (lbs): 4000
• Caster Diameter (in.): 8
• Caster Material: Glass Filled Nylon
• Caster Width (in.): 2
• Casters Swivel with Brakes(Qty): 4
• Color: Blue
• Color / Finish: Blue
• Flange Width (in.): 4
• Frame Material: Steel
• Maximum Clearance (in.): 120
• Maximum Overall Height (in.): 128.313
• Number of Casters / Wheels: 4
• Size: 64.5" W x 180" L x 128.3125" H
• Uniform Capacity (lbs.): 4000
• Usable Beam Length (in.): 149.75
• Wheel Diameter (in.): 8
• Wheel Material: Glass Filled Nylon
• Wheel Width (in.): 2
