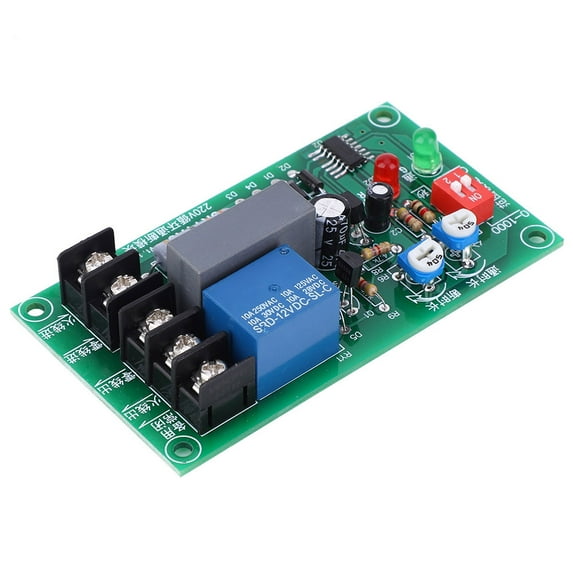

Versatile Relay Module, Infinite Cycle, Wide Voltage, Precise Timer Adjustment
(No ratings yet)
Key item features
- Suitable for reciprocating stroke control, or repeated on and off of equipment and product aging test.
- Wide voltage input, support AC 100-250V input.
- Low power consumption of the control board, less than 1W.
- Infinite cycle power on / off module, delay time can be adjusted separately.
- Active output, the output voltage is the same as the input voltage. Do not exceed 10A.
Specs
- Brandmaitudianzi
- Assembled product weight1 lb
Current price is USD$11.74
Price when purchased online
Out of stock
How do you want your item?
Out of stock
About this item
Product details
Product Description Infinite Cycle Relay Module ON OFF Relay AC 100-250V Adjustable Delay Timer Module
Specification:
Item Type: Relay Module
Voltage: AC 100-250V
Power Consumption: <1.0W
Output: Active output, the output voltage is the same as the input voltage. Do not exceed 10A.
Life: 100,000 operations
Wiring Terminal:
<--Live wire into the mains L line Live wire input
<--Neutral wire into the mains N line Neutral wire input
-->N line is connected to load N line, most appliances do not need to strictly distinguish LN line
-->The live wire is connected to the load L wire. Most appliances do not need to strictly distinguish the LN wire.
-->Normally closed end of the L wire output of the live wire normally closed terminal, generally need not be connected.
Instructions:
Time can be set under power on and power off
First determine the range and unit of the delay. The two DIP switches control the on-time and off-time at the same time. They are shared.
The first bit of the DIP switch is to set the adjustment range. The OFF position is 0-10 and the ON position is 0-1000.
The second bit of the DIP switch is to set the time unit. The OFF position is seconds and the ON position is minutes.
Package List:
1 x Relay Module
Note:
The position of the potentiometer can also be quickly located by measuring the voltage. The minimum adjustment of the central arm is 0V, and the highest position is 5V. For example, it needs to be adjusted to 20, that is, 20/100 x 5V = 1.0V; if it is to be adjusted to 30, then it is 30/100 x 5V = 1.5V.
Product Features Suitable for reciprocating stroke control, or repeated on and off of equipment and product aging test.Wide voltage input, support AC 100-250V input.Low power consumption of the control board, less than 1W.Infinite cycle power on / off module, delay time can be adjusted separately.Active output, the output voltage is the same as the input voltage. Do not exceed 10A. Technical Specifications Item TypeRelay ModuleVoltageAC 100-250VPower Consumption<1.0WOutputActive output, the output voltage is the same as the input voltage. Do not exceed 10A.Life100,000 operations
Specification:
Item Type: Relay Module
Voltage: AC 100-250V
Power Consumption: <1.0W
Output: Active output, the output voltage is the same as the input voltage. Do not exceed 10A.
Life: 100,000 operations
Wiring Terminal:
<--Live wire into the mains L line Live wire input
<--Neutral wire into the mains N line Neutral wire input
-->N line is connected to load N line, most appliances do not need to strictly distinguish LN line
-->The live wire is connected to the load L wire. Most appliances do not need to strictly distinguish the LN wire.
-->Normally closed end of the L wire output of the live wire normally closed terminal, generally need not be connected.
Instructions:
Time can be set under power on and power off
First determine the range and unit of the delay. The two DIP switches control the on-time and off-time at the same time. They are shared.
The first bit of the DIP switch is to set the adjustment range. The OFF position is 0-10 and the ON position is 0-1000.
The second bit of the DIP switch is to set the time unit. The OFF position is seconds and the ON position is minutes.
Package List:
1 x Relay Module
Note:
The position of the potentiometer can also be quickly located by measuring the voltage. The minimum adjustment of the central arm is 0V, and the highest position is 5V. For example, it needs to be adjusted to 20, that is, 20/100 x 5V = 1.0V; if it is to be adjusted to 30, then it is 30/100 x 5V = 1.5V.
Product Features Suitable for reciprocating stroke control, or repeated on and off of equipment and product aging test.Wide voltage input, support AC 100-250V input.Low power consumption of the control board, less than 1W.Infinite cycle power on / off module, delay time can be adjusted separately.Active output, the output voltage is the same as the input voltage. Do not exceed 10A. Technical Specifications Item TypeRelay ModuleVoltageAC 100-250VPower Consumption<1.0WOutputActive output, the output voltage is the same as the input voltage. Do not exceed 10A.Life100,000 operations
- Suitable for reciprocating stroke control, or repeated on and off of equipment and product aging test.
- Wide voltage input, support AC 100-250V input.
- Low power consumption of the control board, less than 1W.
- Infinite cycle power on / off module, delay time can be adjusted separately.
- Active output, the output voltage is the same as the input voltage. Do not exceed 10A.
