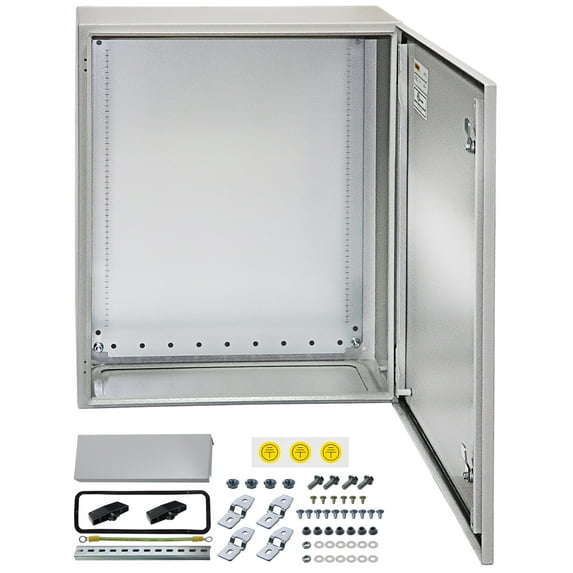

VEVOR Electrical Enclosure, 16'' x 12'' x 8'', UL Certified NEMA 4 Outdoor Enclosure, IP65 Waterproof & Dustproof Cold-Rolled Carbon Steel Hinged Junction Box for Outdoor Indoor Use, with Rain Hood

Hero image 0 of VEVOR Electrical Enclosure, 16'' x 12'' x 8'', UL Certified NEMA 4 Outdoor Enclosure, IP65 Waterproof & Dustproof Cold-Rolled Carbon Steel Hinged Junction Box for Outdoor Indoor Use, with Rain Hood, 0 of 9

Visit the VEVOR Store

VEVOR Electrical Enclosure, 16'' x 12'' x 8'', UL Certified NEMA 4 Outdoor Enclosure, IP65 Waterproof & Dustproof Cold-Rolled Carbon Steel Hinged Junction Box for Outdoor Indoor Use, with Rain Hood

Name: VEVOR Electrical Enclosure, 16'' x 12'' x 8'', UL Certified NEMA 4 Outdoor Enclosure, IP65 Waterproof & Dustproof Cold-Rolled Carbon Steel Hinged Junction Box for Outdoor Indoor Use, with Rain Hood
Brand: VEVOR
SKU: 1050016710
Availability: OutOfStock

(No ratings yet)

VEVOR Electrical Enclosure, 16'' x 12'' x 8'', UL Certified NEMA 4 Outdoor Enclosure, IP65 Waterproof & Dustproof Cold-Rolled Carbon Steel Hinged Junction Box for Outdoor Indoor Use, with Rain Hood VEVOR Electrical Enclosure 16 x 12 x 8 UL Certified NEMA 4 Outdoor Enclosure IP65 Waterproof Dustproof Cold Rolled Carbon Steel Hinged Junction Box O VEVOR Electrical Enclosure 20 x 20 x 6 UL Certified NEMA 4 Outdoor Enclosure IP65 Waterproof Dustproof Cold Rolled Carbon Steel Hinged Junction Box O

Key item features

Sturdy Steel Construction: Certification: UL 508A (CSA C22.2 No. 14-13.), TUV, CE. The electrical enclosure is meticulously crafted from cold-rolled carbon steel made by precise cutting and welding. It has stronger wear resistance and keeps your equipment well protected in harsh environments.
IP65 Waterproof Grade: The sealing strip of foam / Nylon has excellent sealing performance, and the NEMA outdoor enclosure provides an optimal protection level of IP65. A rain hood can be mounted on top of the electrical box, which avoids dirt and water from entering the box when the lid is opened.
Reinforced Lock & Hinge: The electrical outdoor enclosure features a high-quality lock core to increase security and lockability, making it less likely to fall off. The high-strength hinged lid is designed to ensure that the door is not easily damaged or broken due to squeezing.
Convenient Operation: The metal electrical enclosure box is equipped with a detachable galvanized mounting backplate for the effortless installation of electrical components. Complete accessories and four mounting holes on the back can quickly fix the NEMA enclosure on the wall.
Exquisitely Designed Details: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables. Ideal for various applications ranging from industrial equipment to home devices.

Specs

Dimensions
15.56 x 21.46 x 11.62 Inches
Material
Steel
Brand
VEVOR
Color
White
Weight
21.61 lb
Features
Waterproof

Price when purchased online

Not Available

How do you want your item?

Not available

Report an issue with this seller

About this item

Product details

Brand Introduction

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees,VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
1.Tough Quality Assurance
2.Incredibly Low Prices
3.Fast & Secure Delivery
4.30-Day Free Returns
5.24/7 Professional Customer Service

Product Description

Electrical Enclosure Box--Begin your security setups!

16 x 12 x 8 in & UL Certified & IP65 Grade

Premium Steel Material

The electrical junction box metal features cold-rolled carbon steel for high toughness and rust resistance. Finish: Powder Coating (Surface Pickling & Passivization), has superb mechanical properties.

IP65 Protection Level

The IP65 protection level ensures protection from dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures greater security on construction sites.

Hinge and Lock Security

The inner lock core is made of metal to avoid damage caused by excessive force or unauthorized opening. The reinforced hinge ensures that repeated opening and closing will not cause damage.

Effortless Installation

The detachable galvanized backplate is easy to install on PCB boards, terminals, or any other electrical components that need a fixed position. There are also four mounting holes on the back for easy wall mounting.

Thoughtful Design

The detachable outlet hole at the bottom is convenient for cable entry and exit; the ground wire in the box has been installed in advance, and the rounded corners are designed to avoid damage to the cables.

Extensive Application

A hinged electrical enclosure is suitable for indoor and outdoor applications, which require the protection of circuits and other electrical components.

Specifications

Model: ST4320

Color: RAL 7035 (White Gray)

Body Material: 0.05 in / 0.12 cm Cold-Rolled Carbon Steel

Inner Plate: 0.06 in / 0.15 cm Galvanized Plate

Finish: Powder Coating(Surface Pickling and Passivization)

Certification: TUV, CE, UL 508A (CSA C22.2 No. 14-13.)

Ratings: NEMA Type 4

Protection Grade: IP65, IK10

Construction: Continuously Welded

Ambient Temperature: -40 to 122℉ / -40 to 55°C

Gasket Material: Seamless Foam/ Nylon(washer or plug)

Outer Dimensions(H x W x D): 16 x 12 x 8 in / 40 x 30 x 20 cm

Inner Dimensions(H x W x D): 15.6 x 11.7 x 7 in / 39.7 x 29.7 x 17.7 cm

Galvanized Backplate Dimensions(H x W): 14.4 x 10 in / 36.5 x 25 cm

Mounting Hole Diameter(± 0.2 cm): 0.35 in / 0.9 cm

Net Weight: 21.61 lbs / 9.8 kg

Package Content

1 x Guide Rail

1 x Rain Hood

4 x Hanging Lug

1 x Gasket (For Enclosing Plate)

1 x Earth Wire

3 x Earth Label

2 x Key

8 x Plug

1 x Set of Accessories Package

1 x Set of Fasteners(Quantity Various on Type)

Sturdy Steel Construction: Certification: UL 508A (CSA C22.2 No. 14-13.), TUV, CE. The electrical enclosure is meticulously crafted from cold-rolled carbon steel made by precise cutting and welding. It has stronger wear resistance and keeps your equipment well protected in harsh environments.
IP65 Waterproof Grade: The sealing strip of foam / Nylon has excellent sealing performance, and the NEMA outdoor enclosure provides an optimal protection level of IP65. A rain hood can be mounted on top of the electrical box, which avoids dirt and water from entering the box when the lid is opened.
Reinforced Lock & Hinge: The electrical outdoor enclosure features a high-quality lock core to increase security and lockability, making it less likely to fall off. The high-strength hinged lid is designed to ensure that the door is not easily damaged or broken due to squeezing.
Convenient Operation: The metal electrical enclosure box is equipped with a detachable galvanized mounting backplate for the effortless installation of electrical components. Complete accessories and four mounting holes on the back can quickly fix the NEMA enclosure on the wall.
Exquisitely Designed Details: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables. Ideal for various applications ranging from industrial equipment to home devices.

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Assembled product height

11.62 in

Material

Steel

Brand

VEVOR

Accessories

1 x Guide Rail, 1 x Rain Hood, 4 x Hanging Lug, 1 x Gasket (For Enclosing Plate), 1 x Earth Wire, 3 x Earth Label, 2 x Key, 8 x Plug, 1 x Set of Accessories Package, 1 x Set of Fasteners(Quantity Various on Type)

Warranty

Warranty information

one year
