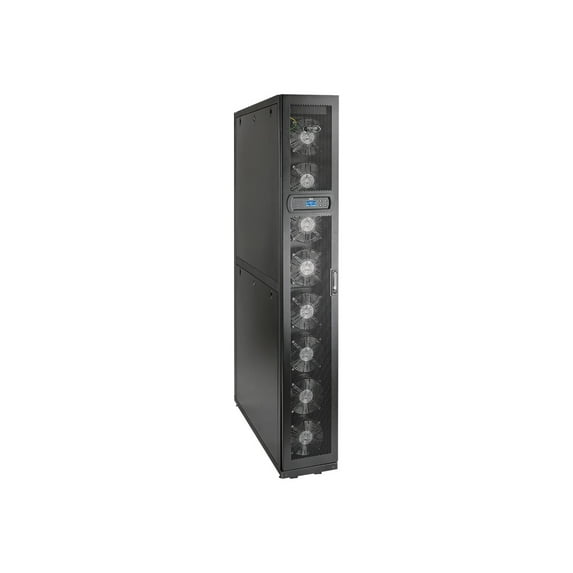

Tripp Lite TRL-SRCOOL60KCW 204K BTU 60kWH Chilled Water In-Row Cooling Unit Air Conditioner, Black

The Tripp Lite SRCOOL60KCW SmartRack In-Row Precision Server Rack Cooling System pulls unconditioned air through the rear of the unit, cools it using chilled water and releases cold air through the front. The row-based unit integrates into your data center environment adjacent to heat loads. Its high cooling efficiency lowers overall energy costs and lengthens the lifespan of your equipment. Its modular, in-row cabinet design easily facilitates expansion or movement on its built-in casters, allowing your increasing cooling needs to be reconfigured as your data center grows.

A built-in controller detects and manages data center temperatures, automatically adjusts cooling levels and supports two automatic control modes: intelligent control mode and PID control mode. The user-friendly LED and LCD interface provides at-a-glance setting, monitoring and access to system configuration and status.

An alarm system notifies you in case of abnormal conditions, including high condensation, high or low temperature or humidity, and full drain pan. The SRCOOL60KCW In-Row Rack Air Conditioner also monitors heat load temperature via remote sensors and informs you of any water leakage. Hot-swappable multi-speed fans provide variable CFM based on room conditions.

The doors and side panels lock securely to help prevent damage, tampering or theft. A preinstalled TLNETCARD web management accessory lets you monitor temperatures, receive alerts, review logs and control settings from anywhere 24/7 via Ethernet network.

• Accurately detects and manages temperature and output
• Provides 204,000 BTU (60 kW) of cooling capacity
• Locks securely to prevent unauthorized access
• User-friendly LCD indicators and control panel
• Supports optional remote management via Ethernet

• Capacity: 60kWH
• BTU: 204K
• Nominal Input Voltage(s) Supported: 208V AC, 230V AC
• Electrical Consumption: 2410W Max
• Maximum Input Amps: 12.6
• Input Connection Type: 5 Pole Terminal Block, 300V, 30A
• Input Frequency: 50/60 HzUser Interface, Alerts & Controls
• Front Panel LEDs: Multi-line LCD control panelPhysical
• Material of Construction: Steel/Aluminum
• Color: Black
• Storage Temperature Range: -15 deg C to 65 deg C
• Operating Elevation (ft.): 0 to 6561.8
• Operating Temperature: 4 deg C to 50 deg C
• Cooling Capacity: 204,000 BTU / 60 kW
• Operating Elevation (m): 0 to 2,000
• Operating Humidity Range: 5 to 95%
• Ambient Operation RH: 30% - 85%
• Chilled Water Flow Meter (LMP): 10-80 LPM +/- 4%; 81-150 LPM +/- 2%
• Range of CHW Inlet Temperature (Celsius): 5-22 deg C; 5KG/CM2
• Fans (Type/Quantity): 54V, 5800 RPM, 825 CFM, Brushless Fan, Hot-Swappable (8)
• Condensate Drain Pumps (L/HR): 5 L/HR at 5MM head, (15 M horizontal) at 60Hz; 5 L/HR at 4.8MM head, (15 M horizontal) at 50Hz
• Condensate Water Drains: Drain pump drain tube, length 1.7M, I.D. 3/8Inch, length cut out of cabinet, 1M
• Primary Fan Filters: Aluminum (washable), MERV 1, ASHRAE 52.2
• Communications I- SKU: TCNCD379285
