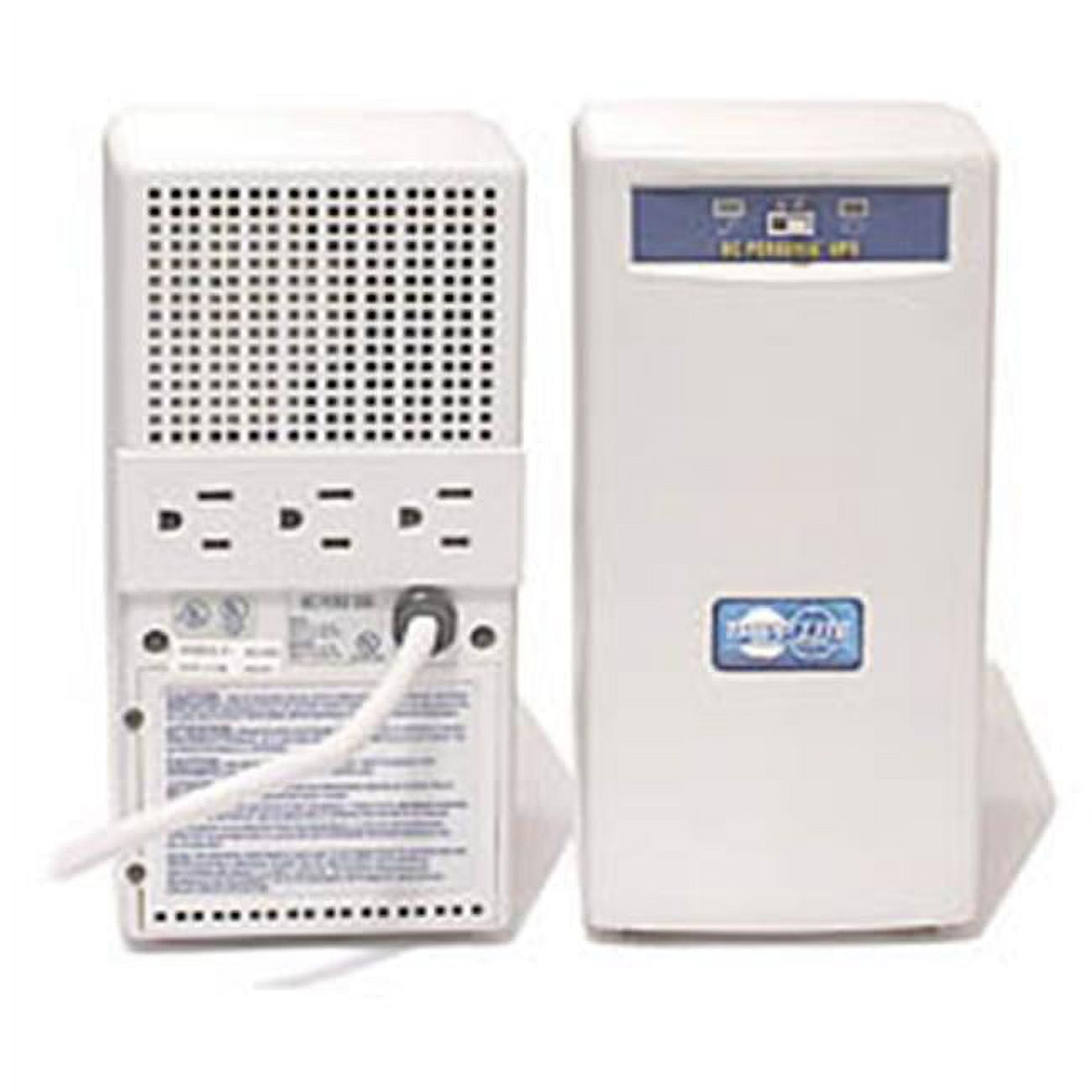

Tripp Lite BC Personal Series Standby 300 UPS System BC-PERS 300

Tripp Lite's BCPERS300 standby UPS system offers surge suppression and long lasting battery support for personal computers internetworking equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 15 minutes during power failures and brownouts so that connected equipment can be shutdown without data loss. Includes 3 UPS supported outlets. Built-in set of 2 front panel LEDs indicate line power and battery power status. 300VA/180 watt power handling ability supports entry-level PCs point-of-sale equipment small business phone systems and audio/video components. Offers 5 minutes battery runtime with a full load of 300VA and 17 minutes with a half load of 150VA. Supports user battery replacement via built-in access panel.

Package Includes: Standby UPS System.

Output Volt Amp Capacity (VA): 300.

Output Watt Capacity (watts): 180.

Nominal Output Voltage(s) Supported: 115V; 120V.

Frequency compatibility: 60 Hz.

Output voltage regulation (Battery mode): 115V (+/- 5%).

Built-in UPS output receptacles: 3 5-15R outlet(s).

Output AC waveform (AC mode): Sine wave.

Output AC waveform (battery mode): PWM sine wave.

Rated input current (at maximum load): 2.8A.

Nominal Input Voltage(s) Supported: 120V AC.

UPS input connection type: 5-15P.

UPS Input cord length: 6'.

Recommended Electrical Service: 15A 120V.

Full load runtime: 5 minutes(180w).

Half load runtime: 17 minutes (90w).

DC system voltage (VDC): 12.

Battery Access: Battery access door.

LED Indicators: 2 LEDs indicate line power battery power status.

Switches: 1 built-in slider switch for main power off/on control.

UPS AC suppression joule rating: 720.

UPS AC suppression response time: Instantaneous.

EMI / RFI AC noise suppression: Yes.

Primary form factor: Tower.

UPS housing material: PVC.

Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.

Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.

Relative Humidity 0 to 95% non-condensing.

AC mode BTU / hr. (full load): 18.9.

Battery mode BTU / hr. (full load): 143.6.

Transfer time: 2-4 milliseconds.

Low voltage transfer to battery power (setpoint): 99V (adjustable to 83V via potentiometer).

High voltage transfer to battery power (setpoint): 176 (adjustable to 147 via potentiometer).

Green and high efficiency features: Greater than 95% efficiency - GREEN UPS.

Dimensions: 8.5" H x 4.2" W x 5.5" D.- SKU: DBL13670
