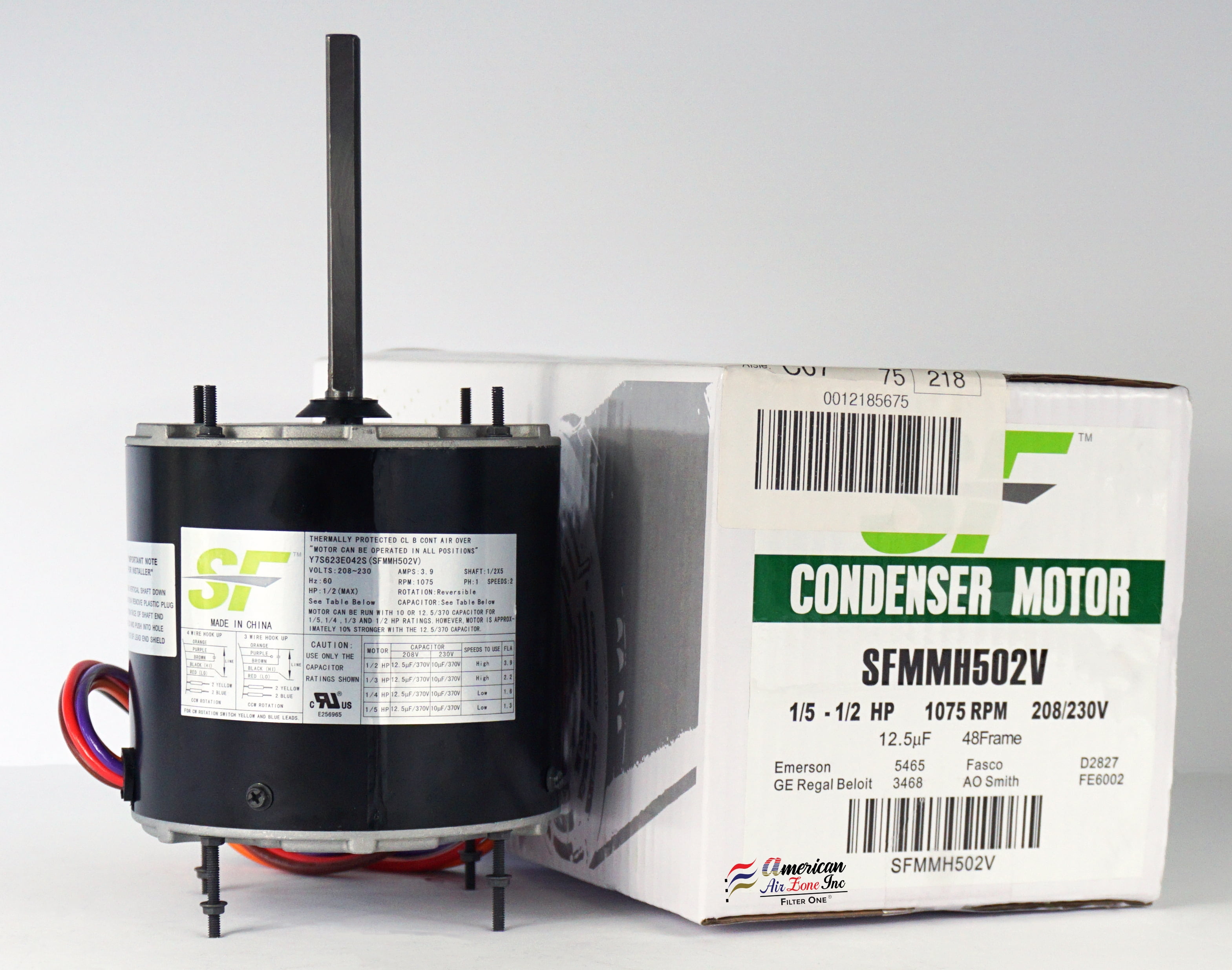

Trane SF - Multi HP - AC Condenser Motor - 1/5 ~1/2 HP - 208 / 230 Volts - 1075 RPM - 48Y Frame - SFMMH502V - Replaces Emerson 5465 - A O Smith FE6002 - GE 3468 - Fasco D2827

Description: The Trane Multi HP Condenser motors for air conditioner are well designed to meet the UL listed specifications for USA and Canadian markets. These Multi HP condenser motors are rigorously tested to perform well in field with quite operation and low power consumption. Built in thermally protected overload and mount in any direction with CW/CCW rotation. Technical Specifications: Trane Model # : SFMMH502V Horsepower : 1/5, 1/4, 1/3, 1/2 HP Voltage : 208~230V – 60Hz – 1 PH RPM : 1075 Speeds : 2 Rotation : Clockwise/Counterclockwise (Electrically reversible) Std Mounting : 48Y Frame size Shaft Size : 1/2 Inch diameter x 5 Inch Long, One side flat Capacitor Size : See table above (Not included) Overload : Built-in Thermally Overload Mounting Position : Any direction. Bearing Type : Sleeve bearing Max Temperature : 1400 F (600 C) Ambient. Motor Insulation : Class B. Country of Origin : Hongkong, China (Note: Must be installed by certified AC technician or under supervision of AC engineer. The safety instructions must be followed as per Trane AC motors installation guide. Capacitor not included.)
