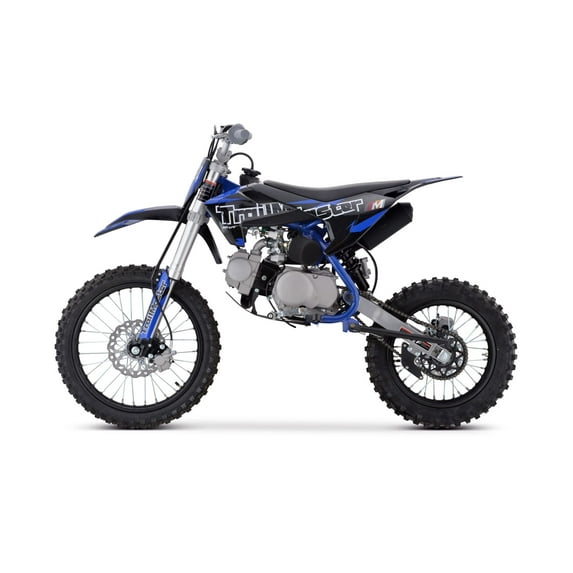

Trailmaster TM24 Dirt Bike 125cc 17 Inch Front Tire, 32.7 Inch seat Height semi-auto 4 Speed (Blue)

The TrailMaster dirt bike offers a superior frame design, improved suspension, and the industry longest 6 months/6,000 miles warranty on engine and transmission.


This is a complete line of dirt bikes for the whole family.  The 110cc TM 10, the TM 11, and the 125cc TM 27 and TM 29 feature top-quality workmanship.  From the 10"  to 17" front rims, to the thought put into the design, these bikes are clearly the top choice for 2022.

Featuring twin spar frames, front and rear disc brakes.  The mono-shock rear end and dual inverted front forks give these small bikes a full suspension.  The welded steel frame and twin-spar motor mounts give this bike a great balance and power to weight ratio. Easy-to-access motor mounts allow quick access for maintenance.

Electric start is a feature that is usually only available in larger much more expensive bikes.  Only the highest quality engine components are used in the air-cooled engine. Semi-automatic transmission teaches young riders to use the gears to accelerate and bring the bike to a safe stop.  Available in manual and semi-automatic transmissions.

Trailmaster has a proven track record for over two decades providing outstanding service to all of our customers.  The engineers at Trailamster have been working on these bikes for three years to get them to the market. They are here are they were worth the wait.

Main Features:
• Powerful 125cc engine
• Kick start 4-gear manual shift
• Large tires with 17” front and 14” back
• Inverted front shock
• 42’3 “ wheelbase and 32.7” seat high
• Hydraulic front and rear disc brakes
• Aluminum handlebar

Engine System:
Engine Type: ZM125cc, Single Cylinder, 4-Stroke, Air Cooled
Displacement: 124 ml
Max Power: 6.2（1±10%）/7000（1±5%） kw/r/min
Max Torque: 9.0(1±10%）/5000（1±5%） N.m/r/min
Compression Ratio: 9.6:1
Shift Type: N-1-2-3-4, Four-Gear
Start Type: Electric&Kick Start
Ignition: CDI
Transmission: Chain Drive; #428，14/41T
Size Data:
L x W x H: 64.2"X29.5"X41.5"
Wheel Base: 42.3"
Tires: FT: 70/100-17 - RR: 90/100-14
Seat Height: 32.7"
Ground Clearance: 13.6"
Fuel Capacity: 3.5 L
Min. Fuel Consumption:: ≤367g/kw.h
Max Range:: ≤10.5mile
Engine Oil #：: SJ5W一30
Frame/Suspension/Brake/Wheel system:
Frame: Cradle Type Steel Tube Frame
Front Fork: Inverted 45*48-700mm Forks, Non-Adjustable
Rear Shock: 10*275mm , Non-Adjustable
Swing-Arm: Steel Tube
Handle Bar: Aluminium Crossbar ,L=720mm; Dia=22mm
Wheels: Steel 1.6 x 17" / 1.85 x 14" Rims, Cast Hubs
Front Brake: Hydraulic Single Piston Caliper, 210mm Disc
Rear Brake: Hydraulic Single Piston Caliper, 190mm Disc
Exhaust: Stainless Steel Header Pipe, Hexagon Aluminum Silencer
Packing and Loading:
Packing Size: 54.5"X14.8"X29.7"
N.W/LBS: 134.5 LBS
G.W/LBS: 161 LBS
