ATV/UTV Electric Winch, Voltage Rating 12V DC, Motor HP 1.8 hp, Winch Gear Type 3-Stage Planetary, 1st Layer Load Capacity 4,500 lb, Full Load Amps 208 A, Clutch Release Yes, Free Spooling Clutch Type Rotating End Cap, Pulley Block No, Included Rope Dia. 1/4 in, Included Rope Length 50 ft, Mechanical Brake Yes, Overall Length 15 in, Overall Width 15 in, Overall Height 4 53/64 in, Series AXON 45-S, No Load Line Speed 16.3 fpm, Winch Gear Ratio 235:1, 1st Layer Line Speed 13.8 fpm
Features
- Promotion Restriction: Not eligible for promotion
- Motor HP: 1.8 hp

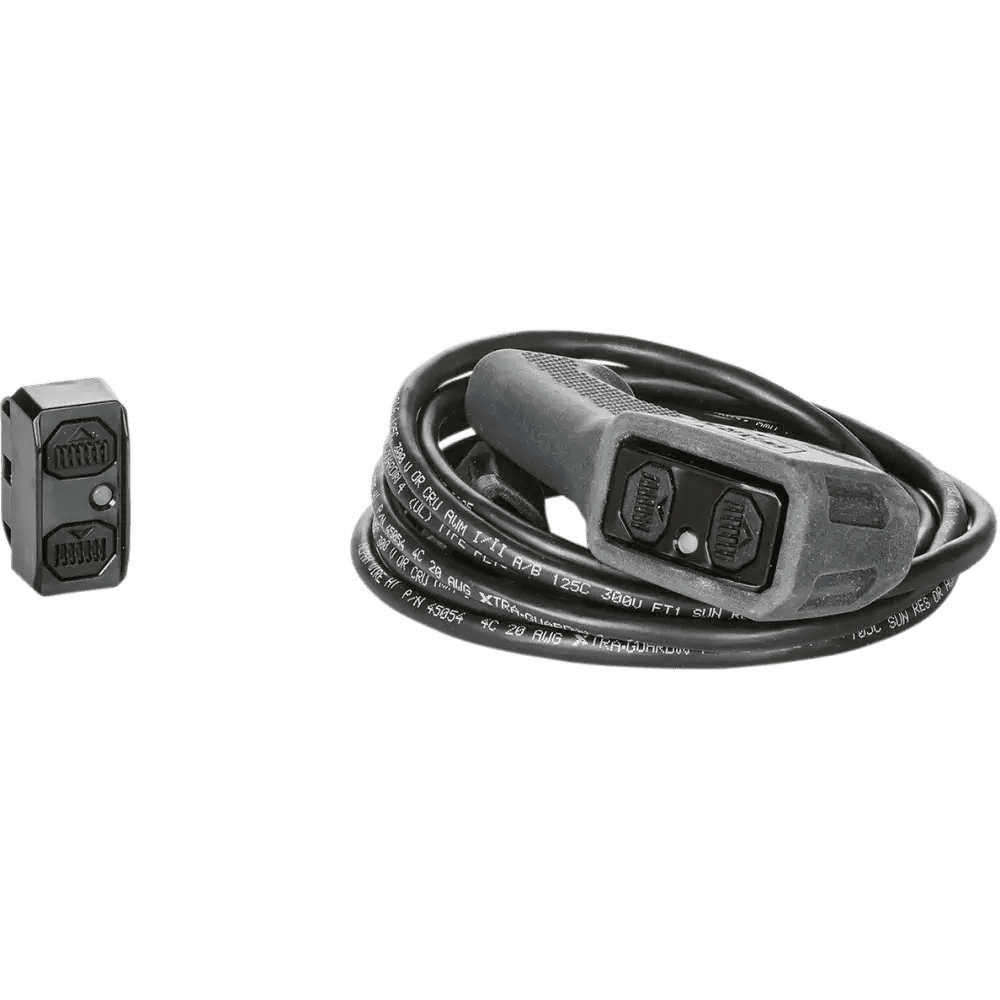

- Control Pendant Cord Length: 10 ft
- Winch Gear Ratio: 235:1
- Overall Length: 15 in
- Winch Type: Pulling
- Winch Gear Type: 3-Stage Planetary
- Rope Material: Synthetic
- Included Rope Length: 50 ft
- Included Rope Dia.: 1/4 in
- Pulley Block: No
- 1st Layer Load Capacity: 4,500 lb
- Overall Height: 4 53/64 in
- Overall Width: 15 in
- Series: AXON 45-S
- Free Spooling Clutch Type: Rotating End Cap
- Voltage Rating: 12V DC
- Mechanical Brake: Yes
- Full Load Amps: 208 A
- Drum Capacity for 1/4 In. Cable: 50 ft
- No Load Line Speed: 16.3 fpm
- Manufacturers Warranty Length: Limited Lifetime Electric 3 yr
- Electric Winch Item: ATV/UTV Electric Winch
- 1st Layer Line Speed: 13.8 fpm
- Item: ATV/UTV Electric Winch
- Clutch Release: Yes
"
