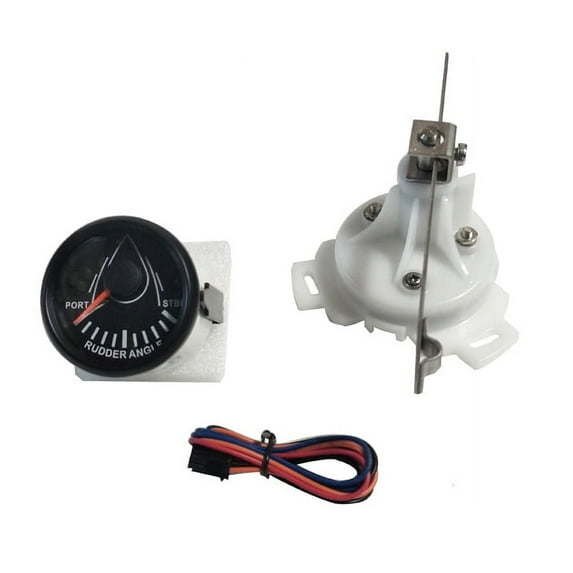

Techtongda Rudder Angle Indicator Rudder Angle Meter Rudder Angle Meter Rudder Sensor Marine Direction Indicator

Product description：
Rudder sensor is usually installed on the sternward rudder hore to collect signals by wire resistor.
These sensors are made of materials of the highest quality. - Made of stainless steel, durable in use.
Feature:
*316L stainless steel for long-term use even in acid-base,humid environment
*IP67 waterproof and dust-proof grade
*Stepper motors used for full range of steeping gauges,great feature with its less
power consumption, longer life,higher precision, etc.*With curved glass( with anti-fog function)
*There is a snap together with the harness connector, for best and firmly connected ,in order that the gauges could work even in strong vibration.
Specifications:
Gauge Specification:
-Bezel: Black 316L
-Color:Black&Silver
-Installation diameter:52mm（2.05"）
-Signal: 0-190Ω
-Range: PORT-STBD
-Working volt:9-32VDC
-Operating current: ≤60mA
-Operating temperature: -30~+75℃
-Storage temperature: -40~+85℃
-Size:6.5*6.5*8.5
Rudder Angle Sensor Specification:
- Material: Stainless Steel, Plastic
- Color: White
-Size: 13.2cm x 8.5cm x 6cm/5.2'' x 3.3'' x 2.4''
-Volt: 12V/24V
-Style: Plastic Face
-Connecting:2 Wires for 1 Gauge
Note:
Gauges can be used for engines/generating
units,ships,construction
machinery,agricultural machinery,automotive modification, etc
Item include:
1 pc of Angle Indicator Gauge
1 pc of Rudder Angle Sensor(053120)
