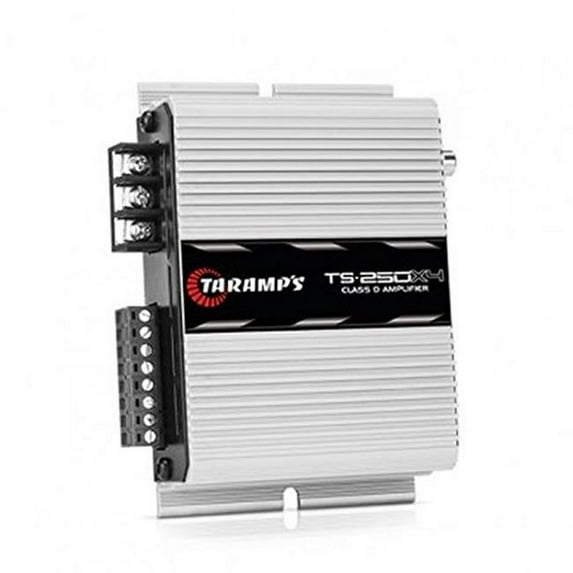

Taramps TS250X4 Digital Amplifier Module 4 Channel - 252W RMS

Pure technology added to a product of outstanding quality. Ideal for small installations or even to touch average highs in midrange systems. Lets do two bridges of 125 Watts RMS, ideal for playing sub woofers.

• Number of Channels - 04.
• Max Power 13.8 VDC - 2 OHMS - 252W RMS (63W RMS x 4).
• Power Max 13.8 VDC - 4 OHMS - 144W RMS (36W RMS x 4).
• Power Max in Bridge 13.8 VDC - 4 OHMS - 252W RMS (2 x 126W RMS).
• Input Sensitivity - 320mV (Vol - max.).
• Total Harmonic Distortion (THD) - 0.08%.
• S / N ratio ->90dB.
• Frequency Response (Full Range) - 10Hz to 30KHz (-3dB).
• Output Stage efficiency ->90%.
• Input Impedance - 22K OHMS.
• Protection System - Thermal and Short in output.
• Power Supply Minimum - 9VDC.
• Supply Voltage Max - 16VDC.
• Consumption at rest - 0.55 Amp.
• Maximal Musical 13,8VDC - 11Amp.
• Maximum Consumption Signal Sine (1kHz) 13,8VDC - 22 Amp.
