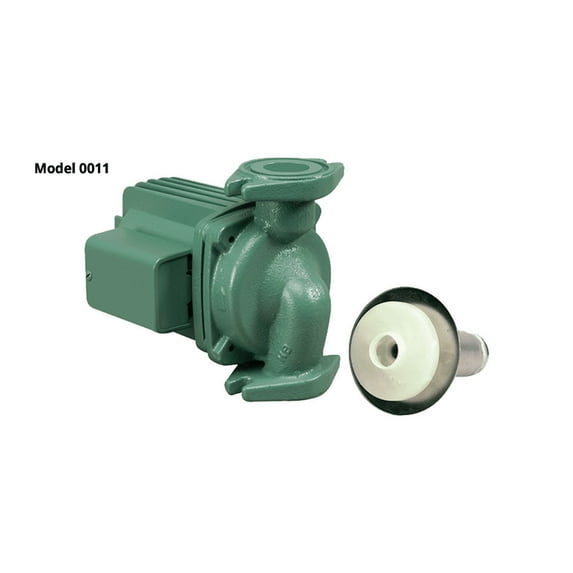

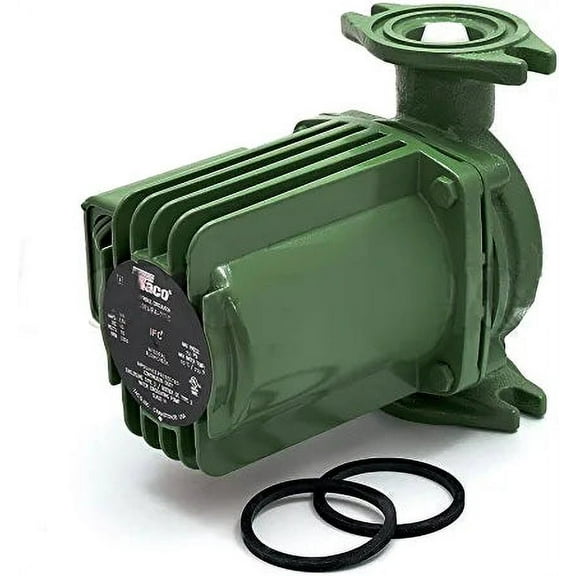

Taco 0011-F4 Cast Iron Cartridge Circulator - 0011 Series, 115 V

The Taco 0011 is specifically designed for high head / medium flow applications in large residential or light commercial closed loop hydronic heating and chilled water cooling systems. Ideal for high pressure drop boilers, fan coil units, heat exchangers, large radiant heating and heat recovery/geothermal systems. The 0011 should be used on open loop systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. Universal flange to flange dimensions and orientation allows the 0011 to easily replace other models. Compact, low power consumption design makes it ideal for high-efficiency jobs. Features: exclusive ACB anti-condensate baffle with ambient air flow - protects motor windings against condensate buildup, high velocity performance - compact design, quiet and efficient operation, direct drive - low power consumption, unique replaceable cartridge design - field serviceable, self lubricating, no mechanical seal, unmatched reliability, maintenance free, universal flange to flange dimensions, and cast iron construction. Motor Type: Permanent Split Capacitor Impedance Protected. Maximum Flow: 21 GPM. Maximum Head: 31'. Minimum Fluid Temperature: 40°F (4°C). Maximum Fluid Temperature: 230°F (110°C). Maximum Working Pressure: 150 PSI. Connection Sizes: 3/4", 1", 1-1/4", and 1-1/2" Flanged. Dimensions: 7-1/2" x 6-1/8" x 3-1/2" x 3-3/8" x 5-5/8" x 6-1/2".
