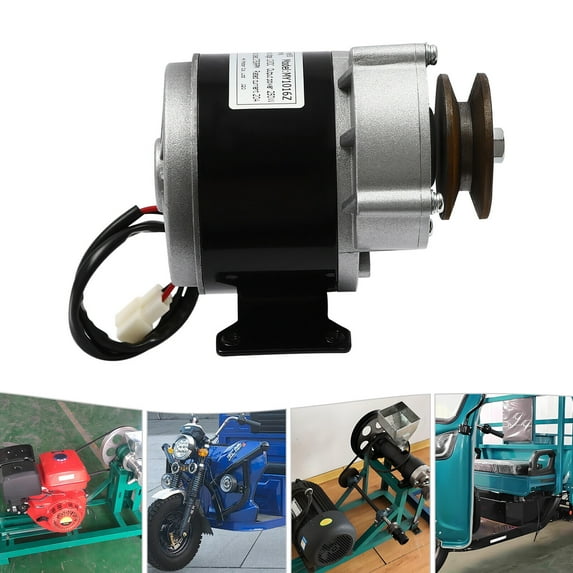

TFCFL DC Brushed Motor Electric Motor Gear Reduction Gear Motor w/ Belt Pulley 250W 12V/ 24V/ 36V

Description

An efficient machine can facilitate your outdoor work and increase your productivity. This high-quality gear motor can be used in many areas. It features copper wire coils to ensure smooth and energy-efficient operation. Its power is 250W, torque is 1N, and adjustable speed is 0-300rpm, which can meet your different working needs. It is a reliable motor you don't want to miss!

Key Features

Sturdy and Durable: Superb iron, copper, and spray molding process make the product have corrosion resistance, rust resistance, abrasion resistance, and oxidation resistance, which can ensure long service life.

Belt Pulley Design: The design of the belt pulley cleverly applies the principle of friction transmission to transfer the strong power generated by the high-speed operation of the motor to the downstream equipment through the flexible belt medium, which realizes the optimal deployment of speed and torque.

Good Performance: Our brushed DC motor runs at up to 250W and 2750rpm, which minimizes energy consumption, makes the machine run smoothly, saves power, and improves efficiency.

Stable Structure: The sealed structure, tightly connected components, and large base ensure smooth operation of the motor.

Ready to Use:  Without the need for complicated hole-punching or professional help, you just need to mount it on the working equipment and connect it to the power supply.

Easy to Move: The small size ( 4.33*4.33*5.04inch) and lightweight (5.51lbs) of this geared motor make it very convenient to change the working position.

Effortless Clean: With its simple construction and smooth surface, you can simply wipe off surface dust with a damp rag.

Guaranteed Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Copper Coil: We use a pure copper coil with low-temperature rise and high-temperature resistance, which can ensure stable output.

Smooth Edges: They not only enhance the aesthetics of the product but also improve safety during use.

Application

It is suitable for scooters, e-bikes, electric cars, tricycles, scooters, seeders, etc.

Specifications

Moder: MY1016Z

Material: Iron, Copper

Surface Treatment: Spray Molding

Style: Modern

Color: Silver, Black

Mount Type: Free Standing

Power Source: Corded Electric

Motor Type: Brushed DC Motor

Output Power: 250W

Raterd Speed: 2750rpm

Rated Torque: 1N

Speed Adjustment Range: 0-300rpm

Power Cord Length: 40cm/15.75in

Product Size: 11*11*12.8cm/4.33*4.33*5.04inch

Mounting Hole Distance: 9.5*4.2cm/3.74*1.65inch

Gross Weight: 3kg/6.61lbs

Net Weight: 2.5kg/5.51lbs

Package Size: 30*20*20cm/11.81*7.87*7.87in

JZ8VVM-000500ND

Rated Voltage: 12VDC

Rated Current: 20A

JZ8VVM-000400ND

Rated Voltage: 24VDC

Rated Current: 14A

JZ8VVM-000600ND

Voltage: 36V

Rated Current: 10A

Package Included

1*Gear Motor

Notes

To ensure the normal installation and use of the motor, please confirm the motor model and installation size before purchase.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
