Netgear ProSAFE XS712T 12-Port 10-Gigabit Ethernet Smart Managed Switch

Sorry, this item is out of stock

Browse similar items

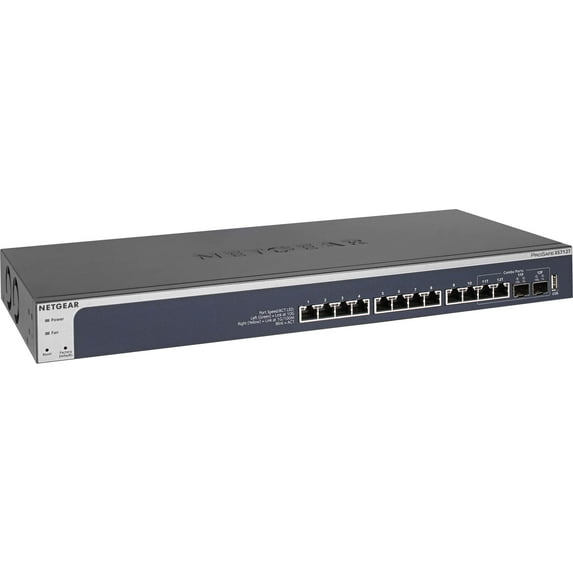

Netgear ProSAFE XS712T 12-Port 10-Gigabit Ethernet Smart Managed Switch
Netgear ProSAFE XS712T 12-Port 10-Gigabit Ethernet Smart Managed Switch
Hero image 0 of Netgear ProSAFE XS712T 12-Port 10-Gigabit Ethernet Smart Managed Switch, 0 of 4
NETGEAR

Netgear ProSAFE XS712T 12-Port 10-Gigabit Ethernet Smart Managed Switch

(No ratings yet)

Key item features

  • XS712T Highlights The XS712T provides comprehensive L2 features in order to meet your current and future needs on virtualization, converged network and mobility. Some of the main features include: Advanced VLAN features such as Protocol based VLAN and MAC-based VLAN Advanced QoS (Quality of Service) with L2-L4 awareness and 8 priority queues Static routing Private VLAN Dynamic VLAN assignment IGMP and MLD snooping Advanced Security IPv6 for management, QoS, and ACL
  • 10 Gigabit Transition with Base-T 10GBase-T, like other Base-T technologies, uses the standard RJ45 Ethernet jack It is backward compatible, auto-negotiating between higher and lower speeds - thereby not forcing an all-at-once network equipment upgrade Cat5/Cat5E cables are supported for Gigabit speeds; Cat6 twisted-pair copper cabling is the minimum requirement for 10 Gigabit up to 98.4' Cat6A or newer Cat7 cabling allow for up to 328.1' 10GBase-T connections
  • Designed as Core Switch for SMB Network 10G connection to 10G-capable servers and network storages L2+/Layer 3 Lite features make it a cost-effective core switch for SMB and virtualization environment Future-proof your network with 10G bandwidth, advanced traffic management and comprehensive IPv6 Support Static routing helps to route internal traffic for more efficient use of network resources IGMP and MLD snooping, providing advanced multicast filtering
  • Act as Aggregation Switch for Medium-sized Network 10G switch helps to resolve the congestion issue between network edge and core, which is caused by the broader adoption of Gigabit-to-the-desktop 10 Gigabit Ethernet provides better scalability than multiple Gigabit Ethernet links, resulting in a simplified and highly efficient network infrastructure Up to eight 10 Gigabit Ethernet links can be aggregated into a virtual 80-Gbps connection 10 Gigabit Ethernet reduces cabling complexity and uses existing cabling efficiently
  • Smart IT Easy to manage via web-Based Management GUI or Smart Control Center for multi-switch deployment Standard-based technology, ensuring interoperability with any standard-based devices in the existing network Dual firmware images, improving reliability and uptime to your network
  • Hardware Features 24 10GBase-T Connections: Support low-latency, line-rate 10G Copper "Base-T" technology with backward compatibility to Fast Ethernet and Gigabit Ethernet. Cost-effectively migrate current network to 10G capacity by utilizing the existing Cat6 RJ45 short connections (up to 300m) and Cat6A / Cat 7 connections up to 100m 4 (dedicated) SFP+ 10G Fiber Ports: Backward compatible to Gigabit fiber. Providing flexibility to uplink to 10G-capable core or aggregation switches that support fiber links USB Port: Quickly and conveniently upgrade or restore firmware or load configuration settings file Energy Efficient Ethernet (IEEE 802.3az): Maximum power reduction for ongoing operation cost savings
  • Ports 12 x 100/1000/10GBase-T RJ-45 copper ports 2 x Combo SFP+ 1000/10GBase-X fiber ports
  • Packet Buffer Memory 2 MB
  • Forwarding Mode Store-and-forward
  • Bandwidth 240 Gbps
  • Priority Queues 8
  • Priority Queuing Weighted Round Robin (WRR)
  • MAC Address Database Size 32 K
  • Addressing 48-bit MAC address
  • Multicast 1024 groups
  • Static Routes 32 x IPv4 static routes
  • Number of Routed VLANs 256 Number of ARP Cache Entries 1,024
  • DHCP Snooping 8K DHCP snooping bindings Access Control List (ACL) 100 shared for MAC, IP and IPv6 ACLs
  • Packet Forwarding Rate 238.0 Mfps or Mpps (64-byte packet size) Jumbo Frame Support Up to 9K packet size
  • Acoustic Noise Level @25C (dBA) 49.7 dBA MTBF 211,197 hours
  • L2 Services VLANS IEEE 802.1Q VLAN Tagging: Yes IP-based VLANs: Yes MAC-based VLANs: Yes Auto-Voice VLAN: Based on phone's OUI bytes (internal database, or user-maintained) or protocols (SIP, H323 and SCCP) Auto-Video VLAN: Yes Private VLAN: Yes Availability Broadcast Storm Control: Yes IEEE 802.3ad - LAGs (LACP): Yes IEEE 802.3x (full duplex and flow control): Yes IEEE 802.1D Spanning Tree Protocol: Yes IEEE 802.1w Rapid Spanning Tree Protocol: Yes IEEE 802.1s Multiple Spanning Tree Protocol: Yes Multicast Filtering IGMP Snooping (v1, v2 and v3): Yes MLD Snooping Support (v1 and v2): Yes IGMP Snooping Queries: Yes Block Unknown Multicast: Yes
  • L3 Routing DHCP DHCP Client: Yes DHCP Snooping: Yes Routing IPv4 Static Routing: 32 VLAN Routing: Yes Host ARP Table: 1024 Router Discovery (IRDP): Yes Number of IP Interfaces (port or VLAN): 15
  • Link Aggregation IEEE 802.3ad - LAGs: Yes Manual LAG: Yes # of LAGs / # of members in each LAG: LACP (8 LAGs with max 8 members in each LAG)
  • Network Monitoring and Discovery Services 802.1ab LLDP: Yes SNMP: v1, v2c, v3 RMON Group: 1,2,3,9 Yes
  • Network Security IEEE 802.1x: Yes - Guest VLAN: Yes - RADIUS-Based VLAN Assignment via .1x: Yes MAC-based .1x: 600 RADIUS Accounting: Yes Access Control Lists (ACLs): L2 / L3 / L4 - IP-based ACLs (IPv4 and IPv6): Yes - MAC-based ACLs: Yes - TCP/UPD-based ACLs: Yes MAC Lockdown: Yes MAC Lockdown by the Number of MACs: Yes IEEE 802.1x RADIUS Port Access Authentication: Yes Port-Based Security by Locked MAC Addresses: Yes Network Storm Protection, DoS: Yes Broadcast, Unicast, Multicast DoS Protection: Yes DoS Attacks Prevention: Yes
  • Quality of Service (QoS) Access Lists: Yes L2 MAC, L3 IP and L4 Port ACLs: Yes Rate Limiting: Ingress and egress (egress only on interface queue page) Port-Based QoS: Yes Support for IPv6 Fields: Yes DiffServ QoS: Yes IEEE 802.1p COS: Yes Destination MAC and IP: Yes IPv4 and v6 DSCP: Yes IPv4 and IPv6 ToS: Yes TCP/UDP-Based: Yes Weighted Round Robin (WRR): Yes Strict Priority Queue Technology: Yes Auto-VoIP: Yes, based on protocols (SIP, H323 and SCCP) or on OUI bytes (default database and user-based OUIs) in the phone source MAC address Auto-Video: Yes
  • IEEE Network Protocols ? IEEE 802.3 Ethernet ? IEEE 802.3ab 1000BASE-T ? IEEE 802.1Q VLAN Tagging ? IEEE 802.3x Full-Duplex Flow Control ? IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX ? IEEE 802.3an 10GBASE-T 10 Gbit/s Ethernet Over Copper Twisted Pair Cable ? IEEE 802.3ae 10-Gigabit Ethernet Over Fiber (10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-LX4) ? IEEE 802.3ad Trunking (LACP) ? IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) ? IEEE 802.1p Class of Service ? IEEE 802.1D Spanning Tree (STP) ? IEEE 802.1s Multiple Spanning Tree (MSTP) ? IEEE 802.1w Rapid Spanning Tree (RSTP) ? IEEE 802.1x RADIUS Network Access Control ? IEEE 802.3az Energy Efficient Ethernet (EEE) Compliant
  • Management Password Management: Yes Configurable Management VLAN: Yes Admin Access Control via RADIUS and TACACS+: Yes IPv6 Management: Yes SNTP Client Over UDP Port 123: Yes SNMP v1/v2c: Yes SNMP v3 with Multiple IP Addresses: Yes RMON group 1,2,3,9: Yes Port Mirroring: Yes Many-to-One Port Mirroring: 12 Web-Based Graphical User Interface (GUI): Yes Smart Control Center (SCC) for Multi-Switch Management: Yes Dual Software (firmware) Image: Yes Dual Configuration File: Yes Cable Test Utility: Yes SSL/HTTPS Web-Based Access (version): Yes(v3) TLS Web-Based Access (version): Yes (v1.0) File Transfers (uploads, downloads): TFTP / HTTP HTTP Upload/Download (firmware): Yes Syslog (RFC 3164): Yes
  • LEDs Per Port: Speed, Link, Activity Per Device: Power and Fan
  • Power Consumption Worst Case All Ports Used, Line-Rate Traffic: 98.2 W Energy Efficient Ethernet (EEE) IEEE 802.3az Compliant: Yes Auto-EEE Mode: Yes (deactivated by default) Power Back-Off: Drops power consumption by 15% to 20% when short copper cables are detected Fan: 2
  • Environmental Specifications Operating Temperature: 32 to 122°F / 0 to 50°C Storage Temperature: -40 to 158°F / -40 to 70°C Operating Humidity: 90% max. RH non-condensing Storage Humidity: 95% max. RH non-condensing Altitude: 10,000 ft / 3,000 m max.
  • Certifications Electromagnetic Emission and Immunity CE mark, commercial FCC Part 15 Class A, VCCI Class A Class A EN 55022 (CISPR 22) Class A Class A C-Tick EN 55024 CCC Safety CE mark, commercial CSA certified (CSA 22.2 #950) UL listed (UL 1950)/cUL IEC 950/EN 60950 CCC (China Compulsory Certificate)
  • Dimensions 17.3 x 10.1 x 1.7" / 440 x 257 x 43 mm
  • Weight 8.9 lb / 4.04 kg
