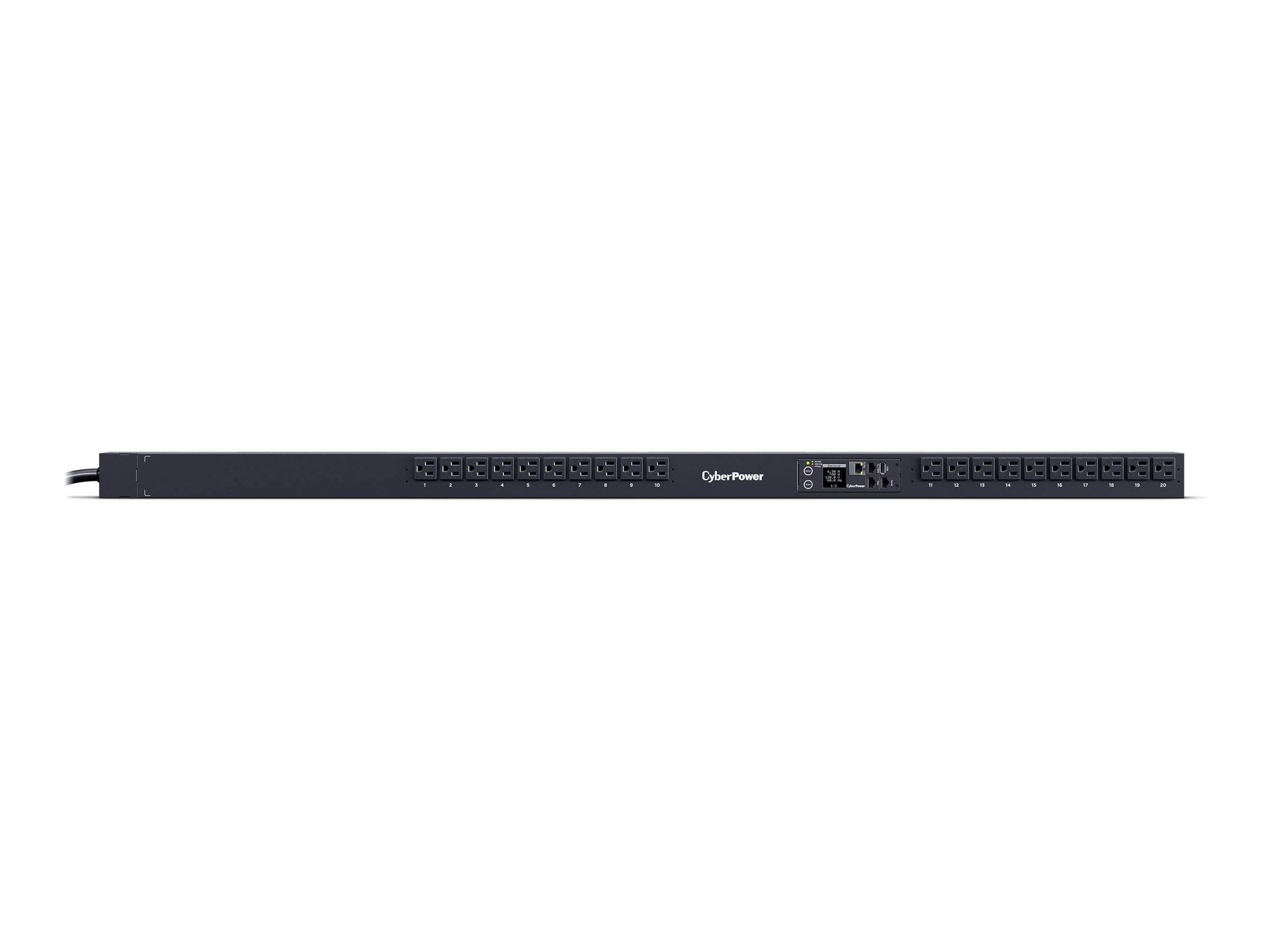

CyberPower PDU31116 Single Phase 100 - 120 VAC 15A Monitored PDU PDU31116

Technical Information

PDU Type: Monitored
Phase: Single Phase
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 20 x NEMA 5-15R
Locking Receptacles: Cord Retention Tray
Features: LED Status Indicator

Power Description

Output Voltage: 120 V AC
Output Voltage Range: 100 V AC - 120 V AC
Input Current: 15 A
Input Frequency: 60 Hz

Management

Management:

• SNMP
• TCP/IP
• UDP
• DHCP
• HTTP

Interfaces/Ports

Network (RJ-45): Yes

Physical Characteristics

Color Family: Black
Product Color: Black
Product Material: Metal
Mounting Orientation: Vertical
Mount Type: Rack-mountable, Wall-mountable
Form Factor: Rack
Rack Height: 0U
Cord Length: 10 ft
Height: 2.2"
Width: 1.9"
Depth: 53.1"
Weight (Approximate): 7.01 lb

Environmental Conditions

Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 140°F (60°C)
Minimum Storage Temperature: 5°F (-15°C)
Maximum Storage Temperature: 149°F (65°C)
Minimum Operating Humidity: 0%
Maximum Operating Humidity: 95%

Miscellaneous

Additional Information:

Physical Dimensions - (WxHxD) (cm) : 4.83 x 5.59 x 134.87 (cm)

Physical Dimensions - (WxHxD) (in) : 1.9 x 2.2 x 53.1 (in)

Physical Dimensions - (WxHxD) (mm) : 48 x 56 x 1349 (mm)

Weight (kg) : 3.18

Weight (lb) : 7.0

Shipping Dimensions - (WxHxD) (cm) : 11.43 x 18.03 x 157.99 (cm)

Shipping - Dimensions (WxHxD, in) : 4.5 x 7.1 x 62.2 (in)

Shipping - Dimensions (WxHxD, mm) : 114.3 x 180.34 x 1579.88 (mm)

Shipping - Weight (kg) : 3.58

Shipping - Weight (lb) : 7.9

Cord Length : 10 ft (3.0 m)

Input Frequency Range : 50 Hz - 60 Hz

Input Plug Type : NEMA 5-15P

Maximum Input Current : 15A (Derated to 12A)

Phase : Single Phase

Plug Style : Straight

Meter Readout : Kilowatts

Nominal Output Voltage : 100 - 120 VAC

Outlet Banks : 1

Outlets - Front : 20

Outlets - Rear : 0

Outlets - Total : 20

Outlet Type COMPUTED : 20 - NEMA 5-15R

Overload Protection : None

USB Charge Port : No

Hardware Connection Port : RJ45

LED Indicators : Load

SNMP / HTTP Remote Monitoring : TCP/IP, UDP, DHCP, SNMP, HTTP

Adjustable Mounting Brackets : 1 set

Color : Black

Cord Retention Tray/Cord Organizers : Yes

External Site Ground Pin : Yes

Form Factors Supported : Horizontal or Vertical Wallmount

Material of Construction : Metal

Rack Height : 0U

Style : Vertical Rackmount

Operating Elevation : 0 - 11482 ft (0 - 3500 m)

Operating Relative Humidity : 0 - 95 % (non-condensing)

Operating Temperature : 32 - 140 °F (0 - 60 °C)

Storage Elevation : 0 - 49212 ft (0 - 14999 m)

Storage Temperature : 5 - 149 °F (-15 - 65 °C)

Environmental : RoHS Compliant

Safety : UL 62368-1

Extended Warranty Option : WEXT5YR-PDU1A

Product Warranty : 3 Year Limited Warranty

Certifications & Standards:

UL 62368-1

Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
UL Listed: Yes

Warranty

Limited Warranty: 3 Year
