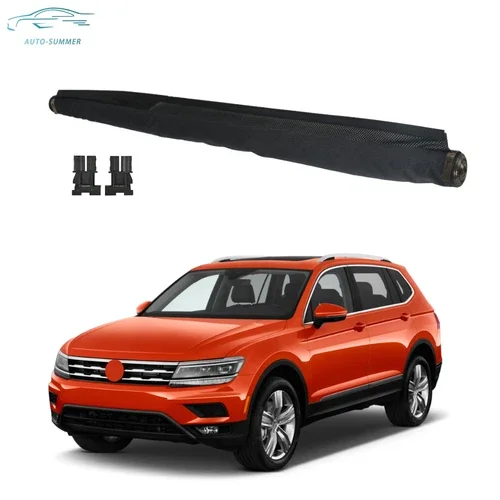

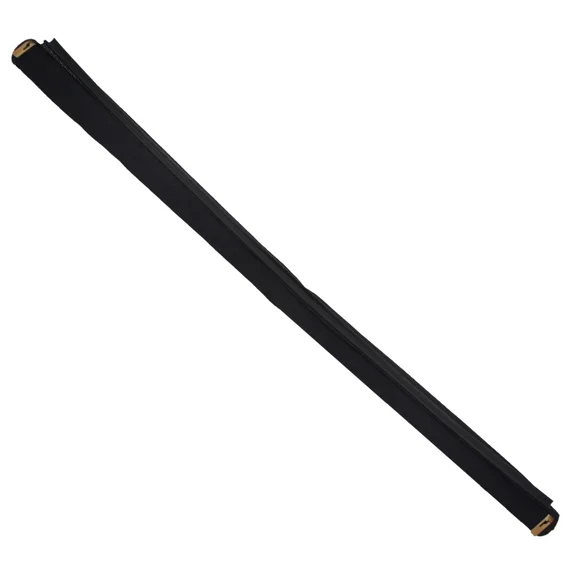

Sunroof Sunshade Cover Curtain For VW Tiguan 2010 2011-2016 Audi Q5 2010+ Gray

Specifications :
Color : Gray
Part number : 1K9877307
Installation : Directly replacement
Material : High Quality Cloth + Plastic

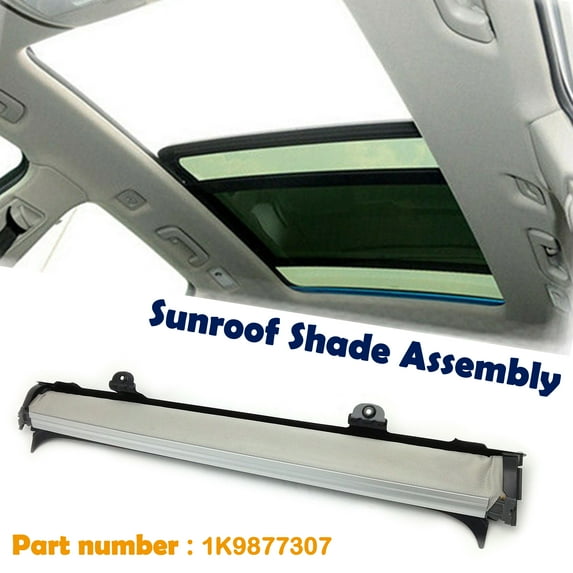

Package Including : 1 x Car Roof Sunroof Shade Assembly

Other Part Number :
1K9877307A,1K9877307B
1K9877307C,1K9877307D
1K98773076Z0,1K9877307B6Z0
1K9877307C6Z0,1K9877307D6Z0
1K9877307CQB9,1K9877307DQ9
1K9877307AQB9,1K9877307BQB9

Fitment :
For VW Golf Variant 2007-2014
For Skoda Superb 2008-2015
For Tiguan MK1 2008-2018
For Audi Q5 2009-2017
For Yeti 2010-2018
For Passat Variant 2011-2015
For Seat Alhambra 2011-2015
For Sharan 2011-2021
For Jetta 2013
For Leon ST 2013-2016

* This Is Aftermarket Replacement Item But Not Genuine.
* If you can not make sure the fitment, please offer 17 digits VIN to check it.
( We promise the OE part number and replace number is 100% correct. )
* If you don't offer the VIN to check it, we think you know the fitment 100%.
( And we will not pay for the return for don't fit. We just promise the item match the photos and description. )


Installation Step:
1. Jack up the front glass of the sunroof instead of opening it. There are two screws on the left and right sides between the front and rear glass.
2. Remove the interior ceiling. There are two screws on the left and right sides of the rear glass. (Figure 1) in the sealing strip, you can see it by breaking it slightly. Remove the rear glass and remove the two fixing screws on the back.
3. Pull the left and right coil springs of the damaged sunshade back evenly to the back with the naked blue button (Figure 2).
4. Remove the roller shutter, replace it with a new one, with two clips (Note: the two small metals inside are removed to fasten the coil spring), and insert the coil spring into the track (Figure 3)
5. Align the buckle with the metal buckle and the blue track buckle, and connect it into the roller shutter (Fig. 4)
6. Lock the roller shutter, close the roller shutter to the front, and lock the two screws in the roof sealing strip.
7. Install the glass, the interior, connect everything. Press to reset the sunroof and roller shutter.
