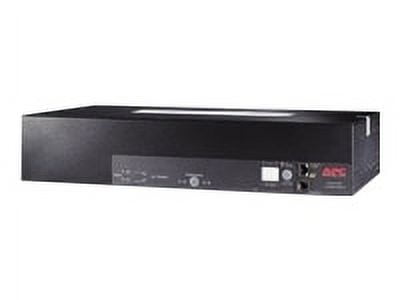

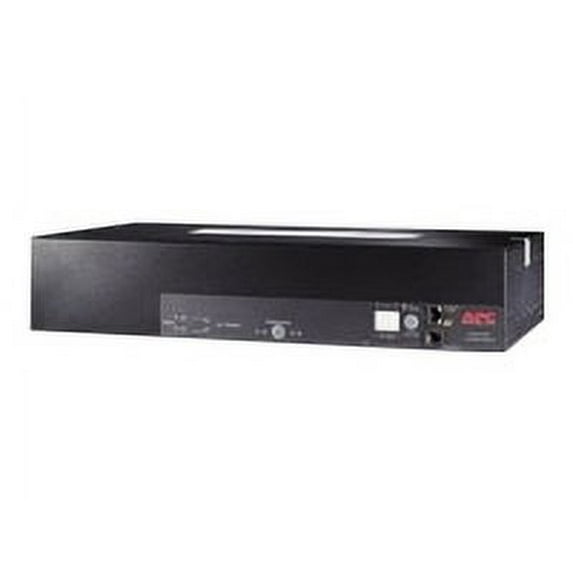

RACK ATS 120V 30A L5-30 IN 16X 5-20R OUT

APC Rack Automatic Transfer Switches (rack ATS) provide reliable, redundant rack mount power to single-corded equipment. The rack ATS has dual input power cords supplying power to the connected load. If the primary power source becomes unavailable, the rack ATS will seamlessly source power from the secondary source without interrupting critical loads. The Rack ATS has built-in network connectivity, which allows for remote management via Web, SNMP, or Telnet interfaces.

Device Type: Redundant switch - rack-mountable Color: Black Height (Rack Units): 2U Interfaces:

• 1 x management (RS-232) - RJ-11
• 1 x LAN - RJ-45

Service & Support: 2 years warranty Service & Support Details: Limited warranty - 2 years Compliant Standards: EN55022 Class A, RoHS Exemption 7b, FCC Part 15 A Rack Mounting Kit: Included Cables Included: 2 x power cable - integrated - 0.1 in Remote Management Protocol: SNMP 1, SNMP, Telnet, SNMP 3, HTTP, HTTPS, SSH Remote Management Interface: Ethernet, RS-232 Min Operating Temperature: 23 °F Max Operating Temperature: 113 °F Humidity Range Operating: 0 - 95% Input Voltage: AC 120 V Frequency Required: 50/60 Hz Output Voltage: AC 120 V Power Output Connectors Details: 16 x power NEMA 5-20 Max Electric Current: 30 A Input Connectors: 2 x power NEMA L5-30 Width: 17 in Depth: 9.3 in Height: 3.5 in Weight: 13.89 lbs Shipping Width: 24.1 in Shipping Depth: 14 in Shipping Height: 7.2 in Shipping Weight: 18.5 lbs Manufacturer Warranty: 2 years warranty Dimensions (WxDxH): 17 in x 9.3 in x 3.5 in Weight: 13.89 lbs Networking: Ethernet, RS-232 Device Type: Redundant switch - rack-mountable Remote Management Protocol: SNMP 1, SNMP, Telnet, SNMP 3, HTTP, HTTPS, SSH Input Voltage: AC 120 V Output Voltage: AC 120 V Rack Size: 2U Input Connectors: 2 x power NEMA L5-30 Output connectors: 16 x power NEMA 5-20
