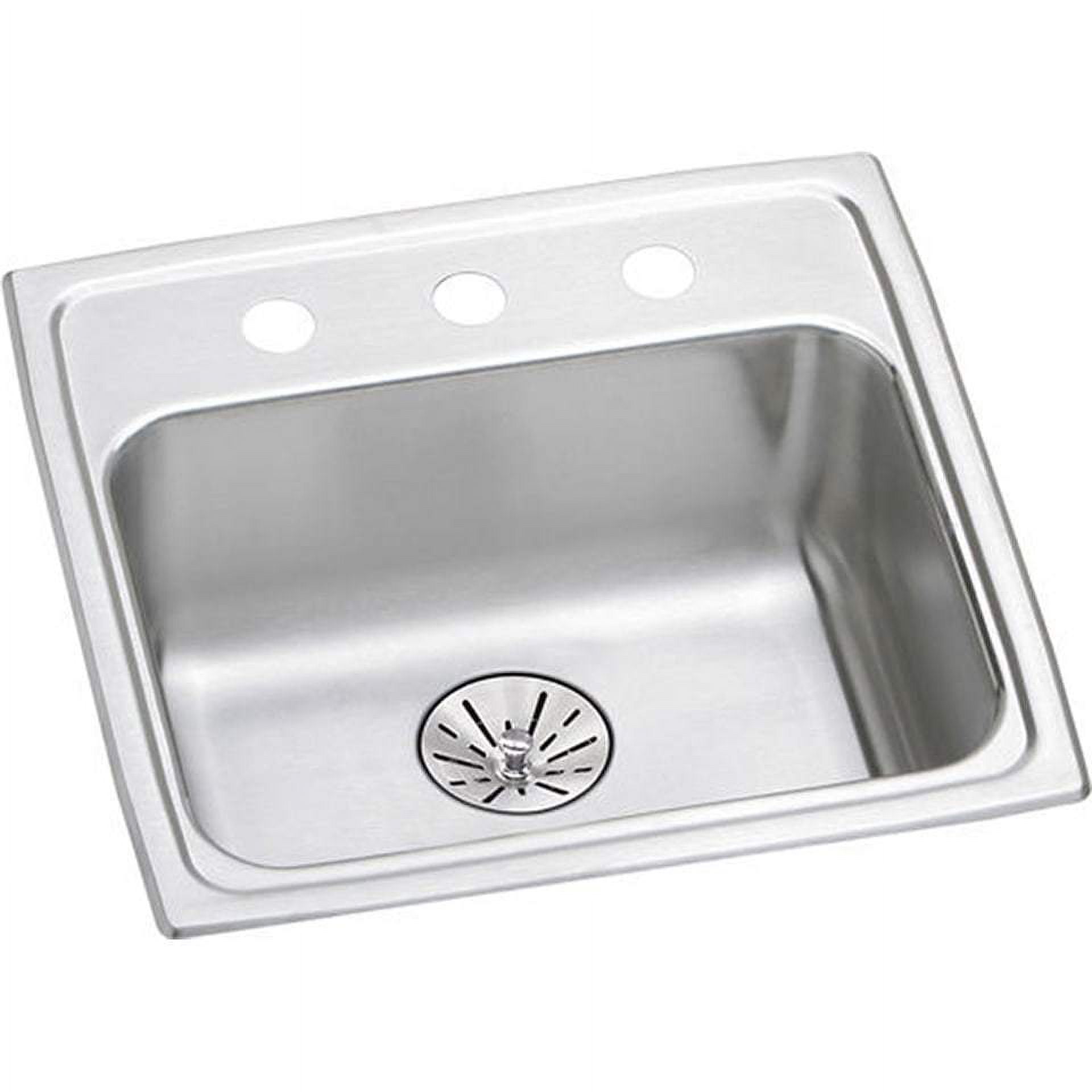

Elkay LRAD191865PD3 Lustertone Stainless Steel 19" x 18" x 6-1/2" Single Bowl Top Mount ADA Sink with Perfect Drain

An Elkay Lustertone sink looks as great on day 3,000 as it does on day one. Our signature finish is handcrafted with a rich, uniform grain that adds to the beauty of the sink. Light scratches, which occur with everyday use, naturally blend into the finish with time.

Elkay LRAD191865PD3 Product Overview

• ADA COMPLIANT: Product is ADA compliant when properly installed.
• PERFECT DRAIN: Edgeless drain eliminates the gap around the drain for a cleaner, more hygienic sink; food and gunk go right down the drain.
• LUSTERTONE FINISH: Durable, handcrafted finish looks as great on day 3,000 as on day one. Light scratches naturally blend into sink finish with time.
• TOP MOUNT INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
• SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks.
• QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
• U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
• OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
• CABINET SIZE: Minimum cabinet size for this sink is 24".
• INCLUDES: One LKPD1 Perfect Drain and strainer.

Elkay LRAD191865PD3 Product Specifications

• Classification: PERFECT DRAIN TOP MOUNT ADA
• Item Weight (lb.): 10.4
• Item Length (in.): 19
• Item Width (in.): 18
• Item Height (in.): 6.5
• Sink Depth (in.): 6.5
• Product Style: Traditional
• Material: Stainless Steel
• Finish: Lustertone
• Application: Healthcare, Residential/Multi-Family
• ADA Compliant: Yes
• Made in the USA: Yes
• Installation Type: Top Mount
• Mounting Hardware Included: Part # 64090012 included for countertops up to 3/4" (19mm) thick
• Template Included: No
• Recommended Installation Hardware: LK364, LK463
• Room Designation: Kitchen
• Number of Bowls: 1
• Bowl 1 Length (in.): 16
• Bowl 1 Width (in.): 11.5
• Bowl 1 Depth (in.): 6.375
• Drain Placement: Rear Center
• Sound Insulation: Bottom only pads
• Faucet Holes Configuration: 3
• Minimum Cabinet Size (in.): 24
• Countertop Cutout Dimensions: 18-3/8" x 17-3/8" (467mm x 441mm) with 1-1/2" (38mm) corner radius
• Additional Features: Perfect Drain
• Optional Soap Dispenser: LKGT1054
• Optional Sink Mate: LKSMHSL
• Gauge: 18
• Compliance Codes: ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, BUY AMERICAN ACT, ASME A112.18.2/CSA B125.2ASME A112.18.2/CSA B125.2
