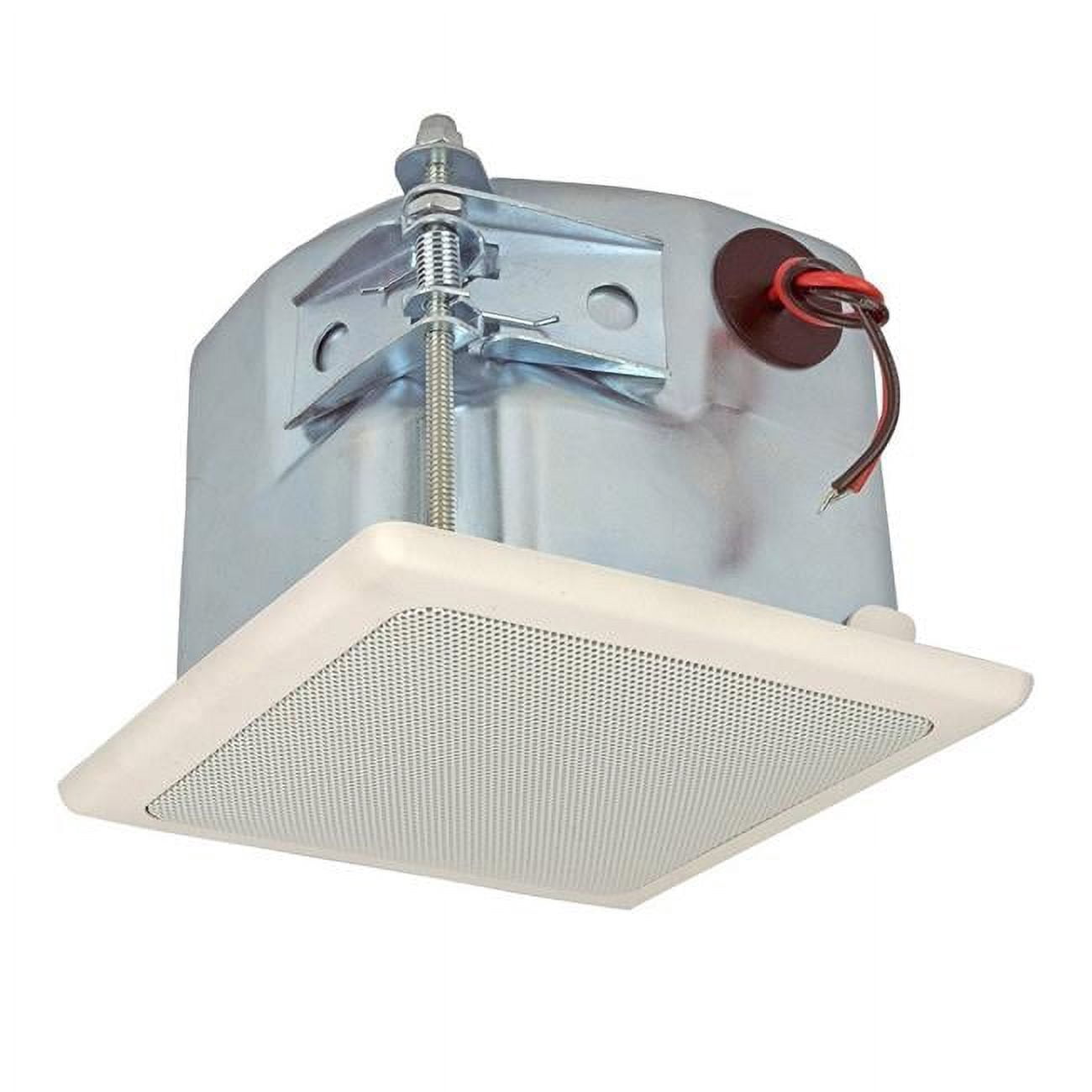

SoundTube IW31-EZ-WH 3 in. In-Wall Speaker, White

The IW31-EZ is a premium full-range 3-inch in-wall speaker for applications requiring 8 ohm or distributed audio solutions. The IW31-EZ incorporates a low profile grille with a total visible footprint of a 5 inch square and an integrated backcan and driver design for an ultra compact installations in wall plates. The speaker includes a rapid installation, blind-mount fixed-wing mounting mechanism with constant tension design affixing to wall thicknesses ranging from 0.1 inch (2.5 mm) to 1.5 inch (38.1 mm). The in-wall speaker includes a six-position tap switch with a transformer bypass position. Mounting hardware is included and features a fast and secure constant tension Speed Wing mounting system. All components in the IW31-EZ are completely weatherized for indoor and outdoor applications. Conduit connector, paint mask and wire nuts are included.

• Color: White
• System Type: 3-inch full-range, in-wall
• Impedance (nominal) 1: 8 ohm
• Sensitivity dB @ 2.83 V/1 m: 85.5 dB
• Sensitivity dB @ 1 W/1 m 2: 85.5 dB
• Frequency Response (- 3 dB) 3: 190 Hz - 14 kHz
• Frequency Response (-10 dB) 3: 115 Hz - 22 kHz
• Max. Program Power 4: 40 W
• Max. Continuous Power RMS 5: 20 W
• Max. Power SPL @ 1 m 6: 98.5 dB
• Coverage Angle (-6 dB @ 2 kHz): 180
• Coverage Angle (-6 dB @ 10 kHz): 45
• Coverage Angle (averaged from 2 to 10 kHz): 120
• Directivity Factor (Q): 4.5 (averaged 100Hz - 10kHz), 2.8 (2kHz)
• Directivity Index (DI) dB: 5.5 (averaged 100Hz - 10kHz), 4.4 (2kHz)
• Tap Selector (transformer accessory only): Six-position rotary switch or transformer bypass
• Transducer - Full-Range Driver: 76.1 mm (3.0 in.) Polypropylene driver with butyl rubber surround
• Low Frequency Voice Coil: 19.0 mm (0.75 in.)
• Enclosure Material: ABS bafe, steel backcan
• Grille: Corrosion-resistant, powder-coated aluminum
• Inputs: Hardwire lead
• Backcan Height: 88.9 mm (3.50 in.)
• Visible Height: 127.0 mm (5.00 in.)
• Visible Width: 127.0 mm (5.00 in.)
• Included Accessories: Conduit connector, paint mask and wire nuts
• Optional Accessories: Pre-construction bracket (AC-IW3-PCB), Theft-resistant stainless steel grille (AC-IW3-TRG)
• Regulatory - UL: UL 1480 (UEAY) and 2043 approved
• Regulatory - CE: Approved
• RoHS: Approved
• Weight: 3.75 lbs
