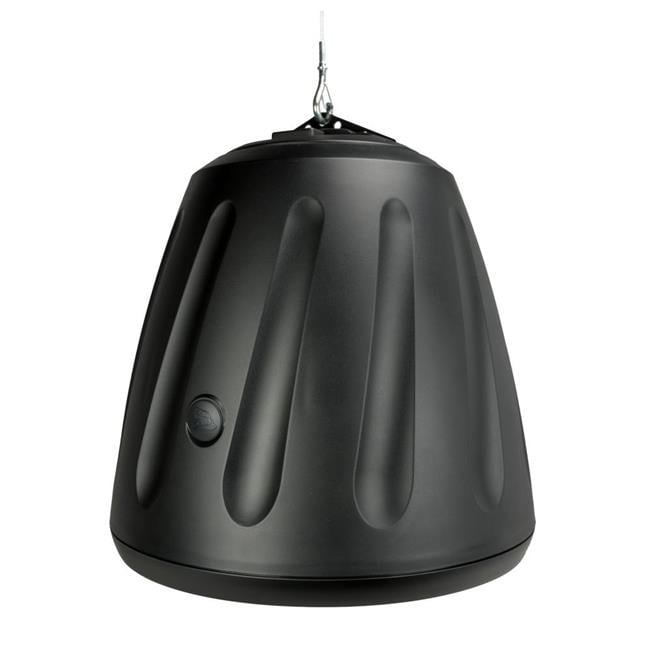

SoundTube HP890I-BK 8 in. 2-Way Hanging Speaker, Black

Patented BroadBeam Ring waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. One 8 inch treated fiber woofer and one 1.42 inch compression driver (1.0 inch exit) mounted to a proprietary cast-aluminum baffle and heat sink. High output and 120-watt transformer for the sound reinforcement and PA markets. Patented ZeroReflection enclosure technology for optimal sound reproduction and cabinet rigidity. Easy-access five-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Includes hanging hardware with galvanized steel cables and integrated SpeedClamp self-locking wire grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot. Average sensitivity of 94.0 dB offers high output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2239 (hanging cable) approved.

• Color: Black
• System Type: 8-inch, two-way, high-power, open-ceiling, ported (120-watt transformer for 25/70.7/100-volt or transformer bypass)
• Impedance (nominal): 8 ohms
• Sensitivity dB @ 2.83 V/1 m: 94.0 dB
• Sensitivity dB @ 1W/1M2: 94.0 dB
• Frequency Response ( - 3 dB): 93 Hz - 22 kHz
• Frequency Response ( - 10 dB): 65 Hz - 22 kHz
• Max. Program Power4: 250 W
• Max. Continuous Power RMS5: 125 W
• Max. Power SPL @ 1 m6: 115.0 dB
• Coverage Angle (-6 dB @ 2 kHz): 130
• Coverage Angle (-6 dB @ 10 kHz): 85
• Coverage Angle (averaged 2-10 kHz): 115
• Directivity Factor (Q): 4.2 (averaged 100 Hz - 10 kHz); 3.5 (2 kHz)
• Directivity Index (DI): 5.4 dB (averaged 100 Hz - 10 kHz); 5.4 dB (2 kHz)
• Tap Selector: Five-position rotary switch with transformer bypass position
• Transducer - High-Frequency Driver: 36 mm (1.42 in.) titanium compression driver with waveguide
• Transducer - Low-Frequency Driver: 203 mm (8.0 in.) treated paper cone, cloth surround
• Low-Frequency Voice Coil: 34.0 mm (1.34 in.)
• Crossover Frequency: 2.5 kHz
• Network Type: Low Pass: 12 dB per octave, 2nd order
• Network Type: High Pass: 12 dB per octave, 2nd order
• Enclosure Material: Injection molded ABS, glass ber reinforced
• Motorboard: Cast Aluminum
• Grille: Steel with powder-coat nish
• Inputs: Four-pin, 5.08 mm Euroblock for individual or daisy chain connection
• Height: 437.6 mm (17.2 in.)
• Diameter: 376.4 mm (14.8 in.)
• Included Accessories: Hanging hardware, Euroblock connector and terminal weather boot
• Optional Accessories: Surface-mount bracket (AC-RS-SM8)
• Regulatory - UL: UL 1480 (UEAY) and 2239 (hanging cable) approved
• Regulatory - CE: Approved
• RoHS: Approved
• Weight: 32.15 lbs
