Sound Level Data Logger PCE-428
(No ratings yet)
Key item features
- Measuring range: 25 ... 136 db(A)
- Accuracy: Class 2
- Frequency range: 20 Hz ... 12.5 kHz
- Standards:
GB/T 3785.1-2010
GB/T 3785.2-2010
IEC 60651:1979
IEC 60804:2000
IEC 61672-1:2013
ANSI S1.4-1983
ANSI S1.43-1997
- Frequency analysis:
1/1 Octave band filter: 20 Hz ... 8 kHz
1/3 Octave band filter: 20 Hz ... 12.5 kHz
- Microphone: 1/2"
- Microphone Class: 2
- Sensitivity: 40 mV/PA
- Frequency range: 20 Hz ... 12.5 kHz
- Connection: TNC
- Power supply: ICCP Standard
- Data-logging interval: 1 s ... 24 h (adjustable)
- Measuring functions: LXY (SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN
X = Frequency weighting: A, B, C, Z
Y = Time weighting: F, S, I
N = Statistics in %: 1 ... 99%
- Frequency weightings: A, B, C, Z
- Time weightings: Fast (F) 125ms, Slow (S) 1 sec, Impulse (I) 35 ms
- Inherent noise
Microphone: 20 db(A), 26 db(C), 31 db(Z)
Electronics: 14 db(A), 19 db(C), 24 db(Z)
- AD converter: 24 Bit
- AD Sample rate
Standard: 48 kHz
LN Mode: 20 ms
- Measuring display:
Numerical Bar graph
Graphical
- Display: 160 x 160 pixel LCD with backlight
- Memory: 4 GB Micro SD card
- Interface:
USB (Memory readable via software or directly as mass storage)
RS-232
- Fast, slow and impulse time weightings
- 1/1 octave band filter (optional 1/3 octave band filter upgrade)
- Adjustable data-recording interval from 1 s ... 24 h
- Real-time numerical and graphical LCD display
- Adjustable alarm
Specs
- Data logger typeSound Level Data Logger
- Measurement accuracyClass 2
- Rec. useIndustrial
- FeaturesAdjustable
- Power typeBattery
- Time period1 s ... 24 h
More seller options (1)
Starting from $1,650.00
Similar items you might like
Based on what customers bought
Humidity / Temperature Data Logger PCE-HT 71N $119.00
$11900current price $119.00Humidity / Temperature Data Logger PCE-HT 71N
USB Temperature Data Logger Temperature Recorder $10.90
$1090current price $10.90USB Temperature Data Logger Temperature Recorder
USB Temperature Data Logger Temperature & Humidity Recorder Alarm Thermometer Recorder Tester Report PDF 90 Days $11.13
$1113current price $11.13USB Temperature Data Logger Temperature & Humidity Recorder Alarm Thermometer Recorder Tester Report PDF 90 Days
Accucold DL22BWIFIKIT Wi-Fi Enabled Dual Channel Digital Data Logger - DDL $754.88
$75488current price $754.88Accucold DL22BWIFIKIT Wi-Fi Enabled Dual Channel Digital Data Logger - DDL
Triplett 4-Channel Type K Temperature Datalogger TMDL400 $368.78
$36878current price $368.78Triplett 4-Channel Type K Temperature Datalogger TMDL400
2PCS MINEW Smart Wireless -30 to 70℃ Temp Sensor Recorder Bluetooth Temperature and Humidity Data Logger $67.00
$6700current price $67.002PCS MINEW Smart Wireless -30 to 70℃ Temp Sensor Recorder Bluetooth Temperature and Humidity Data Logger
3X USB Temperature Humidity Data Logger Reusable RH TEMP Data Logger Recorder Meter with 12,000 Record Capacity $44.66
$4466current price $44.663X USB Temperature Humidity Data Logger Reusable RH TEMP Data Logger Recorder Meter with 12,000 Record Capacity
Environmental Meter PCE-AQD 10 $600.00
$60000current price $600.00Environmental Meter PCE-AQD 10
Hobo Data Logger,Temp/Humidity,Bluetooth MX1101 $180.99
$18099current price $180.99Hobo Data Logger,Temp/Humidity,Bluetooth MX1101
GE IC695PNS001-ABAA Fanuc RX3i Profinet Scanner Module $1,489.00
$1,48900current price $1,489.00GE IC695PNS001-ABAA Fanuc RX3i Profinet Scanner Module
Gilson Standard Crack Monitor $15.30
$1530current price $15.30Gilson Standard Crack Monitor
NEW CEM DT-173 High Accuracy Digital Sound Noise Level Data Logger Datalogger with USB Interface $119.95
$11995current price $119.95NEW CEM DT-173 High Accuracy Digital Sound Noise Level Data Logger Datalogger with USB Interface
Triplett TRMS Voltage and Current Datalogger ACDL100 $291.85
$29185current price $291.85Triplett TRMS Voltage and Current Datalogger ACDL100
Accucold DL11BWIFIKIT Wi-Fi Enabled Single Channel Digital Data Logger - DDL $510.00
$51000current price $510.00Accucold DL11BWIFIKIT Wi-Fi Enabled Single Channel Digital Data Logger - DDL
Elitech RCW-400A Temperature and Humidity Data Logger 3G Card up to 4 Sensors $199.00
$19900current price $199.00Elitech RCW-400A Temperature and Humidity Data Logger 3G Card up to 4 Sensors
Magnetometer PCE-EMF 40 $693.00
$69300current price $693.00Magnetometer PCE-EMF 40
Elitech LogEt 8 TE Reusable Temperature Data Logger -40℉~185℉ $19.00
6 optionsAvailable in additional 6 options$1900current price $19.00Elitech LogEt 8 TE Reusable Temperature Data Logger -40℉~185℉

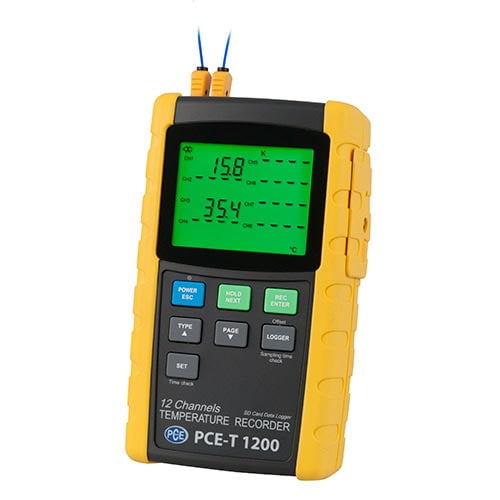

14 out of 5 Stars. 1 reviewsMulti-Channel Datalogging Temperature Meter PCE-T 1200 $1,319.00
$1,31900current price $1,319.00Multi-Channel Datalogging Temperature Meter PCE-T 1200
Accucold DLSA11CAL-12P Portable NIST Calibrated USB Temperature Loggers, Pack of 12 $1,383.54
$1,38354current price $1,383.54Accucold DLSA11CAL-12P Portable NIST Calibrated USB Temperature Loggers, Pack of 12
TOP! USB Temperature Data Logger & Humidity Recorder Alarm Thermometer Tester Report PDF 120 Days $10.73
$1073current price $10.73TOP! USB Temperature Data Logger & Humidity Recorder Alarm Thermometer Tester Report PDF 120 Days
About this item
Product details
PCE-428 is a class 2 data-logging sound level meter that meets IEC 60651:1979, IEC 60804:2000, IEC 61672-1:2013, ANSI S1.4-1983 and ANSI S1.43-1997 requirements. This portable high-accuracy sound level meter has a large easy-to-read illuminated LCD screen that displays the sound pressure level (SPL) numerically and graphically in real time. Thanks to octave band filtering, even the slightest difference in frequency is detected. The handheld meter also functions as a data logger, recording measurements at an adjustable interval from 1 s ... 24 h and storing the recorded measurement data to a micro SD card memory. The SD card can be removed from the meter and inserted into the SD card reader of a PC. Alternatively, the decibel meter can be connected directly to a PC via USB. The provided PC-compatible software allows for quick and easy data analysis. This device measures from 25 ... 136 db(A) at a frequency of 20 Hz ... 12.5 kHz. The meter features A, B, C and Z frequency weightings as well as fast, slow and impulse time weightings. The PCE-428 decibel meter is commonly used by professionals to ensure compliance with environmental noise regulations and workplace noise permissible exposure limits.
- Measuring range: 25 ... 136 db(A)
- Accuracy: Class 2
- Frequency range: 20 Hz ... 12.5 kHz
- Standards:
GB/T 3785.1-2010
GB/T 3785.2-2010
IEC 60651:1979
IEC 60804:2000
IEC 61672-1:2013
ANSI S1.4-1983
ANSI S1.43-1997
- Frequency analysis:
1/1 Octave band filter: 20 Hz ... 8 kHz
1/3 Octave band filter: 20 Hz ... 12.5 kHz
- Microphone: 1/2"
- Microphone Class: 2
- Sensitivity: 40 mV/PA
- Frequency range: 20 Hz ... 12.5 kHz
- Connection: TNC
- Power supply: ICCP Standard
- Data-logging interval: 1 s ... 24 h (adjustable)
- Measuring functions: LXY (SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN
X = Frequency weighting: A, B, C, Z
Y = Time weighting: F, S, I
N = Statistics in %: 1 ... 99%
- Frequency weightings: A, B, C, Z
- Time weightings: Fast (F) 125ms, Slow (S) 1 sec, Impulse (I) 35 ms
- Inherent noise
Microphone: 20 db(A), 26 db(C), 31 db(Z)
Electronics: 14 db(A), 19 db(C), 24 db(Z)
- AD converter: 24 Bit
- AD Sample rate
Standard: 48 kHz
LN Mode: 20 ms
- Measuring display:
Numerical Bar graph
Graphical
- Display: 160 x 160 pixel LCD with backlight
- Memory: 4 GB Micro SD card
- Interface:
USB (Memory readable via software or directly as mass storage)
RS-232
- Fast, slow and impulse time weightings
- 1/1 octave band filter (optional 1/3 octave band filter upgrade)
- Adjustable data-recording interval from 1 s ... 24 h
- Real-time numerical and graphical LCD display
- Adjustable alarm
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Data logger type
Sound Level Data Logger
Measurement accuracy
Class 2
Rec. use
Industrial
Features
Adjustable
Warranty
Warranty information
We warrant to you that for a period of two (2) years any Product manufactured by us and purchased from us through our Website will conform in all material respects with its description, be of reasonably satisfactory quality, and be reasonably fit for all the purposes for which products of that kind are commonly supplied, and for any Product not manufactured by us, then to the extent a manufacturer’s warranty exists with respect to such Product, we will pass such manufacturer’s warranty on to you.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Warnings
Ingestion Hazard
This product contains a battery. Death or serious injury can occur if ingested. A swallowed battery can cause Internal Chemical Burn in as little as 2 hours. Keep new and used batteries OUT OF REACH OF CHILDREN. Seek Immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.
