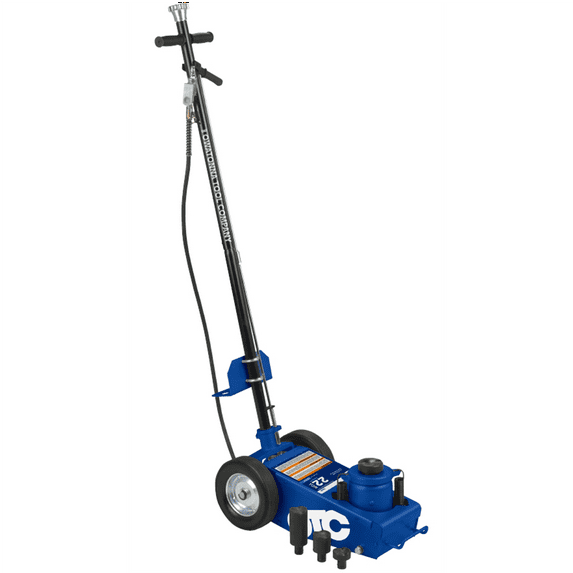

OTC Tools UA22 22 Ton Under Axle Jack

Features and Benefits:

• Meets All 5 ASME PASE-2019 Safety Standards for Service Jacks
• INCLUDES:
• 22 Ton Under Axle Service Jack
• 49-1/2" T Handle with position control rod and lever
• 3 Attachments for adjusting height application
• OTC Owners Manual for service jacks with training (operating) instruction
• SUPERSEDES P/N'S: OTC1788B
• FEATURES:
• Heavy-duty air and hydraulic performance for garages, equipment dealers, commercial service and more
• Welded hydraulic pump and cylinder construction provides increased strength and leak prevention
• Chrome plated ram for additional rust resistance
• Wiper seals protect hydraulic system from contaminants
• 3 Position handle makes it easy to position under vehicles with low overhangs
• Wide rugged base adds stability and strength
• Large rear wheels provide easy positioning and portability
• Dependable double spring return lowers piston ram quickly with no load
• Multi-lingual OTC Owners Manual for service jacks with training (operating) instruction
• PRODUCT SPECS:
• Capacity | 22-ton
• Air Pressure | 90 - 145 PSI
• Lifting range | 8.27" to 20-2/3” using longest saddle
• Reach | 69.87"
• Saddle | 3" dia., round with center notch. Includes 3 saddle lengths: 3/4"; 1-15/16"; 3-7/8"
• Max height using ?” saddle | 17-3/4”
• Max height using 1-15/16” saddle | 18-15/16”
• Max height using 3-7/8” saddle | 20-2/3”
• Frame height | 8.27"
• Handle length | 47.24" T handle with lowering lever and air-chuck hook
• Footprint | 22.63" x 11.73"
• Wheels | 2 fixed; 7.88" rubberized steel



OTC's UA22 22-Ton Under Axle Jack features air-assist operation and a self-retracting, spring return, with a long, 47-1/4 in. T-handle that lets you easily position the jack under vehicles with long overhangs. One pull of the handle activates the self-retracting, 4-1/2 in. stroke, 22-ton capacity ram, without having to crawl underneath the vehicle, while large rubber-tired steel wheels ensure maneuverability and movement on most types of terrain. 3 inch diameter, round saddle, with center notch and 3 saddle attachments - 3/4 in. for 17-3/4 in. lift, 1-15/16 in. for 18-15/16 in. lift, and 3-7/8 in. for 20-2/3 in. lift, allowing height adjustments based on vehicle being lifted. Welded hydraulic pump and cylinder construction provides increased strength and leak prevention. Chrome plated ram offers additional rust resistance. Wiper seals protect hydraulic system from contaminants. Specifications: 22-ton capacity, 4-1/2" cylinder stroke, 4-1/4" extended screw length, 90-145 PSI, 8.27" to 20-2/3" lifting range using longest saddle, 69.87" reach, 8.27" frame height, 11.73" x 22.63" footprint, weighs 100 lbs. Meets all 5 ASME PASE-2019 safety standards for service jacks..
