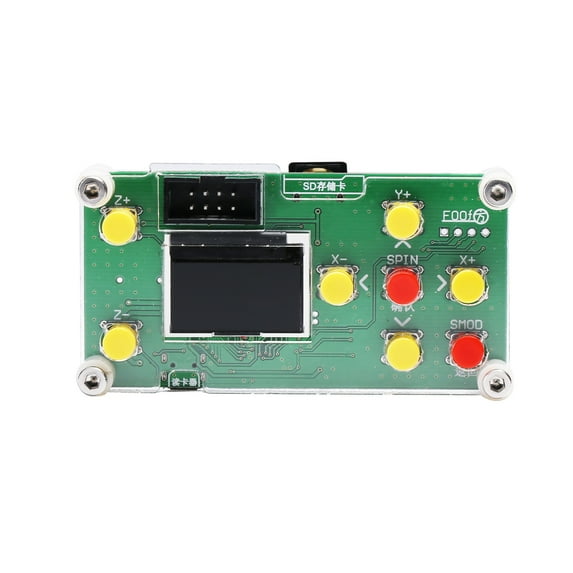

SainSmart Offline Controller Module for Genmitsu CNC Router

• Offline Control: With SainSmart offline controller module, you can control the CNC router without connecting to the computer. The CNC router can be placed wherever you want, such as garage and workshop.
• Manual Control: The location of XYZ Axis can be adjusted manually as engraving starting point. The spindle open or close mode also can be controlled manually by this module.
• Two-way Access The File: The engraving filed can be directly recognized once you put the file in the SD card. You can also connect the offline module to the computer by micro USB cable, then store the file directly.
• Easy to Use: All you have to do is connect the offline module to the GRBL controller board, then you can control the CNC router with this module.
• Compatible with SainSmart Genmitsu CNC Router: This offline module is perfectly compatible with SainSmart Genmitsu CNC router kit series.

SPECIFICATION

Connection: USB (USB-CH340)
Software: GRBL controller, Universal G-code Sender
Input voltage: 12-36V
Master chip: atmel 328P (arduino nano)
Stepper motor driver: A4988
Spindle drive chip: MOSFET (recommendation 12~36V, current: within 10A)
Spindle PWM speed: Support
Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)
Laser engraving: Support
Power Interface: 5.5-2.5mm DC interface

Package List

1 x Offline Controller Module
1 x FC 8P Cable

Manual:

https://s3.amazonaws.com/s3.image.smart/download/101-60-283/User_Manual.pdf
