Hero image 0 of SPECSTAR 5 Gallon Vacuum Chamber with Vacuum Chamber 3.5cfm, 0 of 7
SPECSTAR 5 Gallon Vacuum Chamber with Vacuum Chamber 3.5cfm
Key item features
- 3.5 CFM VACUUM PUMP - Powered by a 1/4 HP powerful copper motor, the 3.5 CFM single-stage vacuum pump can draw the system down to 5 Pa; The high-quality die-cast aluminum housing and the non-slip rubber base of the machine reduce friction and contribute to better performance; With a 1/4" SAE inlet fitting, an additional 1/4" Female to 1/2" ACME Male adapter, and a 5/16" SAE Female to 1/4" SAE Male adapter are for various situations. The 1/4" pagoda adapter can connect the wire hose
- 5 GALLON VACUUM CHAMBER - The vacuum chamber is constructed of 1mm high-grade 304 stainless steel for durability, pressure resistance, and corrosion resistance, allowing it to withstand temperatures up to 160°F; The chamber's acrylic lid, which is 0.79 inches thick, and pressure gauge make it easy to monitor the degassing process and make necessary adjustments quickly; The sealing gasket and silicone o-ring ensures an airtight seal, preventing air from entering the chamber during use; It can achieve a maximum vacuum of up to -29.9 inHg above sea level
- PRECISE VACUUM GAUGE - Silicone oil fill inhibits pointer flutter and prevents damage to the internal mechanics from vibration and pulsation for accurate vacuum measurement and readings in the chamber, allowing you to keep track of the entire vacuuming process effortlessly; The gauge is measured with a dual scale, ranging from -30 to 0 inHg or -1 to 0 bar; The display accuracy is +/- 2.5% over the entire gauge range; The valve’s air inlet and exhaust switches enable efficient airflow control and effortless vacuum degree adjustment; The small air filter on the end of the release valve effectively prevents dirt from entering the degassing material
- PRACTICAL ACCESSORIES - The vacuum chamber kit comes with a range of essential accessories; These include a square nonslip silicone pad to prevent items inside the chamber from sliding around for safe use; The high-quality silicone material is also very durable and can be used repeatedly without any deterioration; In addition, the kit also contains a 5 ft reinforced wire hose that can withstand complete negative vacuuming without deforming, ensuring a reliable connection between the chamber and pump; Finally, a 300 ml bottle of vacuum oil is included to help maintain the performance of the pump
- Wide Applications - The SPECSTAR professional degassing chamber kit comes with a 5-gallon chamber, a 3.5 CFM pump, a pressure gauge, and other necessary accessories to effortlessly and securely eliminate air or other gases from resin, epoxy, oil, and other solvents; This kit is commonly used for maintaining refrigeration, printing, vacuum packaging, and medical equipment
Specs
Size5 gal with Vacuum Chamber
MaterialStainless Steel
BrandSPECSTAR
Weight24.3 lbs
Price when purchased online
Not Available
How do you want your item?
Not available
About this item
Product details
SPECSTAR 3.5 CFM Air Vacuum Pump & 5 Gallons Vacuum Chamber Ki
Need a vacuum chamber kit? Try the SPECSTAR kit - it's safe and efficient. The 3.5 CFM vacuum pump is durable and the 5-gallon chamber creates a low-pressure environment for removing gases and getting bubble-free material.
Reinforced Wire Hose
Durable enough to withstand negative vacuum pressures without deformation.
Superior Material
Resistant pressure, abrasion corrosion, and chemical damage.
Liquid-filled Gauge
Silicone Oil-filled & Shock Absorption & Accurate Reading.
Powerful Motor
For long time high power operation.
Transparent Oil window
Observe oil levels to ensure timely fills for precise operation.
Specifications
Voltage: 110V/60Hz
Pumping Rate: 3.5 CFM
Ultimate Vacuum: 5 Pa
Motor Power: 1/4 HP
Intake Fitting: 1/4" SAE
Oil Capacity: 350 ml
Net Weight: 24.3 lbs.
Pump Size: 9.7×14.1×8.5 Inches
Chamber Size: 13×13×12.8 Inches
Package Content
3.5 CFM Vacuum Pump x 1
5 Gallon Chamber x 1
Vacuum Gauge Set x 1
300 ml Vacuum Pump Oil x 1
5 ft Steel Wire Hose x 1
1/4" SAE Female to 1/2" ACME Male adapter x 1
5/16" SAE Female to 1/4" SAE Male adapter x 1
- 3.5 CFM VACUUM PUMP - Powered by a 1/4 HP powerful copper motor, the 3.5 CFM single-stage vacuum pump can draw the system down to 5 Pa; The high-quality die-cast aluminum housing and the non-slip rubber base of the machine reduce friction and contribute to better performance; With a 1/4" SAE inlet fitting, an additional 1/4" Female to 1/2" ACME Male adapter, and a 5/16" SAE Female to 1/4" SAE Male adapter are for various situations. The 1/4" pagoda adapter can connect the wire hose
- 5 GALLON VACUUM CHAMBER - The vacuum chamber is constructed of 1mm high-grade 304 stainless steel for durability, pressure resistance, and corrosion resistance, allowing it to withstand temperatures up to 160°F; The chamber's acrylic lid, which is 0.79 inches thick, and pressure gauge make it easy to monitor the degassing process and make necessary adjustments quickly; The sealing gasket and silicone o-ring ensures an airtight seal, preventing air from entering the chamber during use; It can achieve a maximum vacuum of up to -29.9 inHg above sea level
- PRECISE VACUUM GAUGE - Silicone oil fill inhibits pointer flutter and prevents damage to the internal mechanics from vibration and pulsation for accurate vacuum measurement and readings in the chamber, allowing you to keep track of the entire vacuuming process effortlessly; The gauge is measured with a dual scale, ranging from -30 to 0 inHg or -1 to 0 bar; The display accuracy is +/- 2.5% over the entire gauge range; The valve’s air inlet and exhaust switches enable efficient airflow control and effortless vacuum degree adjustment; The small air filter on the end of the release valve effectively prevents dirt from entering the degassing material
- PRACTICAL ACCESSORIES - The vacuum chamber kit comes with a range of essential accessories; These include a square nonslip silicone pad to prevent items inside the chamber from sliding around for safe use; The high-quality silicone material is also very durable and can be used repeatedly without any deterioration; In addition, the kit also contains a 5 ft reinforced wire hose that can withstand complete negative vacuuming without deforming, ensuring a reliable connection between the chamber and pump; Finally, a 300 ml bottle of vacuum oil is included to help maintain the performance of the pump
- Wide Applications - The SPECSTAR professional degassing chamber kit comes with a 5-gallon chamber, a 3.5 CFM pump, a pressure gauge, and other necessary accessories to effortlessly and securely eliminate air or other gases from resin, epoxy, oil, and other solvents; This kit is commonly used for maintaining refrigeration, printing, vacuum packaging, and medical equipment
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Size
5 gal with Vacuum Chamber
Material
Stainless Steel
Brand
SPECSTAR
Weight
24.3 lbs
Warranty
Warranty information
One year limited warranty
Customer ratings & reviews
How item rating is calculated
Customer images
Sort by |
Showing 1-3 of 3 reviews
Dec 26, 2025
Marsha
Item details
Sold byVivo mallDelivered byWalmartSize: 3 gal with Vacuum Chamber
5 out of 5 stars review
Verified Purchase
Great buy!
Great gift for my husband forging knives needing a way to extract moisture from handle materials.
Helpful?67UIXTI2OYX15490255176
Mar 29, 2025
Dan
Item details
Sold byVivo mallDelivered byWalmartSize: 5 gal
4 out of 5 stars review
Verified Purchase
Good but not great
The vacuum pump works. In previous reviews about it smoking are false, it is just water vapor being released from the process of vacuum pressure. The chamber is very thin and flexes too much. It will eventually fatigue and crack or implode.
Helpful?67UIXTI2OYX15490255176
Mar 24, 2025
Cheyenne
Item details
Sold byVivo mallDelivered byWalmartSize: 5 gal
1 out of 5 stars review
Verified Purchase
Poor quality
First time use, got it to 15lb of pressure and the entire lid spiderweb cracked across. Will NOT buy again.
Helpful?67UIXTI2OYX15490255176
Similar items you might like
Based on what customers bought

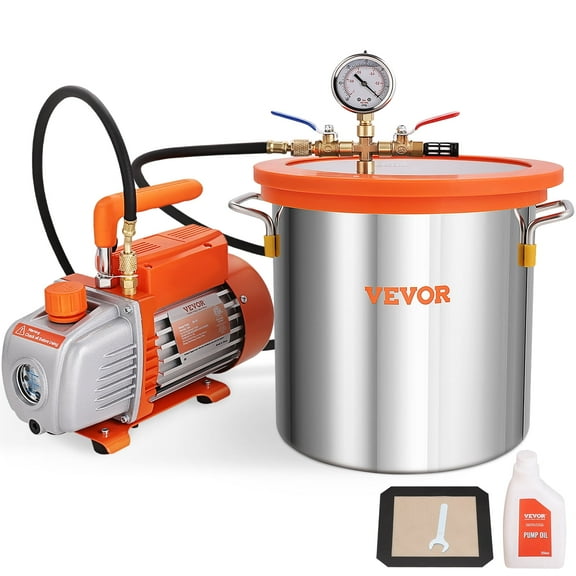

VEVOR 3 Gallon Vacuum Chamber and 3.5 CFM Pump Kit, Tempered Glass Lid Vacuum Degassing Chamber Kit, Single Stage Vacuum Pump with 250 ml Oil Bottle,for Stabilizing Wood, Degassing Silicones, Epoxies $143.99
Sponsored$14399current price $143.99VEVOR 3 Gallon Vacuum Chamber and 3.5 CFM Pump Kit, Tempered Glass Lid Vacuum Degassing Chamber Kit, Single Stage Vacuum Pump with 250 ml Oil Bottle,for Stabilizing Wood, Degassing Silicones, Epoxies

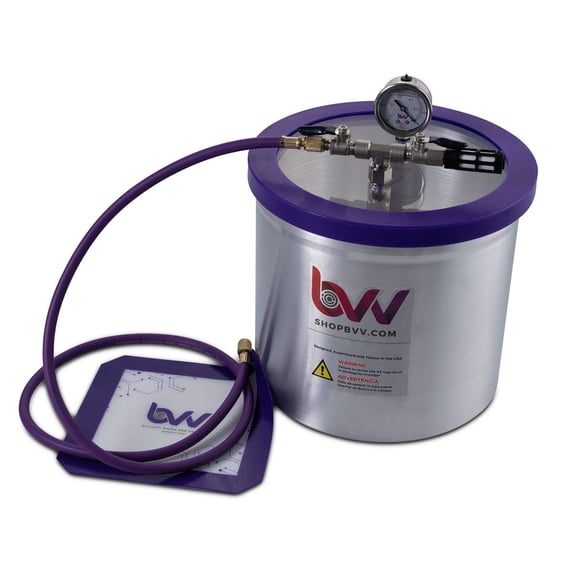

Shipping, arrives in 3+ daysBVV 3 Gallon Aluminum Vacuum Chamber $127.00
