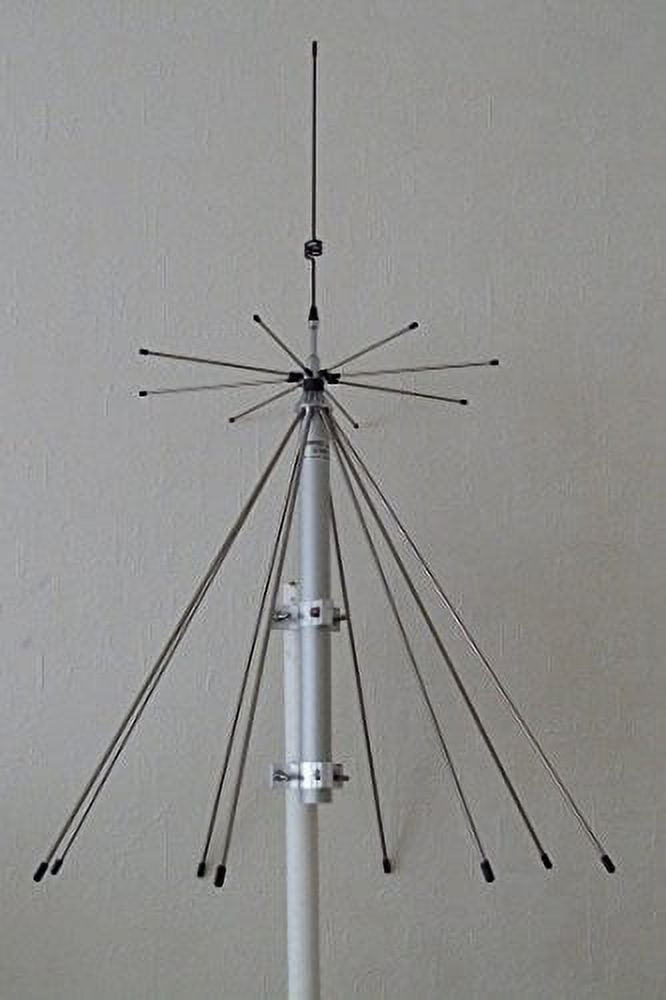

SIRIO SD 2000 100-2000 Mhz Discone Antenna (U or N Connector)

Sorry, this item is out of stock

Browse similar items
SIRIO SD 2000 100-2000 Mhz Discone Antenna (U or N Connector)
SIRIO SD 2000 100-2000 Mhz Discone Antenna (U or N Connector)
Hero image 0 of SIRIO SD 2000 100-2000 Mhz Discone Antenna (U or N Connector), 0 of 3
Sirio Antenna

SIRIO SD 2000 100-2000 Mhz Discone Antenna (U or N Connector)

(No ratings yet)

Key item features

  • Base station antenna, Omnidirectional
  • Unity-gain
  • Extremely wide-band suitable for scanner use
  • Transmission capability in several Ham bands
  • Perfect protection against the worst weather conditions
  • Stainless steel hardware and radials
  • Equipped with anodized aluminium bracket for an easy side mast installation
  • 17/7 PH stainless steel cylindrical whip

  • Type: discone
  • Frequency range: RX band: 100-2000 MHz TX band (@ SWR ≤2): 130-160, 215-440, 610-685, 870-960, 1070-1500, 1620-1800, 1860-2000 MHz
  • Impedance: 50Ω
  • Radiation (H-plane): 360° omnidirectional
  • Radiation (E-plane): frequency dependent, see the pattern
  • Radiation angle: frequency dependent, see the pattern
  • Polarization: linear vertical
  • Gain: 0 dBd - 2.15 dBi @ lowest frequency
  • Max. power (CW) (CW) @ 30°C: 200 Watts
  • Connector: N-female or U(SO-239), gold plated central pin

  • Materials: Stainless Steel, Chromed Brass, Nylon
  • Wind load / resistance: 44 N @ 150 Km/h / 150 Km/h
  • Wind surface: 0.04 m²
  • Height (approx.): 900 mm
  • Weight (approx.): 1020 gr
  • Cone Radial length (approx.): 550 mm
  • Mounting mast: Ø 25-54 mm
