SHZICMY 12" 300mm Acrylic Plastic PVC Bending Machine Heater Hot Heating Bender 110V

12" 300mm Acrylic Plastic PVC Bending Machine Heater Hot Heating Bender 110V

12" 30mm Acrylic Plastic PVC Bending Machine Heater Hot Heating Bender AC 110V


12"(300mm) Plastic Acrylic Bending Machine Heater Hand Held 60Hz Light Weight 12"(300mm) Plastic Acrylic Bending Machine

Specifications:

• Power Supply: 110V, 60 Hz


• Power: 300W


• Maximum Bending Width: 11.8" (300 mm)


• Heating Slot Width: 0.3" (8 mm)


• Heating Thickness: 0.04" - 0.24" (1 - 6 mm)


• Gross Weight: 2.8KG


• Package Dimensions (L x W x H): 87*20*12cm



Main uses:

Widely used in decoration engineering, sign making, display cabinets, aquarium wrapping, lighting LED channel letters, supermarket shelves, curtain walls, large light boxes, etc

Applicable materials: acrylic, organic board, PVC and various thermoplastic materials

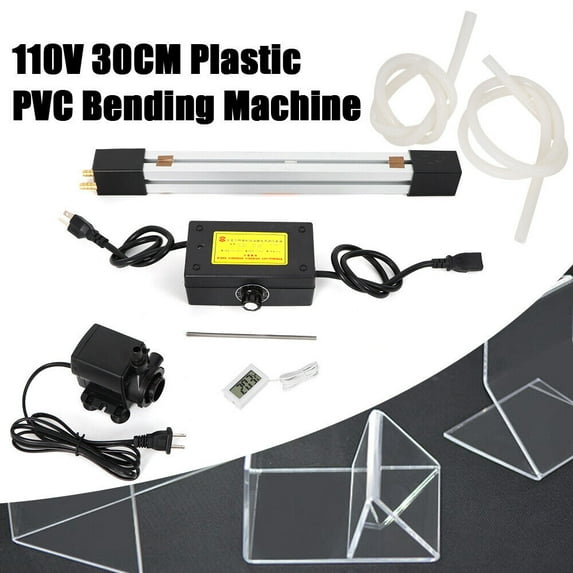

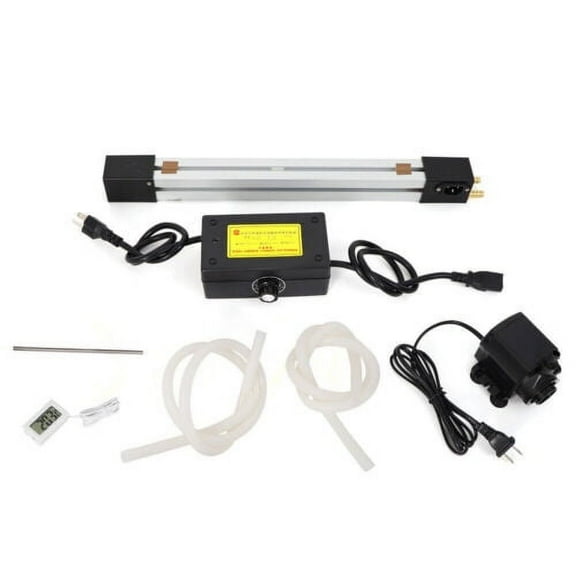

Packages:

• 1 X 12 Inch Acrylic PVC Bending Machine Heater


• 1 X Water Pump


• 2 X Silicone Tubes


• 1 X Temperature Controller


• 1 X Water Thermometer



Instructions:

• Keep a cooling tank (barrel) of more than 30 liters. First, connect the heater body and the submersible pump with a silicone hose. Place the submersible pump in the cooling bucket, connect the power supply of the pump, and wait for the water to circulate out. (Note: The water temperature of the machine will keep rising for a long time. Please replace the cold water clearly. The temperature of the circulating water should not drop abruptly. When the water temperature exceeds 50 degrees, the power supply of the heater should be cut off in time, and the circulating water should be replaced later.)


• Connect the thermostat with the hot bender and connect it to 220V power supply. Adjust the knob of the thermostat controller. The clockwise direction is to raise the temperature, and vice versa. When adjusting, it is not appropriate to rotate too fast in order to avoid damaging the thermostat. (Note: It is advisable to slowly adjust the thermostat to a reddish heat pipe. Excessive temperature will cause damage to the hot bending material and affect the service life of the hot bender).


• When the heating pipe reaches the required temperature, it can place the plastic sheet which needs to be hot-bended on the heating trough. When the sheet is soft enough to be folded manually, it can bend at various angles. According to the different materials, the setting time is different. Please determine the setting time according to the actual situation.



Safety precautions:

• Product heating produces high temperature, heating components should avoid contact with human skin.


• Please pay attention to the use of the environment,away from inflammable and explosive goods.


• If you don't use it for a long time, please cut off the power in time.
